Write Sitecore Experience Forms Log Entries to a Custom SQL Server Database Table

Not long after I wrote the code for my last post, I continued exploring ways of changing service classes in Sitecore Experience Forms.

One thing that popped out when continuing on this quest was Sitecore.ExperienceForms.Diagnostics.ILogger. I immediately thought “I just wrote code for retrieving Forms configuration settings from a SQL Server database table, why not create a new ILogger service class for storing log entries in a custom SQL table?”

Well, that’s what I did, and the code in this post captures how I went about doing that.

You might be asking “Mike, you know you can just use a SQL appender in log4net, right?”

Well, I certainly could have but what fun would that have been?

Anyways, let’s get started.

We first need a class that represents a log entry. I created the following POCO class to serve that purpose:

using System;

namespace Sandbox.Foundation.Forms.Models.Logging
{
	public class LogEntry
	{
		public Exception Exception { get; set; }

		public string LogEntryType { get; set; }

		public string LogMessage { get; set; }

		public string Message { get; set; }

		public object Owner { get; set; }

		public DateTime CreatedDate { get; set; }
	}
}

Since I hate calling the “new” keyword when creating new instances of classes, I chose to create a factory class. The following interface will be for instances of classes that create LogEntry instances:

using System;

using Sandbox.Foundation.Forms.Models.Logging;

namespace Sandbox.Foundation.Forms.Services.Factories.Diagnostics
{
	public interface ILogEntryFactory
	{
		LogEntry CreateLogEntry(string logEntryType, string message, Exception exception, Type ownerType, DateTime createdDate);

		LogEntry CreateLogEntry(string logEntryType, string message, Exception exception, object owner, DateTime createdDate);

		LogEntry CreateLogEntry(string logEntryType, string message, Type ownerType, DateTime createdDate);

		LogEntry CreateLogEntry(string logEntryType, string message, object owner, DateTime createdDate);
	}
}

Well, we can’t do much with just an interface. The following class implements the interface above. It creates an instance of LogEntry with the passed parameters to all methods (assuming the required parameters are passed with the proper values on them):

using System;

using Sandbox.Foundation.Forms.Models.Logging;

namespace Sandbox.Foundation.Forms.Services.Factories.Diagnostics
{
	public class LogEntryFactory : ILogEntryFactory
	{
		public LogEntry CreateLogEntry(string logEntryType, string message, Exception exception, Type ownerType, DateTime createdDate)
		{
			return CreateLogEntry(logEntryType, message, exception, ownerType, createdDate);
		}

		public LogEntry CreateLogEntry(string logEntryType, string message, Exception exception, object owner, DateTime createdDate)
		{
			if (!CanCreateLogEntry(logEntryType, message, owner, createdDate))
			{
				return null;
			}

			return new LogEntry
			{
				LogEntryType = logEntryType,
				Message = message,
				Exception = exception,
				Owner = owner,
				CreatedDate = createdDate
			};
		}

		public LogEntry CreateLogEntry(string logEntryType, string message, Type ownerType, DateTime createdDate)
		{
			return CreateLogEntry(logEntryType, message, ownerType, createdDate);
		}

		public LogEntry CreateLogEntry(string logEntryType, string message, object owner, DateTime createdDate)
		{
			if(!CanCreateLogEntry(logEntryType, message, owner, createdDate))
			{
				return null;
			}

			return new LogEntry
			{
				LogEntryType = logEntryType,
				Message = message,
				Owner = owner,
				CreatedDate = createdDate
			};
		}

		protected virtual bool CanCreateLogEntry(string logEntryType, string message, object owner, DateTime createdDate)
		{
			return !string.IsNullOrWhiteSpace(logEntryType)
				&& !string.IsNullOrWhiteSpace(message)
				&& owner != null
				&& createdDate != DateTime.MinValue
				&& createdDate != DateTime.MaxValue;
		}
	}
}

I didn’t want to send LogEntry instances directly to a repository class instance directly, so I created the following class to represent the entities which will ultimately be stored in the database:

using System;

namespace Sandbox.Foundation.Forms.Models.Logging
{
	public class RepositoryLogEntry
	{
		public string LogEntryType { get; set; }

		public string LogMessage { get; set; }

		public DateTime Created { get; set; }
	}
}

As I had done with LogEntry, I created a factory class for it. The difference here is we will be passing an instance of LogEntry to this new factory so we can create a RepositoryLogEntry instance from it.

The following interface is for factories of RepositoryLogEntry:

using System;

using Sandbox.Foundation.Forms.Models.Logging;

namespace Sandbox.Foundation.Forms.Services.Factories.Diagnostics
{
	public interface IRepositoryLogEntryFactory
	{
		RepositoryLogEntry CreateRepositoryLogEntry(LogEntry entry);

		RepositoryLogEntry CreateRepositoryLogEntry(string logEntryType, string logMessage, DateTime created);
	}
}

Now that we have the interface ready to go, we need an implementation class for it. The following class does the job:

using System;

using Sandbox.Foundation.Forms.Models.Logging;

namespace Sandbox.Foundation.Forms.Services.Factories.Diagnostics
{
	public class RepositoryLogEntryFactory : IRepositoryLogEntryFactory
	{
		public RepositoryLogEntry CreateRepositoryLogEntry(LogEntry entry)
		{
			return CreateRepositoryLogEntry(entry.LogEntryType, entry.LogMessage, entry.CreatedDate);
		}

		public RepositoryLogEntry CreateRepositoryLogEntry(string logEntryType, string logMessage, DateTime created)
		{
			if (!CanCreateRepositoryLogEntry(logEntryType, logMessage, created))
			{
				return null;
			}

			return new RepositoryLogEntry
			{
				LogEntryType = logEntryType,
				LogMessage = logMessage,
				Created = created
			};
		}

		protected virtual bool CanCreateRepositoryLogEntry(string logEntryType, string logMessage, DateTime created)
		{
			return !string.IsNullOrWhiteSpace(logEntryType)
					&& !string.IsNullOrWhiteSpace(logMessage)
					&& created != DateTime.MinValue
					&& created != DateTime.MaxValue;
		}
	}
}

I’m following a similiar structure here as I had done in the LogEntryFactory class above. The CanCreateRepositoryLogEntry() method ensures required parameters are passed to methods on the class. If they are not, then a null reference is returned to the caller.

Since I hate hardcoding things, I decided to create a service class that gets the newline character. The following interface is for classes that do that:

namespace Sandbox.Foundation.Forms.Services.Environment
{
	public interface IEnvironmentService
	{
		string GetNewLine();
	}
}

This next class implements the interface above:

namespace Sandbox.Foundation.Forms.Services.Environment
{
	public class EnvironmentService : IEnvironmentService
	{
		public string GetNewLine()
		{
			return System.Environment.NewLine;
		}
	}
}

In the class above, I’m taking advantage of stuff build into the .NET library for getting the newline character.

I love when I discover things like this, albeit wish I had found something like this when trying to find an html break string for something I was working on the other day, but I digress (if you know of a way, please let me know in a comment below πŸ˜‰ ).

The above interface and class might seem out of place in this post but I am using them when formatting messages for the LogEntry instances further down in another service class. Just keep an eye out for it.

Since I loathe hardcoding strings with a passion, I like to hide these away in Sitecore configuration patch files and hydrate a POCO class instance with the values from the aforementioned configuration. The following class is such a POCO settings object for a service class I will discuss further down in the post:

namespace Sandbox.Foundation.Forms.Models.Logging
{
	public class LogEntryServiceSettings
	{
		public string DebugLogEntryType { get; set; }

		public string ErrorLogEntryType { get; set; }

		public string FatalLogEntryType { get; set; }

		public string InfoLogEntryType { get; set; }

		public string WarnLogEntryType { get; set; }

		public string ExceptionPrefix { get; set; }

		public string MessagePrefix { get; set; }

		public string SourcePrefix { get; set; }

		public string NestedExceptionPrefix { get; set; }

		public string LogEntryTimeFormat { get; set; }
	}
}

Okay, so need we need to know what “type” of LogEntry we are dealing with — is it an error or a warning or what? — before sending to a repository to save in the database. I created the following interface for service classes that return back strings for the different LogEntry types, and also generate a log message from the data on properties on the LogEntry instance — this is the message that will end up in the database for the LogEntry:

using Sandbox.Foundation.Forms.Models.Logging;

namespace Sandbox.Foundation.Forms.Services.Diagnostics
{
	public interface ILogEntryService
	{
		string GetDebugLogEntryType();

		string GetErrorLogEntryType();

		string GetFatalLogEntryType();

		string GetInfoLogEntryType();

		string GetWarnLogEntryType();

		string GenerateLogMessage(LogEntry entry);
	}
}

And here is its implementation class:

using System;
using System.Text;

using Sandbox.Foundation.Forms.Models.Logging;
using Sandbox.Foundation.Forms.Services.Environment;

namespace Sandbox.Foundation.Forms.Services.Diagnostics
{
	public class LogEntryService : ILogEntryService
	{
		private readonly string _newLine;
		private readonly LogEntryServiceSettings _logEntryServiceSettings;

		public LogEntryService(IEnvironmentService environmentService, LogEntryServiceSettings logEntryServiceSettings)
		{
			_newLine = GetNewLine(environmentService);
			_logEntryServiceSettings = logEntryServiceSettings;
		}

		protected virtual string GetNewLine(IEnvironmentService environmentService)
		{
			return environmentService.GetNewLine();
		}

		public string GetDebugLogEntryType()
		{
			return _logEntryServiceSettings.DebugLogEntryType;
		}

		public string GetErrorLogEntryType()
		{
			return _logEntryServiceSettings.ErrorLogEntryType;
		}

		public string GetFatalLogEntryType()
		{
			return _logEntryServiceSettings.FatalLogEntryType;
		}

		public string GetInfoLogEntryType()
		{
			return _logEntryServiceSettings.InfoLogEntryType;
		}

		public string GetWarnLogEntryType()
		{
			return _logEntryServiceSettings.WarnLogEntryType;
		}

		public string GenerateLogMessage(LogEntry entry)
		{
			if(!CanGenerateLogMessage(entry))
			{
				return string.Empty;
			}

			string exceptionMessage = GenerateExceptionMessage(entry.Exception);
			if(string.IsNullOrWhiteSpace(exceptionMessage))
			{
				return $"{entry.Message}";
			}

			return $"{entry.Message} {exceptionMessage}";
		}

		protected virtual bool CanGenerateLogMessage(LogEntry entry)
		{
			return entry != null
					&& !string.IsNullOrWhiteSpace(entry.Message)
					&& entry.Owner != null;
		}

		protected virtual string GenerateExceptionMessage(Exception exception)
		{
			if(exception == null)
			{
				return string.Empty;
			}

			StringBuilder messageBuilder = new StringBuilder();
			messageBuilder.Append(_logEntryServiceSettings.ExceptionPrefix).Append(exception.GetType().FullName); ;
			AppendNewLine(messageBuilder);
			messageBuilder.Append(_logEntryServiceSettings.MessagePrefix).Append(exception.Message);
			AppendNewLine(messageBuilder);

			if (!string.IsNullOrWhiteSpace(exception.Source))
			{
				messageBuilder.Append(_logEntryServiceSettings.SourcePrefix).Append(exception.Source);
				AppendNewLine(messageBuilder);
			}

			if(!string.IsNullOrWhiteSpace(exception.StackTrace))
			{
				messageBuilder.Append(exception.StackTrace);
				AppendNewLine(messageBuilder);
			}

			if (exception.InnerException != null)
			{
				AppendNewLine(messageBuilder);
				messageBuilder.Append(_logEntryServiceSettings.NestedExceptionPrefix);
				AppendNewLine(messageBuilder, 3);
				messageBuilder.Append(GenerateExceptionMessage(exception.InnerException));
				AppendNewLine(messageBuilder);
			}

			return messageBuilder.ToString();
		}

		protected virtual void AppendNewLine(StringBuilder builder, int repeatCount = 1)
		{
			AppendRepeat(builder, _newLine, repeatCount);
		}

		protected virtual void AppendRepeat(StringBuilder builder, string stringToAppend, int repeatCount)
		{
			if (builder == null || string.IsNullOrWhiteSpace(stringToAppend) || repeatCount < 1)
			{
				return;
			}

			for(int i = 0; i < repeatCount; i++)
			{
				builder.Append(stringToAppend);
			}
		}
	}
}

I’m not going to discuss all the code in the above class as it should be self-explanatory.

I do want to point out GenerateLogMessage() will generate one of two strings, depending on whether an Exception was set on the LogEntry instance.

If an Exception was set, we append the Exception details — the GenerateExceptionMessage() method generates a string from the Exception — onto the end of the LogEntry message

If it was not set, we just return the LogEntry message to the caller.

Well, now we need a place to store the log entries. I used the following SQL script to create a new table for storing these:

USE [ExperienceFormsSettings]
GO

CREATE TABLE [dbo].[ExperienceFormsLog](
	[ID] [uniqueidentifier] NOT NULL,
	[LogEntryType] [nvarchar](max) NOT NULL,
	[LogMessage] [nvarchar](max) NOT NULL,
	[Created] [datetime] NOT NULL,
 CONSTRAINT [PK_ExperienceFormsLog] PRIMARY KEY CLUSTERED
(
	[ID] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
) ON [PRIMARY] TEXTIMAGE_ON [PRIMARY]
GO

ALTER TABLE [dbo].[ExperienceFormsLog] ADD  DEFAULT (newsequentialid()) FOR [ID]
GO

I also sprinkled some magical database dust onto the table:

πŸ˜‰

Wonderful, we now can move on to the fun bit — actually writing some code to store these entries into the database table created from the SQL script above.

I wrote the following POCO class to represent a SQL command — either a query or statement (it really doesn’t matter as it will support both):

namespace Sandbox.Foundation.Forms.Models.Logging
{
	public class SqlCommand
	{
		public string Sql { get; set; }

		public object[] Parameters { get; set; }
	}
}

I’m sure I could have found something in Sitecore.Kernel.dll that does exactly what the class above does but I couldn’t find such a thing (if you know of such a class, please share in a comment below).

Now we need a settings class for the SQL Logger I am writing further down in this post. As I had done for the LogEntryService class above, this data will be coming from Sitecore configuration:

namespace Sandbox.Foundation.Forms.Models.Logging
{
	public class SqlLoggerSettings
	{
		public string LogPrefix { get; set; }

		public string LogDatabaseConnectionStringName { get; set; }

		public string InsertLogEntrySqlFormat { get; set; }

		public string ConnectionStringNameColumnName { get; set; }

		public string FieldsPrefixColumnName { get; set; }

		public string FieldsIndexNameColumnName { get; set; }

		public int NotFoundOrdinal { get; set; }

		public string LogEntryTypeParameterName { get; set; }

		public string LogMessageParameterName { get; set; }

		public string CreatedParameterName { get; set; }
	}
}

Now the fun part — creating an implementation of Sitecore.ExperienceForms.Diagnostics.ILogger:

using System;

using Sitecore.Abstractions;
using Sitecore.Data.DataProviders.Sql;
using Sitecore.ExperienceForms.Diagnostics;

using Sandbox.Foundation.Forms.Services.Factories;
using Sandbox.Foundation.Forms.Models.Logging;
using Sandbox.Foundation.Forms.Services.Factories.Diagnostics;

namespace Sandbox.Foundation.Forms.Services.Diagnostics
{
	public class SqlLogger : ILogger
	{
		private readonly SqlLoggerSettings _sqlLoggerSettings;
		private readonly BaseSettings _settings;
		private readonly BaseFactory _factory;
		private readonly SqlDataApi _sqlDataApi;
		private readonly ILogEntryFactory _logEntryFactory;
		private readonly ILogEntryService _logEntryService;
		private readonly IRepositoryLogEntryFactory _repositoryLogEntryFactory;

		public SqlLogger(SqlLoggerSettings sqlLoggerSettings, BaseSettings settings, BaseFactory factory, ISqlDataApiFactory sqlDataApiFactory, ILogEntryFactory logEntryFactory, IRepositoryLogEntryFactory repositoryLogEntryFactory, ILogEntryService logEntryService)
		{
			_sqlLoggerSettings = sqlLoggerSettings;
			_settings = settings;
			_factory = factory;
			_sqlDataApi = CreateSqlDataApi(sqlDataApiFactory);
			_logEntryFactory = logEntryFactory;
			_logEntryService = logEntryService;
			_repositoryLogEntryFactory = repositoryLogEntryFactory;
		}

		protected virtual SqlDataApi CreateSqlDataApi(ISqlDataApiFactory sqlDataApiFactory)
		{
			return sqlDataApiFactory.CreateSqlDataApi(GetLogDatabaseConnectionString());
		}

		protected virtual string GetLogDatabaseConnectionString()
		{
			return _settings.GetConnectionString(GetLogDatabaseConnectionStringName());
		}

		protected virtual string GetLogDatabaseConnectionStringName()
		{
			return _sqlLoggerSettings.LogDatabaseConnectionStringName;
		}

		public void Debug(string message)
		{
			Debug(message, GetDefaultOwner());
		}

		public void Debug(string message, object owner)
		{
			SaveLogEntry(CreateLogEntry(GetDebugLogEntryType(), message, owner, GetLogEntryDateTime()));
		}

		protected virtual string GetDebugLogEntryType()
		{
			return _logEntryService.GetDebugLogEntryType();
		}

		public void LogError(string message)
		{
			LogError(message, null, GetDefaultOwner());
		}

		public void LogError(string message, object owner)
		{
			LogError(message, null, owner);
		}

		public void LogError(string message, Exception exception, Type ownerType)
		{
			LogError(message, exception, (object)ownerType);
		}

		public void LogError(string message, Exception exception, object owner)
		{
			SaveLogEntry(CreateLogEntry(GetErrorLogEntryType(), message, exception, owner, GetLogEntryDateTime()));
		}

		protected virtual string GetErrorLogEntryType()
		{
			return _logEntryService.GetErrorLogEntryType();
		}

		public void Fatal(string message)
		{
			Fatal(message, null, GetDefaultOwner());
		}

		public void Fatal(string message, object owner)
		{
			Fatal(message, null, owner);
		}

		public void Fatal(string message, Exception exception, Type ownerType)
		{
			Fatal(message, exception, (object)ownerType);
		}

		public void Fatal(string message, Exception exception, object owner)
		{
			SaveLogEntry(CreateLogEntry(GetFatalLogEntryType(), message, exception, owner, GetLogEntryDateTime()));
		}

		protected virtual string GetFatalLogEntryType()
		{
			return _logEntryService.GetFatalLogEntryType();
		}

		public void Info(string message)
		{
			Info(message, GetDefaultOwner());
		}

		public void Info(string message, object owner)
		{
			SaveLogEntry(CreateLogEntry(GetInfoLogEntryType(), message, owner, GetLogEntryDateTime()));
		}

		protected virtual string GetInfoLogEntryType()
		{
			return _logEntryService.GetInfoLogEntryType();
		}

		public void Warn(string message)
		{
			Warn(message, GetDefaultOwner());
		}

		public void Warn(string message, object owner)
		{
			SaveLogEntry(CreateLogEntry(GetWarnLogEntryType(), message, owner, GetLogEntryDateTime()));
		}

		protected virtual string AddPrefixToMessage(string message)
		{
			return string.Concat(_sqlLoggerSettings.LogPrefix, message);
		}

		protected virtual object GetDefaultOwner()
		{
			return this;
		}

		protected virtual LogEntry CreateLogEntry(string logEntryType, string message, Exception exception, Type ownerType, DateTime createdDate)
		{
			return _logEntryFactory.CreateLogEntry(logEntryType, message, exception, ownerType, createdDate);
		}

		protected virtual LogEntry CreateLogEntry(string logEntryType, string message, Exception exception, object owner, DateTime createdDate)
		{
			return _logEntryFactory.CreateLogEntry(logEntryType, message, exception, owner, createdDate);
		}

		protected virtual LogEntry CreateLogEntry(string logEntryType, string message, Type ownerType, DateTime createdDate)
		{
			return _logEntryFactory.CreateLogEntry(logEntryType, message, ownerType, createdDate);
		}

		protected virtual LogEntry CreateLogEntry(string logEntryType, string message, object owner, DateTime createdDate)
		{
			return _logEntryFactory.CreateLogEntry(logEntryType, message, owner, createdDate);
		}

		protected virtual string GetWarnLogEntryType()
		{
			return _logEntryService.GetWarnLogEntryType();
		}

		protected virtual DateTime GetLogEntryDateTime()
		{
			return DateTime.Now.ToUniversalTime();
		}

		protected virtual void SaveLogEntry(LogEntry entry)
		{
			if (entry == null)
			{
				return;
			}

			entry.LogMessage = _logEntryService.GenerateLogMessage(entry);

			RepositoryLogEntry repositoryEntry = CreateRepositoryLogEntry(entry);
			if (repositoryEntry == null)
			{
				return;
			}

			SaveRepositoryLogEntry(repositoryEntry);
		}

		protected virtual string GenerateLogMessage(LogEntry entry)
		{
			return _logEntryService.GenerateLogMessage(entry);
		}

		protected virtual RepositoryLogEntry CreateRepositoryLogEntry(LogEntry entry)
		{
			return _repositoryLogEntryFactory.CreateRepositoryLogEntry(entry);
		}

		protected virtual void SaveRepositoryLogEntry(RepositoryLogEntry entry)
		{
			if(!CanLogEntry(entry))
			{
				return;
			}

			SqlCommand insertCommand = GetinsertCommand(entry);
			if(insertCommand == null)
			{
				return;
			}

			ExecuteNoResult(insertCommand);
		}

		protected virtual bool CanLogEntry(RepositoryLogEntry entry)
		{
			return entry != null
					&& !string.IsNullOrWhiteSpace(entry.LogEntryType)
					&& !string.IsNullOrWhiteSpace(entry.LogMessage)
					&& entry.Created > DateTime.MinValue
					&& entry.Created < DateTime.MaxValue;
		}

		protected virtual SqlCommand GetinsertCommand(RepositoryLogEntry entry)
		{
			return new SqlCommand
			{
				Sql = GetInsertLogEntrySql(),
				Parameters = GetinsertCommandParameters(entry)
			};
		}

		protected virtual object[] GetinsertCommandParameters(RepositoryLogEntry entry)
		{
			return new object[]
			{
				GetLogEntryTypeParameterName(),
				entry.LogEntryType,
				GetLogMessageParameterName(),
				entry.LogMessage,
				GetCreatedParameterName(),
				entry.Created
			};
		}

		protected virtual string GetLogEntryTypeParameterName()
		{
			return _sqlLoggerSettings.LogEntryTypeParameterName;
		}

		protected virtual string GetLogMessageParameterName()
		{
			return _sqlLoggerSettings.LogMessageParameterName;
		}

		protected virtual string GetCreatedParameterName()
		{
			return _sqlLoggerSettings.CreatedParameterName;
		}

		protected virtual string GetInsertLogEntrySql()
		{
			return _sqlLoggerSettings.InsertLogEntrySqlFormat;
		}

		protected virtual void ExecuteNoResult(SqlCommand sqlCommand)
		{
			_factory.GetRetryer().ExecuteNoResult(() => { _sqlDataApi.Execute(sqlCommand.Sql, sqlCommand.Parameters); });
		}
	}
}

Since there is a lot of code in the class above, I’m not going to talk about all of it — it should be clear on what this class is doing for the most part.

I do want to highlight that the SaveRepositoryLogEntry() method takes in a RepositoryLogEntry instance; builds up a SqlCommand instance from it as well as the insert SQL statement and parameters from the SqlLoggerSettings instance (these are coming from Sitecore configuration, and there are hooks on this class to allow for overriding these if needed); and passes the SqlCommand instance to the ExecuteNoResult() method which uses the SqlDataApi instance for saving to the database. Plus, I’m leveraging an “out of the box” “retryer” from the Sitecore.Kernel.dll to ensure it makes its way into the database table.

Moreover, I’m reusing the ISqlDataApiFactory instance above from my previous post. Have a read of it so you can see what this factory class does.

Since Experience Forms was built perfectly — πŸ˜‰ — I couldn’t see any LogEntry instances being saved to my database right away. So went ahead and created some <forms.renderField> pipeline processors to capture some.

The following interface is for a <forms.renderField> pipeline processor to just throw an exception by dividing by zero:

using Sitecore.ExperienceForms.Mvc.Pipelines.RenderField;

namespace Sandbox.Foundation.Forms.Pipelines.RenderField
{
	public interface IThrowExceptionProcessor
	{
		void Process(RenderFieldEventArgs args);
	}
}

Here is its implementation class:

using System;

using Sitecore.ExperienceForms.Diagnostics;
using Sitecore.ExperienceForms.Mvc.Pipelines.RenderField;

namespace Sandbox.Foundation.Forms.Pipelines.RenderField
{
	public class ThrowExceptionProcessor : IThrowExceptionProcessor
	{
		private readonly ILogger _logger;

		public ThrowExceptionProcessor(ILogger logger)
		{
			_logger = logger;
		}

		public void Process(RenderFieldEventArgs args)
		{
			try
			{
				int i = 1 / GetZero();
			}
			catch(Exception ex)
			{
				_logger.LogError(ToString(), ex, this);
			}
		}

		private int GetZero()
		{
			return 0;
		}
	}
}

I’m sure you would never do such a thing, right? πŸ˜‰

I then created the following interface for another <forms.renderField> pipeline processor to log some information on the RenderFieldEventArgs instance sent to the Process() method:

using Sitecore.ExperienceForms.Mvc.Pipelines.RenderField;

namespace Sandbox.Foundation.Forms.Pipelines.RenderField
{
	public interface ILogRenderedFieldInfo
	{
		void Process(RenderFieldEventArgs args);
	}
}

Here is the implementation class for this:

using Sitecore.ExperienceForms.Diagnostics;
using Sitecore.ExperienceForms.Mvc.Pipelines.RenderField;
using Sitecore.Mvc.Pipelines;

namespace Sandbox.Foundation.Forms.Pipelines.RenderField
{
	public class LogRenderedFieldInfo : MvcPipelineProcessor<RenderFieldEventArgs>, ILogRenderedFieldInfo
	{
		private readonly ILogger _logger;

		public LogRenderedFieldInfo(ILogger logger)
		{
			_logger = logger;
		}

		public override void Process(RenderFieldEventArgs args)
		{
			LogInfo($"ViewModel Details:\n\nName: {args.ViewModel.Name}, ItemId: {args.ViewModel.ItemId}, TemplateId: {args.ViewModel.TemplateId}, FieldTypeItemId: {args.ViewModel.FieldTypeItemId}");
			LogInfo($"RenderingSettings Details\n\nFieldTypeName: {args.RenderingSettings.FieldTypeName}, FieldTypeId: {args.RenderingSettings.FieldTypeId}, FieldTypeIcon: {args.RenderingSettings.FieldTypeIcon}, FieldTypeDisplayName: {args.RenderingSettings.FieldTypeDisplayName}, FieldTypeBackgroundColor: {args.RenderingSettings.FieldTypeBackgroundColor}");
			LogInfo($"Item Details: {args.Item.ID}, Name: {args.Item.Name} FullPath: {args.Item.Paths.FullPath}, TemplateID: {args.Item.TemplateID}");
		}

		protected virtual void LogInfo(string message)
		{
			if(string.IsNullOrWhiteSpace(message))
			{
				return;
			}

			_logger.Info(message);
		}
	}
}

I then registered everything in the Sitecore IoC container using the following configurator:

using System;

using Microsoft.Extensions.DependencyInjection;

using Sitecore.Abstractions;
using Sitecore.DependencyInjection;
using Sitecore.ExperienceForms.Diagnostics;

using Sandbox.Foundation.Forms.Services.Factories.Diagnostics;
using Sandbox.Foundation.Forms.Services.Factories;
using Sandbox.Foundation.Forms.Models.Logging;
using Sandbox.Foundation.Forms.Services.Environment;
using Sandbox.Foundation.Forms.Services.Diagnostics;
using Sandbox.Foundation.Forms.Pipelines.RenderField;

namespace Sandbox.Foundation.Forms
{
	public class SqlLoggerConfigurator : IServicesConfigurator
	{
		public void Configure(IServiceCollection serviceCollection)
		{
			ConfigureConfigObjects(serviceCollection);
			ConfigureFactories(serviceCollection);
			ConfigureServices(serviceCollection);
			ConfigurePipelineProcessors(serviceCollection);
		}

		private void ConfigureConfigObjects(IServiceCollection serviceCollection)
		{
			serviceCollection.AddSingleton(provider => GetLogEntryServiceSettings(provider));
			serviceCollection.AddSingleton(provider => GetSqlLoggerSettings(provider));
		}

		private LogEntryServiceSettings GetLogEntryServiceSettings(IServiceProvider provider)
		{
			return CreateConfigObject<LogEntryServiceSettings>(provider, "moduleSettings/foundation/forms/logEntryServiceSettings");
		}

		private SqlLoggerSettings GetSqlLoggerSettings(IServiceProvider provider)
		{
			return CreateConfigObject<SqlLoggerSettings>(provider, "moduleSettings/foundation/forms/sqlLoggerSettings");
		}

		private TConfigObject CreateConfigObject<TConfigObject>(IServiceProvider provider, string path) where TConfigObject : class
		{
			BaseFactory factory = GetService<BaseFactory>(provider);
			return factory.CreateObject(path, true) as TConfigObject;
		}

		private TService GetService<TService>(IServiceProvider provider)
		{
			return provider.GetService<TService>();
		}

		private void ConfigureFactories(IServiceCollection serviceCollection)
		{
			serviceCollection.AddSingleton<ILogEntryFactory, LogEntryFactory>();
			serviceCollection.AddSingleton<IRepositoryLogEntryFactory, RepositoryLogEntryFactory>();
			serviceCollection.AddSingleton<ISqlDataApiFactory, SqlDataApiFactory>();
		}

		private void ConfigureServices(IServiceCollection serviceCollection)
		{
			serviceCollection.AddSingleton<IEnvironmentService, EnvironmentService>();
			serviceCollection.AddSingleton<ILogEntryService, LogEntryService>();
			serviceCollection.AddSingleton<ILogger, SqlLogger>();
		}

		private void ConfigurePipelineProcessors(IServiceCollection serviceCollection)
		{
			serviceCollection.AddSingleton<ILogRenderedFieldInfo, LogRenderedFieldInfo>();
			serviceCollection.AddSingleton<IThrowExceptionProcessor, ThrowExceptionProcessor>();
		}
	}
}

Note: the GetLogEntryServiceSettings() and the GetSqlLoggerSettings() methods both create settings objects by using the Sitecore Configuration Factory. Ultimately, these settings objects are thrown into the container so they can be injected into the service classes that need them.

I then strung everything together using the following the Sitecore patch configuration file.

<configuration xmlns:patch="http://www.sitecore.net/xmlconfig/">
	<sitecore>
		<pipelines>
			<forms.renderField>
				<processor type="Sandbox.Foundation.Forms.Pipelines.RenderField.LogRenderedFieldInfo, Sandbox.Foundation.Forms" resolve="true"/>
				<processor type="Sandbox.Foundation.Forms.Pipelines.RenderField.ThrowExceptionProcessor, Sandbox.Foundation.Forms" resolve="true"/>
			</forms.renderField>
		</pipelines>
		<services>
			<configurator type="Sandbox.Foundation.Forms.SqlLoggerConfigurator, Sandbox.Foundation.Forms" />
			<register serviceType="Sitecore.ExperienceForms.Diagnostics.ILogger, Sitecore.ExperienceForms">
				<patch:delete />
			</register>
		</services>

		<moduleSettings>
			<foundation>
				<forms>
					<logEntryServiceSettings type="Sandbox.Foundation.Forms.Models.Logging.LogEntryServiceSettings, Sandbox.Foundation.Forms" singleInstance="true">
						<DebugLogEntryType>DEBUG</DebugLogEntryType>
						<ErrorLogEntryType>ERROR</ErrorLogEntryType>
						<FatalLogEntryType>FATAL</FatalLogEntryType>
						<InfoLogEntryType>INFO</InfoLogEntryType>
						<WarnLogEntryType>WARN</WarnLogEntryType>
						<ExceptionPrefix>Exception: </ExceptionPrefix>
						<MessagePrefix>Message: </MessagePrefix>
						<SourcePrefix>Source: </SourcePrefix>
						<NestedExceptionPrefix>Nested Exception</NestedExceptionPrefix>
						<LogEntryTimeFormat>HH:mm:ss.ff</LogEntryTimeFormat>
					</logEntryServiceSettings>
					<sqlLoggerSettings type="Sandbox.Foundation.Forms.Models.Logging.SqlLoggerSettings, Sandbox.Foundation.Forms" singleInstance="true">
						<LogPrefix>[Experience Forms]:</LogPrefix>
						<LogDatabaseConnectionStringName>ExperienceFormsSettings</LogDatabaseConnectionStringName>
						<InsertLogEntrySqlFormat>INSERT INTO {0}ExperienceFormsLog{1}({0}LogEntryType{1},{0}LogMessage{1},{0}Created{1})VALUES({2}logEntryType{3},{2}logMessage{3},{2}created{3});</InsertLogEntrySqlFormat>
						<LogEntryTypeParameterName>logEntryType</LogEntryTypeParameterName>
						<LogMessageParameterName>logMessage</LogMessageParameterName>
						<CreatedParameterName>created</CreatedParameterName>
					</sqlLoggerSettings>
				</forms>
			</foundation>
		</moduleSettings>
	</sitecore>
</configuration>

Ok, let’s take this for a spin.

After building and deploying everything above, I spun up my Sitecore instance:

I then navigated to a form I had created in a previous post:

After the page with my form was done loading, I ran a query on my custom log table and saw this:

As you can see, it worked.

If you have any questions or comments, don’t hesitate to drop these in a comment below.

Until next time, have yourself a Sitecoretastic day!

Advertisements

Grab Sitecore Experience Forms Configuration Settings from a Custom SQL Server Database Table

Just the other day, I poking around Sitecore Experience Forms to see what’s customisable and have pretty much concluded virtually everything is.

morpheus

How?

Just have a look at http://[instance]/sitecore/admin/showservicesconfig.aspx of your Sitecore instance and scan for “ExperienceForms”. You will also discover lots of its service class are registered in Sitecore’s IoC container — such makes it easy to swap things out with your own service implementation classes as long as they implement those service types defined in the container.

Since I love to tinkering with all things in Sitecore — most especially when it comes to customising bits of it — I decided to have a crack at replacing IFormsConfigurationSettings — more specifically Sitecore.ExperienceForms.Configuration.IFormsConfigurationSettings in Sitecore.ExperienceForms.dll which represents Sitecore configuration settings for Experience Forms — as it appeared to be something simple enough to do.

The IFormsConfigurationSettings interface represents the following configuration settings:

config-settings-ootb

So, what did I do to customise it?

I wrote a bunch of code — it’s all in this post — which pulls these settings from a custom SQL Server database table.


Why did I do that? Well, I did it because I could. πŸ˜‰

Years ago, long before my Sitecore days, I worked on ASP.NET Web Applications which had their configuration settings stored in SQL Server databases. Whether this was, or still is, a good idea is a discussion for another time though you are welcome to drop a comment below with your thoughts.

However, for the meantime, just roll with it as the point of this post is to show that you can customise virtually everything in Experience Forms, and I’m just showing one example.

I first created the following class which implements IFormsConfigurationSettings:

using Sitecore.ExperienceForms.Configuration;

namespace Sandbox.Foundation.Forms.Models.Configuration
{
	public class SandboxFormsConfigurationSettings : IFormsConfigurationSettings
	{
		public string ConnectionStringName { get; set; }

		public string FieldsPrefix { get; set; }

		public string FieldsIndexName { get; set; }
	}
}

You might be asking “Mike, why did you create an implementation class when Experience Forms already provides one ‘out of the box’?”

Well, all the properties defined in Sitecore.ExperienceForms.Configuration.IFormsConfigurationSettings — these are the same properties that you see in the implementation class above — lack mutators on them in the interface. My implementation class of IFormsConfigurationSettings adds them in — I hate baking method calls in property accessors as it doesn’t seem clean to me. Β―\_(ツ)_/Β―

When I had a look at the “out of the box” implementation class of IFormsConfigurationSettings, I discovered direct calls to the GetSetting() method on the Sitecore.Configuration.Settings static class — this lives in Sitecore.Kernel.dll — but that doesn’t help me with setting those properties, hence the custom IFormsConfigurationSettings class above.

Next, I used the following SQL script to create my custom settings database table:

USE [ExperienceFormsSettings]
GO

CREATE TABLE [dbo].[FormsConfigurationSettings](
	[FieldsPrefix] [nvarchar](max) NULL,
	[FieldsIndexName] [nvarchar](max) NULL,
	[ConnectionStringName] [nvarchar](max) NULL
) ON [PRIMARY] TEXTIMAGE_ON [PRIMARY]
GO

I then inserted the settings from the configuration file snapshot above into my new table (I’ve omitted the SQL insert statement for this):

config-database

Now we need a way to retrieve these settings from the database. The following interface will be for factory classes which create instances of Sitecore.Data.DataProviders.Sql.SqlDataApi — this lives in Sitecore.Kernel.dll — with the passed connection strings:

using Sitecore.Data.DataProviders.Sql;

namespace Sandbox.Foundation.Forms.Services.Factories
{
	public interface ISqlDataApiFactory
	{
		SqlDataApi CreateSqlDataApi(string connectionString);
	}
}

Well, we can’t do much with an interface without having some class implement it. The following class implements the interface above:

using Sitecore.Data.DataProviders.Sql;
using Sitecore.Data.SqlServer;

namespace Sandbox.Foundation.Forms.Services.Factories
{
	public class SqlDataApiFactory : ISqlDataApiFactory
	{
		public SqlDataApi CreateSqlDataApi(string connectionString)
		{
			if(string.IsNullOrWhiteSpace(connectionString))
			{
				return null;
			}

			return new SqlServerDataApi(connectionString);
		}
	}
}

It’s just creating an instance of the SqlServerDataApi class. Nothing special about it at all.

Ironically, I do have to save my own configuration settings in Sitecore Configuration — this would include the the connection string name to the database that contains my new table as well as a few other things.

An instance of the following class will contain these settings — have a look at /sitecore/moduleSettings/foundation/forms/repositorySettings in the Sitecore patch file near the bottom of this post but be sure to come back up here when you are finished πŸ˜‰ — and this instance will be put into the Sitecore IoC container so it can be injected in an instance of a class I’ll talk about further down in this post:

namespace Sandbox.Foundation.Forms.Models.Configuration
{
	public class RepositorySettings
	{
		public string ConnectionStringName { get; set; }

		public string GetSettingsSql { get; set; }

		public string ConnectionStringNameColumnName { get; set; }

		public string FieldsPrefixColumnName { get; set; }

		public string FieldsIndexNameColumnName { get; set; }

		public int NotFoundOrdinal { get; set; }
	}
}

I then defined the following interface for repository classes which retrieve IFormsConfigurationSettings instances:

using Sitecore.ExperienceForms.Configuration;

namespace Sandbox.Foundation.Forms.Repositories.Configuration
{
	public interface ISettingsRepository
	{
		IFormsConfigurationSettings GetFormsConfigurationSettings();
	}
}

Here’s the implementation class for the interface above:

using System;
using System.Data;
using System.Linq;

using Sitecore.Abstractions;
using Sitecore.Data.DataProviders.Sql;
using Sitecore.ExperienceForms.Configuration;
using Sitecore.ExperienceForms.Diagnostics;

using Sandbox.Foundation.Forms.Models.Configuration;
using Sandbox.Foundation.Forms.Services.Factories;

namespace Sandbox.Foundation.Forms.Repositories.Configuration
{
	public class SettingsRepository : ISettingsRepository
	{
		private readonly RepositorySettings _repositorySettings;
		private readonly BaseSettings _settings;
		private readonly int _notFoundOrdinal;
		private readonly ILogger _logger;
		private readonly SqlDataApi _sqlDataApi;

		public SettingsRepository(RepositorySettings repositorySettings, BaseSettings settings, ILogger logger, ISqlDataApiFactory sqlDataApiFactory)
		{
			_repositorySettings = repositorySettings;
			_settings = settings;
			_notFoundOrdinal = GetNotFoundOrdinal();
			_logger = logger;
			_sqlDataApi = GetSqlDataApi(sqlDataApiFactory);
		}

		protected virtual SqlDataApi GetSqlDataApi(ISqlDataApiFactory sqlDataApiFactory)
		{
			return sqlDataApiFactory.CreateSqlDataApi(GetConnectionString());
		}

		protected virtual string GetConnectionString()
		{
			return _settings.GetConnectionString(GetConnectionStringName());
		}

		protected virtual string GetConnectionStringName()
		{
			return _repositorySettings.ConnectionStringName;
		}

		public IFormsConfigurationSettings GetFormsConfigurationSettings()
		{
			try
			{
				return _sqlDataApi.CreateObjectReader(GetSqlQuery(), GetParameters(), GetMaterializer()).FirstOrDefault();
			}
			catch (Exception ex)
			{
				LogError(ex);

			}

			return CreateFormsConfigurationSettingsNullObject();
		}

		protected virtual string GetSqlQuery()
		{
			return _repositorySettings.GetSettingsSql;
		}

		protected virtual object[] GetParameters()
		{
			return Enumerable.Empty<object>().ToArray();
		}

		protected virtual Func<IDataReader, IFormsConfigurationSettings> GetMaterializer()
		{
			return new Func<IDataReader, IFormsConfigurationSettings>(ParseFormsConfigurationSettings);
		}

		protected virtual IFormsConfigurationSettings ParseFormsConfigurationSettings(IDataReader dataReader)
		{
			return new SandboxFormsConfigurationSettings
			{
				ConnectionStringName = GetString(dataReader, GetConnectionStringNameColumnName()),
				FieldsPrefix = GetString(dataReader, GetFieldsPrefixColumnName()),
				FieldsIndexName = GetString(dataReader, GetFieldsIndexNameColumnName())
			};
		}

		protected virtual string GetString(IDataReader dataReader, string columnName)
		{
			if(dataReader == null || string.IsNullOrWhiteSpace(columnName))
			{
				return string.Empty;

			}

			int ordinal = GetOrdinal(dataReader, columnName);
			if(ordinal == _notFoundOrdinal)
			{
				return string.Empty;
			}

			return dataReader.GetString(ordinal);
		}

		protected virtual int GetOrdinal(IDataReader dataReader, string columnName)
		{
			if(dataReader == null || string.IsNullOrWhiteSpace(columnName))
			{
				return _notFoundOrdinal;
			}

			try
			{
				return dataReader.GetOrdinal(columnName);
			}
			catch(IndexOutOfRangeException)
			{
				return _notFoundOrdinal;
			}
		}

		protected virtual int GetNotFoundOrdinal()
		{
			return _repositorySettings.NotFoundOrdinal;
		}

		protected virtual void LogError(Exception exception)
		{
			_logger.LogError(ToString(), exception, this);
		}

		protected virtual string GetConnectionStringNameColumnName()
		{
			return _repositorySettings.ConnectionStringNameColumnName;
		}

		protected virtual string GetFieldsPrefixColumnName()
		{
			return _repositorySettings.FieldsPrefixColumnName;
		}

		protected virtual string GetFieldsIndexNameColumnName()
		{
			return _repositorySettings.FieldsIndexNameColumnName;
		}

		protected virtual IFormsConfigurationSettings CreateFormsConfigurationSettingsNullObject()
		{
			return new SandboxFormsConfigurationSettings
			{
				ConnectionStringName = string.Empty,
				FieldsIndexName = string.Empty,
				FieldsPrefix = string.Empty
			};
		}
	}
}

I’m not going to go into details of all the code above but will talk about some important pieces.

The GetFormsConfigurationSettings() method above creates an instance of the IFormsConfigurationSettings instance using the SqlDataApi instance created from the injected factory service — this was defined above — with the SQL query provided from configuration along with the GetMaterializer() method which just uses the ParseFormsConfigurationSettings() method to create an instance of the IFormsConfigurationSettings by grabbing data from the IDataReader instance.

Phew, I’m out of breath as that was a mouthful. πŸ˜‰

I then registered all of my service classes above in the Sitecore IoC container using the following the configurator — aka a class that implements the IServicesConfigurator interface:

using System;

using Microsoft.Extensions.DependencyInjection;

using Sitecore.Abstractions;
using Sitecore.DependencyInjection;
using Sitecore.ExperienceForms.Configuration;

using Sandbox.Foundation.Forms.Repositories.Configuration;
using Sandbox.Foundation.Forms.Models.Configuration;

using Sandbox.Foundation.Forms.Services.Factories;

namespace Sandbox.Foundation.Forms
{
	public class SettingsConfigurator : IServicesConfigurator
	{
		public void Configure(IServiceCollection serviceCollection)
		{
			serviceCollection.AddSingleton(provider => GetRepositorySettings(provider));
			serviceCollection.AddSingleton<ISqlDataApiFactory, SqlDataApiFactory>();
			serviceCollection.AddSingleton<ISettingsRepository, SettingsRepository>();
			serviceCollection.AddSingleton(provider => GetFormsConfigurationSettings(provider));
		}

		private RepositorySettings GetRepositorySettings(IServiceProvider provider)
		{
			return CreateConfigObject<RepositorySettings>(provider, "moduleSettings/foundation/forms/repositorySettings");
		}

		private TConfigObject CreateConfigObject<TConfigObject>(IServiceProvider provider, string path) where TConfigObject : class
		{
			BaseFactory factory = GetService<BaseFactory>(provider);
			return factory.CreateObject(path, true) as TConfigObject;
		}

		private IFormsConfigurationSettings GetFormsConfigurationSettings(IServiceProvider provider)
		{
			ISettingsRepository repository = GetService<ISettingsRepository>(provider);
			return repository.GetFormsConfigurationSettings();
		}

		private TService GetService<TService>(IServiceProvider provider)
		{
			return provider.GetService<TService>();
		}
	}
}

One thing to note is the GetRepositorySettings() method above uses the Configuration Factory — this is represented by the BaseFactory abstract class which lives in the Sitecore IoC container “out of the box” — to create an instance of the RepositorySettings class, defined further up in this post, using the settings in the following Sitecore patch file:

<configuration xmlns:patch="http://www.sitecore.net/xmlconfig/">
	<sitecore>
		<services>
			<configurator type="Sandbox.Foundation.Forms.SettingsConfigurator, Sandbox.Foundation.Forms" />
			<register serviceType="Sitecore.ExperienceForms.Configuration.IFormsConfigurationSettings, Sitecore.ExperienceForms">
				<patch:delete />
			</register>
		</services>

		<moduleSettings>
			<foundation>
				<forms>
					<repositorySettings type="Sandbox.Foundation.Forms.Models.Configuration.RepositorySettings, Sandbox.Foundation.Forms" singleInstance="true">
						<ConnectionStringName>ExperienceFormsSettings</ConnectionStringName>
						<GetSettingsSql>SELECT TOP (1) {0}ConnectionStringName{1},{0}FieldsPrefix{1},{0}FieldsIndexName{1} FROM {0}FormsConfigurationSettings{1}</GetSettingsSql>
						<ConnectionStringNameColumnName>ConnectionStringName</ConnectionStringNameColumnName>
						<FieldsPrefixColumnName>FieldsPrefix</FieldsPrefixColumnName>
						<FieldsIndexNameColumnName>FieldsIndexName</FieldsIndexNameColumnName>
						<NotFoundOrdinal>-1</NotFoundOrdinal>
					</repositorySettings>
				</forms>
			</foundation>
		</moduleSettings>
	</sitecore>
</configuration>

I want to point out that I’m deleting the Sitecore.ExperienceForms.Configuration.IFormsConfigurationSettings service from Sitecore’s configuration as I am adding it back in to the Sitecore IoC container with my own via the configurator above.

After deploying everything, I waited for my Sitecore instance to reload.


Once Sitecore was responsive again, I navigated to “Forms” on the Sitecore Launch Pad and made sure everything had still worked as before.

It did.

Trust me, it did. πŸ˜‰

living-in-db

If you have any questions/comments on any of the above, or would just like to drop a line to say “hello”, then please share in a comment below.

Otherwise, until next time, keep on Sitecoring.

Encrypt Sitecore Experience Forms Data in Powerful Ways

Last week, I was honoured to co-present Sitecore Experience Forms alongside my dear friend — and fellow trollster πŸ˜‰ — Sitecore MVP Kamruz Jaman at SUGCON EU 2018. We had a blast showing the ins and outs of Experience Forms, and of course trolled a bit whilst on the main stage.

During our talk, Kamruz had mentioned the possibility of replacing the “Out of the Box” (OOTB) Sitecore.ExperienceForms.Data.IFormDataProvider — this lives in Sitecore.ExperienceForms.dll — whose class implementations serve as Repository objects for storing or retrieving from some datastore (in Experience Forms this is MS SQL Server OOTB) with another to encrypt/decrypt data when saving to or retrieving from the datastore.

Well, I had done something exactly like this for Web Forms for Marketers (WFFM) about five years ago — be sure to have a read my blog post on this before proceeding as it gives context to the rest of this blog post — so thought it would be appropriate for me to have a swing at doing this for Experience Forms.

I first created an interface for classes that will encrypt/decrypt strings — this is virtually the same interface I had used in my older post on encrypting data in WFFM:

namespace Sandbox.Foundation.Forms.Services.Encryption
{
	public interface IEncryptor
	{
		string Encrypt(string key, string input);

		string Decrypt(string key, string input);
	}
}

I then created a class to encrypt/decrypt strings using the RC2 encryption algorithm — I had also poached this from my older post on encrypting data in WFFM (please note, this encryption algorithm is not the most robust so do not use this in any production environment. Please be sure to use something more robust):

using System.Text;
using System.Security.Cryptography;

namespace Sandbox.Foundation.Forms.Services.Encryption
{
	public class RC2Encryptor : IEncryptor
	{
		public string Encrypt(string key, string input)
		{
			byte[] inputArray = UTF8Encoding.UTF8.GetBytes(input);
			RC2CryptoServiceProvider rc2 = new RC2CryptoServiceProvider();
			rc2.Key = UTF8Encoding.UTF8.GetBytes(key);
			rc2.Mode = CipherMode.ECB;
			rc2.Padding = PaddingMode.PKCS7;
			ICryptoTransform cTransform = rc2.CreateEncryptor();
			byte[] resultArray = cTransform.TransformFinalBlock(inputArray, 0, inputArray.Length);
			rc2.Clear();
			return System.Convert.ToBase64String(resultArray, 0, resultArray.Length);
		}

		public string Decrypt(string key, string input)
		{
			byte[] inputArray = System.Convert.FromBase64String(input);
			RC2CryptoServiceProvider rc2 = new RC2CryptoServiceProvider();
			rc2.Key = UTF8Encoding.UTF8.GetBytes(key);
			rc2.Mode = CipherMode.ECB;
			rc2.Padding = PaddingMode.PKCS7;
			ICryptoTransform cTransform = rc2.CreateDecryptor();
			byte[] resultArray = cTransform.TransformFinalBlock(inputArray, 0, inputArray.Length);
			rc2.Clear();
			return UTF8Encoding.UTF8.GetString(resultArray);
		}
	}
}

Next, I created the following class to store settings I need for encrypting and decrypting data using the RC2 algorithm class above:

namespace Sandbox.Foundation.Forms.Models
{
	public class FormEncryptionSettings
	{
		public string EncryptionKey { get; set; }
	}
}

The encryption key above is needed for the RC2 algorithm to encrypt/decrypt data. I set this key in a config object defined in a Sitecore patch configuration file towards the bottom of this post.

I then created an interface for classes that will encrypt/decrypt FormEntry instances (FormEntry objects contain submitted data from form submissions):

using Sitecore.ExperienceForms.Data.Entities;

namespace Sandbox.Foundation.Forms.Services.Encryption
{
	public interface IFormEntryEncryptor
	{
		void EncryptFormEntry(FormEntry entry);

		void DecryptFormEntry(FormEntry entry);
	}
}

The following class implements the interface above:

using System.Linq;

using Sitecore.ExperienceForms.Data.Entities;

using Sandbox.Foundation.Forms.Models;

namespace Sandbox.Foundation.Forms.Services.Encryption
{
	public class FormEntryEncryptor : IFormEntryEncryptor
	{
		private readonly FormEncryptionSettings _formEncryptionSettings;
		private readonly IEncryptor _encryptor;

		public FormEntryEncryptor(FormEncryptionSettings formEncryptionSettings, IEncryptor encryptor)
		{
			_formEncryptionSettings = formEncryptionSettings;
			_encryptor = encryptor;
		}

		public void EncryptFormEntry(FormEntry entry)
		{
			if (!HasFields(entry))
			{
				return;
			}

			foreach (FieldData field in entry.Fields)
			{
				EncryptField(field);
			}
		}

		protected virtual void EncryptField(FieldData field)
		{
			if(field == null)
			{
				return;
			}

			field.FieldName = Encrypt(field.FieldName);
			field.Value = Encrypt(field.Value);
			field.ValueType = Encrypt(field.ValueType);
		}

		protected virtual string Encrypt(string input)
		{
			return _encryptor.Encrypt(_formEncryptionSettings.EncryptionKey, input);
		}

		public void DecryptFormEntry(FormEntry entry)
		{
			if (!HasFields(entry))
			{
				return;
			}

			foreach (FieldData field in entry.Fields)
			{
				DecryptField(field);
			}
		}

		protected virtual bool HasFields(FormEntry entry)
		{
			return entry != null
					&& entry.Fields != null
					&& entry.Fields.Any();
		}

		protected virtual void DecryptField(FieldData field)
		{
			if(field == null)
			{
				return;
			}

			field.FieldName = Decrypt(field.FieldName);
			field.Value = Decrypt(field.Value);
			field.ValueType = Decrypt(field.ValueType);
		}

		protected virtual string Decrypt(string input)
		{
			return _encryptor.Decrypt(_formEncryptionSettings.EncryptionKey, input);
		}
	}
}

The EncryptFormEntry() method above iterates over all FieldData objects contained on the FormEntry instance, and passes them to the EncryptField() mehod which encrypts the FieldName, Value and ValueType properties on them.

Likewise, the DecryptFormEntry() method iterates over all FieldData objects contained on the FormEntry instance, and passes them to the DecryptField() mehod which decrypts the same properties mentioned above.

I then created an interface for classes that will serve as factories for IFormDataProvider instances:

using Sitecore.ExperienceForms.Data;
using Sitecore.ExperienceForms.Data.SqlServer;

namespace Sandbox.Foundation.Forms.Services.Factories
{
	public interface IFormDataProviderFactory
	{
		IFormDataProvider CreateNewSqlFormDataProvider(ISqlDataApiFactory sqlDataApiFactory);
	}
}

The following class implements the interface above:

using Sitecore.ExperienceForms.Data;
using Sitecore.ExperienceForms.Data.SqlServer;

namespace Sandbox.Foundation.Forms.Services.Factories
{
	public class FormDataProviderFactory : IFormDataProviderFactory
	{
		public IFormDataProvider CreateNewSqlFormDataProvider(ISqlDataApiFactory sqlDataApiFactory)
		{
			return new SqlFormDataProvider(sqlDataApiFactory);
		}
	}
}

The CreateNewSqlFormDataProvider() method above does exactly was the method name says. You’ll see it being used in the following class below.

This next class ultimately becomes the new IFormDataProvider instance but decorates the OOTB one which is created from the factory class above:

using System;
using System.Collections.Generic;
using System.Linq;


using Sitecore.ExperienceForms.Data;
using Sitecore.ExperienceForms.Data.Entities;
using Sitecore.ExperienceForms.Data.SqlServer;

using Sandbox.Foundation.Forms.Services.Encryption;
using Sandbox.Foundation.Forms.Services.Factories;

namespace Sandbox.Foundation.Forms.Services.Data
{
	public class FormEncryptionDataProvider : IFormDataProvider
	{
		private readonly IFormDataProvider _innerProvider;
		private readonly IFormEntryEncryptor _formEntryEncryptor;

		public FormEncryptionDataProvider(ISqlDataApiFactory sqlDataApiFactory, IFormDataProviderFactory formDataProviderFactory, IFormEntryEncryptor formEntryEncryptor)
		{
			_innerProvider = CreateInnerProvider(sqlDataApiFactory, formDataProviderFactory);
			_formEntryEncryptor = formEntryEncryptor;
		}

		protected virtual IFormDataProvider CreateInnerProvider(ISqlDataApiFactory sqlDataApiFactory, IFormDataProviderFactory formDataProviderFactory)
		{
			return formDataProviderFactory.CreateNewSqlFormDataProvider(sqlDataApiFactory);
		}

		public void CreateEntry(FormEntry entry)
		{
			EncryptFormEntryField(entry);
			_innerProvider.CreateEntry(entry);
		}

		protected virtual void EncryptFormEntryField(FormEntry entry)
		{
			_formEntryEncryptor.EncryptFormEntry(entry);
		}

		public void DeleteEntries(Guid formId)
		{
			_innerProvider.DeleteEntries(formId);
		}

		public IReadOnlyCollection<FormEntry> GetEntries(Guid formId, DateTime? startDate, DateTime? endDate)
		{
			IReadOnlyCollection<FormEntry>  entries = _innerProvider.GetEntries(formId, startDate, endDate);
			if(entries == null || !entries.Any())
			{
				return entries;
			}

			foreach(FormEntry entry in entries)
			{
				DecryptFormEntryField(entry);
			}

			return entries;
		}

		protected virtual void DecryptFormEntryField(FormEntry entry)
		{
			_formEntryEncryptor.DecryptFormEntry(entry);
		}
	}
}

The class above does delegation to the IFormEntryEncryptor instance to encrypt the FormEntry data and then passes the FormEntry to the inner provider for saving.

For decrypting, it retrieves the data from the inner provider, and then decrypts it via the IFormEntryEncryptor instance before returning to the caller.

Finally, I created an IServicesConfigurator class to wire everything up into the Sitecore container (I hope you are using Sitecore Dependency Injection capabilities as this comes OOTB — there are no excuses for not using this!!!!!!):

using System;

using Microsoft.Extensions.DependencyInjection;

using Sitecore.Abstractions;
using Sitecore.DependencyInjection;
using Sitecore.ExperienceForms.Data;

using Sandbox.Foundation.Forms.Models;
using Sandbox.Foundation.Forms.Services.Encryption;
using Sandbox.Foundation.Forms.Services.Data;
using Sandbox.Foundation.Forms.Services.Factories;

namespace Sandbox.Foundation.Forms
{
	public class FormsServicesConfigurator : IServicesConfigurator
	{
		public void Configure(IServiceCollection serviceCollection)
		{
			serviceCollection.AddSingleton(provider => GetFormEncryptionSettings(provider));
			serviceCollection.AddSingleton<IEncryptor, RC2Encryptor>();
			serviceCollection.AddSingleton<IFormEntryEncryptor, FormEntryEncryptor>();
			serviceCollection.AddSingleton<IFormDataProviderFactory, FormDataProviderFactory>();
			serviceCollection.AddSingleton<IFormDataProvider, FormEncryptionDataProvider>();
		}

		private FormEncryptionSettings GetFormEncryptionSettings(IServiceProvider provider)
		{
			return CreateConfigObject<FormEncryptionSettings>(provider, "moduleSettings/foundation/forms/formEncryptionSettings");
		}

		private TConfigObject CreateConfigObject<TConfigObject>(IServiceProvider provider, string path) where TConfigObject : class
		{
			BaseFactory factory = GetService<BaseFactory>(provider);
			return factory.CreateObject(path, true) as TConfigObject;
		}

		private TService GetService<TService>(IServiceProvider provider)
		{
			return provider.GetService<TService>();
		}
	}
}

Everything above is normal service class registration except for the stuff in the GetFormEncryptionSettings() method. Here, I’m creating an instance of a FormEncryptionSettings class but am instantiating it using the Sitecore Configuration Factory for the configuration object defined in the Sitecore patch configuration file below, and am making that available for being injected into classes that need it (the FormEntryEncryptor above uses it).

I then wired everything together using the following Sitecore patch configuration file:

<configuration xmlns:patch="http://www.sitecore.net/xmlconfig/">
	<sitecore>
		<services>
			<configurator type="Sandbox.Foundation.Forms.FormsServicesConfigurator, Sandbox.Foundation.Forms" />
			<register serviceType="Sitecore.ExperienceForms.IFormDataProvider, Sitecore.ExperienceForms">
				<patch:delete />
			</register>
		</services>
		<moduleSettings>
			<foundation>
				<forms>
					<formEncryptionSettings type="Sandbox.Foundation.Forms.Models.FormEncryptionSettings, Sandbox.Foundation.Forms" singleInstance="true">
						<!-- I stole this from https://sitecorejunkie.com/2013/06/21/encrypt-web-forms-for-marketers-fields-in-sitecore/ -->
						<EncryptionKey>88bca90e90875a</EncryptionKey>
					</formEncryptionSettings>
				</forms>
			</foundation>
		</moduleSettings>
	</sitecore>
</configuration>

I want to call out that I’m deleting the OOTB IFormDataProvider above using a patch:delete. I’m re-adding it via the IServicesConfigurator above using the decorator class previously shown above.

Let’s take this for a spin.

I first created a new form (this is under “Forms” on the Sitecore Launchepad ):

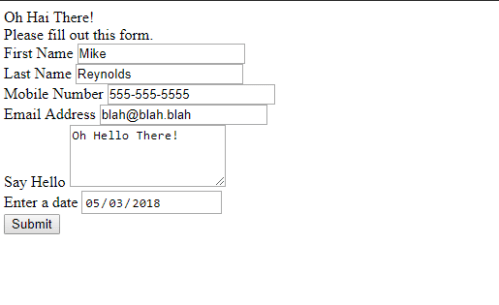

I then put it on a page with an MVC Layout; published everything; navigated to the test page with the form created above; filled out the form; and then clicked the submit button:

Let’s see if the data was encrypted. I opened up SQL Server Management Studio and ran a query on the FormEntry table in my Experience Forms Database:

As you can see the data was encrypted.

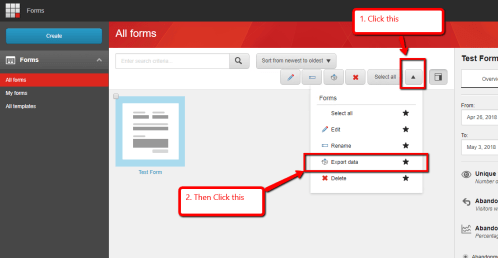

Let’s export the data to make sure it gets decrypted. We can do that by exporting the data as a CSV from Forms in the Sitecore Launchpad:

As you can see the data is decrypted in the CSV:

I do want to mention that Sitecore MVP JoΓ£o Neto had provided two other methods for encrypting data in Experience Forms in a post he wrote last January. I recommend having a read of that.

Until next time, see you on the Sitecore Slack πŸ˜‰

Display How Many Bucketed Items Live Within a Sitecore Item Bucket Using a Custom DataView

Over the past few weeks — if you haven’t noticed — I’ve been having a blast experimenting with Sitecore Item Buckets. It seems new ideas on what to build for it keep flooding my thoughts everyday. πŸ˜€

However, the other day an old idea that I wanted to solve a while back bubbled its way up into the forefront of my consciousness: displaying the count of Bucketed Items which live within each Item Bucket in the Content Tree.

I’m sure someone has built something to do this before though I didn’t really do any research on it as I was up for the challenge.

darth-vader-didnt-read

In all honesty, I enjoy spending my nights after work and on weekends building things in Sitecore — even if someone has built something like it before — as it’s a great way to not only discover new treasures hidden within the Sitecore assemblies, but also improve my programming skills — the saying “you lose it if you don’t use it” applies here.

nerds

You might be asking “Mike, we don’t store that many Sitecore Items in our Item Buckets; I can just go count them all by hand”.

Well, if that’s the case for you then you might want to reconsider why you are using the Item Buckets feature.

However, in theory, thousands if not millions of Items can live within an Item Bucket in Sitecore. If counting by hand is your thing — or even writing some sort of “script” (I’m not referring to PowerShell scripts that you would write using Sitecore PowerShell Extensions (SPE) — I definitely recommend harnessing all of the power this module has to offer — but instead to standalone ASP.NET Web Forms which some people erroneously call “scripts”) to generate some kind of report, then by all means go for it.

counting

That’s just not how I roll.

aint-no-time-for-that

So how are we going to display these counts to the user? We are ultimately going to create a custom Sitecore DataView.

If you aren’t familiar with DataViews in Sitecore, they basically allow you to change how Items are displayed in the Sitecore Content Tree.

I’m not going to go too much into details of how these work. I recommend having a read of the following posts by two fellow Sitecore MVPs for more information and to see other examples:

I do want to warn you: there is a lot of code in this post.

arghhhhh

You might want to go get a snack for this as it might take a while to get through all the code that I am showing here. Don’t worry, I’ll wait for you to get back.

eat-popcorn

Anyways, let’s jump right into it.

partay-meow

For this feature, I want to add a checkbox toggle in the Sitecore Ribbon to give users the ability turn this feature on and off.

bucketed-items-count-view-ribbon

In order to save the state of this checkbox, I defined the following interface:

namespace Sitecore.Sandbox.Web.UI.HtmlControls.Registries
{
    public interface IRegistry
    {
        bool GetBool(string key);

        bool GetBool(string key, bool defaultvalue);

        int GetInt(string key);

        int GetInt(string key, int defaultvalue);

        string GetString(string key);

        string GetString(string key, string defaultvalue);

        string GetValue(string key);

        void SetBool(string key, bool val);

        void SetInt(string key, int val);

        void SetString(string key, string value);

        void SetValue(string key, string value);
    }
}

Classes of the above interface will keep track of settings which need to be stored somewhere.

The following class implements the interface above:

namespace Sitecore.Sandbox.Web.UI.HtmlControls.Registries
{
    public class Registry : IRegistry
    {
        public virtual bool GetBool(string key)
        {
            return Sitecore.Web.UI.HtmlControls.Registry.GetBool(key);
        }

        public virtual bool GetBool(string key, bool defaultvalue)
        {
            return Sitecore.Web.UI.HtmlControls.Registry.GetBool(key, defaultvalue);
        }

        public virtual int GetInt(string key)
        {
            return Sitecore.Web.UI.HtmlControls.Registry.GetInt(key);
        }

        public virtual int GetInt(string key, int defaultvalue)
        {
            return Sitecore.Web.UI.HtmlControls.Registry.GetInt(key, defaultvalue);
        }

        public virtual string GetString(string key)
        {
            return Sitecore.Web.UI.HtmlControls.Registry.GetString(key);
        }

        public virtual string GetString(string key, string defaultvalue)
        {
            return Sitecore.Web.UI.HtmlControls.Registry.GetString(key, defaultvalue);
        }

        public virtual string GetValue(string key)
        {
            return Sitecore.Web.UI.HtmlControls.Registry.GetValue(key);
        }

        public virtual void SetBool(string key, bool val)
        {
            Sitecore.Web.UI.HtmlControls.Registry.SetBool(key, val);
        }

        public virtual void SetInt(string key, int val)
        {
            Sitecore.Web.UI.HtmlControls.Registry.SetInt(key, val);
        }

        public virtual void SetString(string key, string value)
        {
            Sitecore.Web.UI.HtmlControls.Registry.SetString(key, value);
        }

        public virtual void SetValue(string key, string value)
        {
            Sitecore.Web.UI.HtmlControls.Registry.SetValue(key, value);
        }
    }
}

I’m basically wrapping calls to methods on the static Sitecore.Web.UI.HtmlControls.Registry class which is used for saving state on the checkboxes in the Sitecore ribbon — it might be used for keeping track of other things in the Sitecore Content Editor though that is beyond the scope of this post. Nothing magical going on here.

I then defined the following interface for keeping track of Content Editor settings for things related to Item Buckets:

namespace Sitecore.Sandbox.Buckets.Settings
{
    public interface IBucketsContentEditorSettings
    {
        bool ShowBucketedItemsCount { get; set; }

        bool AreItemBucketsEnabled { get; }
    }
}

The ShowBucketedItemsCount boolean property lets the caller know if we are to show the Bucketed Items count, and the AreItemBucketsEnabled boolean property lets the caller know if the Item Buckets feature is enabled in Sitecore.

The following class implements the interface above:

using Sitecore.Diagnostics;

using Sitecore.Sandbox.Determiners.Features;
using Sitecore.Sandbox.Web.UI.HtmlControls.Registries;

namespace Sitecore.Sandbox.Buckets.Settings
{
    public class BucketsContentEditorSettings : IBucketsContentEditorSettings
    {
        protected IFeatureDeterminer ItemBucketsFeatureDeterminer { get; set; }

        protected IRegistry Registry { get; set; }

        protected string ShowBucketedItemsCountRegistryKey { get; set; }

        public bool ShowBucketedItemsCount
        {
            get
            {
                return ShouldShowBucketedItemsCount();
            }
            set
            {
                ToggleShowBucketedItemsCount(value);
            }
        }

        public bool AreItemBucketsEnabled
        {
            get
            {
                return GetAreItemBucketsEnabled();
            }
        }

        protected virtual bool ShouldShowBucketedItemsCount()
        {
            if (!AreItemBucketsEnabled)
            {
                return false;
            }

            EnsureRegistryDependencies();
            return Registry.GetBool(ShowBucketedItemsCountRegistryKey, false);
        }

        protected virtual void ToggleShowBucketedItemsCount(bool turnOn)
        {

            if (!AreItemBucketsEnabled)
            {
                return;
            }

            EnsureRegistryDependencies();
            Registry.SetBool(ShowBucketedItemsCountRegistryKey, turnOn);
        }

        protected virtual void EnsureRegistryDependencies()
        {
            Assert.IsNotNull(Registry, "Registry must be defined in configuration!");
            Assert.IsNotNullOrEmpty(ShowBucketedItemsCountRegistryKey, "ShowBucketedItemsCountRegistryKey must be defined in configuration!");
        }

        protected virtual bool GetAreItemBucketsEnabled()
        {
            Assert.IsNotNull(ItemBucketsFeatureDeterminer, "ItemBucketsFeatureDeterminer must be defined in configuration!");
            return ItemBucketsFeatureDeterminer.IsEnabled();
        }
    }
}

I’m injecting an IFeatureDeterminer instance into the instance of the class above via the Sitecore Configuration Factory — have a look at the patch configuration file further down in this post — specifically the ItemBucketsFeatureDeterminer which is defined in a previous blog post. The IFeatureDeterminer instance determines whether the Item Buckets feature is turned on/off (I’m not going to repost that code here so if you haven’t seen this code, please go have a look now so you have an understanding of what it’s doing).

Its instance is used in the GetAreItemBucketsEnabled() method which just delegates to its IsEnabled() method and returns the value from that call. The GetAreItemBucketsEnabled() method is used in the get accessor of the AreItemBucketsEnabled property.

I’m also injecting an IRegistry instance into the instance of the class above — this is also defined in the patch configuration file further down — which is used for storing/retrieving the value of the ShowBucketedItemsCount property.

It is leveraged in the ShouldShowBucketedItemsCount() and ToggleShowBucketedItemsCount() methods where a boolean value is saved or retrieved, respectively, in the Sitecore Registry under a certain key — this key is also injected into the ShowBucketedItemsCountRegistryKey property via the Sitecore Configuration Factory.

So, we now have a way to keep track of whether we should display the Bucketed Items count. We just need a way to let the user turn this on/off. To do that, I need to create a custom Sitecore.Shell.Framework.Commands.Command.

Since Sitecore Commands are instantiated by the CreateObject() method on the MainUtil class (this lives in the Sitecore namespace in Sitecore.Kernel.dll and isn’t as advanced as the Sitecore.Configuration.Factory class as it won’t instantiate nested objects defined in configuration as does the Sitecore Configuration Factory), I built the following Command which will decorate Commands defined in Sitecore configuration:

using System.Xml;

using Sitecore.Configuration;
using Sitecore.Diagnostics;
using Sitecore.Shell.Framework.Commands;
using Sitecore.Web.UI.HtmlControls;
using Sitecore.Xml;

namespace Sitecore.Sandbox.Shell.Framework.Commands
{
    public class ExtendedConfigCommand : Command
    {
        private Command command;
        protected Command Command
        {
            get
            {
                if(command == null)
                {
                    command = GetCommand();
                    EnsureCommand();
                }

                return command;
            }
        }

        protected virtual Command GetCommand()
        {
            XmlNode currentCommandNode = Factory.GetConfigNode(string.Format("commands/command[@name='{0}']", Name));
            string configPath = XmlUtil.GetAttribute("extendedCommandPath", currentCommandNode);
            Assert.IsNotNullOrEmpty(configPath, string.Format("The extendedCommandPath attribute must be set {0}!", currentCommandNode));
            Command command = Factory.CreateObject(configPath, false) as Command;
            Assert.IsNotNull(command, string.Format("The command defined at '{0}' was either not properly set or is not an instance of Sitecore.Shell.Framework.Commands.Command. Double-check it!", configPath));
            return command;
        }

        protected virtual void EnsureCommand()
        {
            Assert.IsNotNull(Command, "GetCommand() cannot return a null Sitecore.Shell.Framework.Commands.Command instance!");
        }

        public override void Execute(CommandContext context)
        {
            Command.Execute(context);
        }

        public override string GetClick(CommandContext context, string click)
        {
            return Command.GetClick(context, click);
        }

        public override string GetHeader(CommandContext context, string header)
        {
            return Command.GetHeader(context, header);
        }

        public override string GetIcon(CommandContext context, string icon)
        {
            return Command.GetIcon(context, icon);
        }

        public override Control[] GetSubmenuItems(CommandContext context)
        {
            return Command.GetSubmenuItems(context);
        }

        public override string GetToolTip(CommandContext context, string tooltip)
        {
            return Command.GetToolTip(context, tooltip);
        }

        public override string GetValue(CommandContext context, string value)
        {
            return Command.GetValue(context, value);
        }

        public override CommandState QueryState(CommandContext context)
        {
            return Command.QueryState(context);
        }
    }
}

The GetCommand() method reads the XmlNode for the current command, and gets the value set on its extendedCommandPath attribute. This value must to be a config path defined under the <sitecore> element in Sitecore configuration.

If the attribute doesn’t exist or is empty, or a Command instance isn’t properly created, an exception is thrown.

Otherwise, it is set on the Command property on the class.

All methods here delegate to the same methods on the Command stored in the Command property.

I then defined the following Command which will be used by the checkbox we are adding to the Sitecore Ribbon:

using Sitecore.Diagnostics;
using Sitecore.Shell.Framework.Commands;
using Sitecore.Web.UI.Sheer;

using Sitecore.Sandbox.Buckets.Settings;

namespace Sitecore.Sandbox.Buckets.Shell.Framework.Commands
{
    public class ToggleBucketedItemsCountCommand : Command
    {
        protected IBucketsContentEditorSettings BucketsContentEditorSettings { get; set; }

        public override void Execute(CommandContext context)
        {
            if (!AreItemBucketsEnabled())
            {
                return;
            }

            ToggleShowBucketedItemsCount();
            Reload();
        }

        protected virtual void ToggleShowBucketedItemsCount()
        {
            Assert.IsNotNull(BucketsContentEditorSettings, "BucketsContentEditorSettings must be defined in configuration!");
            BucketsContentEditorSettings.ShowBucketedItemsCount = !BucketsContentEditorSettings.ShowBucketedItemsCount;
        }

        protected virtual void Reload()
        {
            SheerResponse.SetLocation(string.Empty);
        }

        public override CommandState QueryState(CommandContext context)
        {
            if(!AreItemBucketsEnabled())
            {
                return CommandState.Hidden;
            }

            if(!ShouldShowBucketedItemsCount())
            {
                return CommandState.Enabled;
            }

            return CommandState.Down;
        }

        protected virtual bool AreItemBucketsEnabled()
        {
            Assert.IsNotNull(BucketsContentEditorSettings, "BucketsContentEditorSettings must be defined in configuration!");
            return BucketsContentEditorSettings.AreItemBucketsEnabled;
        }

        protected virtual bool ShouldShowBucketedItemsCount()
        {
            Assert.IsNotNull(BucketsContentEditorSettings, "BucketsContentEditorSettings must be defined in configuration!");
            return BucketsContentEditorSettings.ShowBucketedItemsCount;
        }
    }
}

The QueryState() method determines whether we should display the checkbox — it will only be displayed if the Item Buckets feature is on — and what the state of the checkbox should be — if we are currently showing Bucketed Items count, the checkbox will be checked (this is represented by CommandState.Down). Otherwise, it will be unchecked (this is represented by CommandState.Enabled).

The Execute() method encapsulates the logic of what we are to do when the user checks/unchecks the checkbox. It’s basically delegating to the ToggleShowBucketedItemsCount() method to toggle the value of whether we are to display the Bucketed Items count, and then reloads the Content Editor to refresh the display in the Content Tree.

I then had to define this checkbox in the Core database:

bucketed-items-count-checkbox-core

I’m not going to go into details of how the above works as I’ve written over a gazillion posts on the subject. I recommend having a read of one of these older posts.

After going back to my Master database, I saw the new checkbox in the Sitecore Ribbon:

buckted-items-count-new-checkbox

Since we could be dealing with thousands — if not millions — of Bucketed Items for each Item Bucket, we need a performant way to grab the count of these Items. In this solution, I am leveraging the Sitecore.ContentSearch API to get these counts though needed to add some custom
Computed Index Field classes:

using Sitecore.Buckets.Managers;
using Sitecore.Configuration;
using Sitecore.ContentSearch;
using Sitecore.ContentSearch.ComputedFields;
using Sitecore.Data.Items;
using Sitecore.Diagnostics;

using Sitecore.Sandbox.Buckets.Util.Methods;

namespace Sitecore.Sandbox.Buckets.ContentSearch.ComputedFields
{
    public class IsBucketed : AbstractComputedIndexField
    {
        protected IItemBucketsFeatureMethods ItemBucketsFeatureMethods { get; private set; }

        public IsBucketed()
        {
            ItemBucketsFeatureMethods = GetItemBucketsFeatureMethods();
            Assert.IsNotNull(ItemBucketsFeatureMethods, "GetItemBucketsFeatureMethods() cannot return null!");
        }

        protected virtual IItemBucketsFeatureMethods GetItemBucketsFeatureMethods()
        {
            IItemBucketsFeatureMethods methods = Factory.CreateObject("buckets/methods/itemBucketsFeatureMethods", false) as IItemBucketsFeatureMethods;
            Assert.IsNotNull(methods, "the IItemBucketsFeatureMethods instance was not defined properly in /sitecore/buckets/methods/itemBucketsFeatureMethods!");
            return methods;
        }

        public override object ComputeFieldValue(IIndexable indexable)
        {
            Item item = indexable as SitecoreIndexableItem;
            if (item == null)
            {
                return null;
            }


            return IsBucketable(item) && IsItemContainedWithinBucket(item);
        }

        protected virtual bool IsBucketable(Item item)
        {
            Assert.ArgumentNotNull(item, "item");
            return BucketManager.IsBucketable(item);
        }

        protected virtual bool IsItemContainedWithinBucket(Item item)
        {
            Assert.ArgumentNotNull(item, "item");
            if(IsItemBucket(item))
            {
                return false;
            }

            return ItemBucketsFeatureMethods.IsItemContainedWithinBucket(item);
        }

        protected virtual bool IsItemBucket(Item item)
        {
            Assert.ArgumentNotNull(item, "item");
            if (!ItemBucketsFeatureMethods.IsItemBucket(item))
            {
                return false;
            }

            return true;
        }
    }
}

An instance of the class above ultimately determines if an Item is bucketed within an Item Bucket, and passes a boolean value to its caller denoting this via its ComputeFieldValue() method.

What determines whether an Item is bucketed? The code above says it’s bucketed only when the Item is bucketable and is contained within an Item Bucket.

The IsBucketable() method above ascertains whether the Item is bucketable by delegating to the IsBucketable() method on the BucketManager class in Sitecore.Buckets.dll.

The IsItemContainedWithinBucket() method determines if the Item is contained within an Item Bucket — you might be laughing as the name on the method is self-documenting — by delegating to the IsItemContainedWithinBucket() method on the IItemBucketsFeatureMethods instance — I’ve defined the code for this in this post so go have a look.

Moreover, the code does not consider Item Buckets to be Bucketed as that just doesn’t make much sense. πŸ˜‰ This would also give us an inaccurate count.

The following Computed Index Field’s ComputeFieldValue() method returns the string representation of the ancestor Item Bucket’s Sitecore.Data.ID for the Item — if it is contained within an Item Bucket:

using Sitecore.Configuration;
using Sitecore.ContentSearch;
using Sitecore.ContentSearch.ComputedFields;
using Sitecore.ContentSearch.Utilities;
using Sitecore.Data;
using Sitecore.Data.Items;
using Sitecore.Diagnostics;

using Sitecore.Sandbox.Buckets.Util.Methods;

namespace Sitecore.Sandbox.Buckets.ContentSearch.ComputedFields
{
    public class ItemBucketAncestorId : AbstractComputedIndexField
    {
        protected IItemBucketsFeatureMethods ItemBucketsFeatureMethods { get; private set; }

        public ItemBucketAncestorId()
        {
            ItemBucketsFeatureMethods = GetItemBucketsFeatureMethods();
            Assert.IsNotNull(ItemBucketsFeatureMethods, "GetItemBucketsFeatureMethods() cannot return null!");
        }

        protected virtual IItemBucketsFeatureMethods GetItemBucketsFeatureMethods()
        {
            IItemBucketsFeatureMethods methods = Factory.CreateObject("buckets/methods/itemBucketsFeatureMethods", false) as IItemBucketsFeatureMethods;
            Assert.IsNotNull(methods, "the IItemBucketsFeatureMethods instance was not defined properly in /sitecore/buckets/methods/itemBucketsFeatureMethods!");
            return methods;
        }

        public override object ComputeFieldValue(IIndexable indexable)
        {
            Item item = indexable as SitecoreIndexableItem;
            if (item == null)
            {
                return null;
            }

            Item itemBucketAncestor = GetItemBucketAncestor(item);
            if(itemBucketAncestor == null)
            {

                return null;
            }

            return NormalizeGuid(itemBucketAncestor.ID);
        }

        protected virtual Item GetItemBucketAncestor(Item item)
        {
            Assert.ArgumentNotNull(item, "item");
            if(IsItemBucket(item))
            {
                return null;
            }

            Item itemBucket = ItemBucketsFeatureMethods.GetItemBucket(item);
            if(!IsItemBucket(itemBucket))
            {
                return null;
            }

            return itemBucket;
        }

        protected virtual bool IsItemBucket(Item item)
        {
            Assert.ArgumentNotNull(item, "item");
            if (!ItemBucketsFeatureMethods.IsItemBucket(item))
            {
                return false;
            }

            return true;
        }

        protected virtual string NormalizeGuid(ID id)
        {
            return IdHelper.NormalizeGuid(id);
        }
    }
}

Not to go too much into details of the class above, it will only return an Item Bucket’s Sitecore.Data.ID as a string if the Item lives within an Item Bucket and is not itself an Item Bucket.

If the Item is not within an Item Bucket or is an Item Bucket, null is returned to the caller via the ComputeFieldValue() method.

I then created the following subclass of Sitecore.ContentSearch.SearchTypes.SearchResultItem — this lives in Sitecore.ContentSearch.dll — in order to use the values in the index that the previous Computed Field Index classes returned for their storage in the search index:

using System.ComponentModel;

using Sitecore.ContentSearch;
using Sitecore.ContentSearch.Converters;
using Sitecore.ContentSearch.SearchTypes;
using Sitecore.Data;

namespace Sitecore.Sandbox.Buckets.ContentSearch.SearchTypes
{
    public class BucketedSearchResultItem : SearchResultItem
    {
        [IndexField("item_bucket_ancestor_id")]
        [TypeConverter(typeof(IndexFieldIDValueConverter))]
        public ID ItemBucketAncestorId { get; set; }

        [IndexField("is_bucketed")]
        public bool IsBucketed { get; set; }
    }
}

Now, we need a class to get the Bucketed Item count for an Item Bucket. I defined the following interface for class implementations that do just that:

using Sitecore.Data.Items;

namespace Sitecore.Sandbox.Buckets.Providers.Items
{
    public interface IBucketedItemsCountProvider
    {
        int GetBucketedItemsCount(Item itemBucket);
    }
}

I then created the following class that implements the interface above:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Linq.Expressions;
using System.Xml;

using Sitecore.Configuration;
using Sitecore.ContentSearch;
using Sitecore.ContentSearch.Linq;
using Sitecore.ContentSearch.Linq.Utilities;
using Sitecore.ContentSearch.SearchTypes;
using Sitecore.ContentSearch.Utilities;
using Sitecore.Data;
using Sitecore.Data.Items;
using Sitecore.Diagnostics;
using Sitecore.Xml;

using Sitecore.Sandbox.Buckets.ContentSearch.SearchTypes;

namespace Sitecore.Sandbox.Buckets.Providers.Items
{
    public class BucketedItemsCountProvider : IBucketedItemsCountProvider
    {
        protected IDictionary<string, ISearchIndex> SearchIndexMap { get; private set; }

        public BucketedItemsCountProvider()
        {
            SearchIndexMap = CreateNewSearchIndexMap();
        }

        protected virtual IDictionary<string, ISearchIndex> CreateNewSearchIndexMap()
        {
            return new Dictionary<string, ISearchIndex>();
        }

        protected virtual void AddSearchIndexMap(XmlNode configNode)
        {
            if(configNode == null)
            {
                return;
            }

            string databaseName = XmlUtil.GetAttribute("database", configNode, null);
            Assert.IsNotNullOrEmpty(databaseName, "The database attribute on the searchIndexMap configuration element cannot be null or the empty string!");
            Assert.ArgumentCondition(!SearchIndexMap.ContainsKey(databaseName), "database", "The searchIndexMap configuration element's database attribute values must be unique!");

            Database database = Factory.GetDatabase(databaseName);
            Assert.IsNotNull(database, string.Format("No database exists with the name of '{0}'! Make sure the database attribute on your searchIndexMap configuration element is set correctly!", databaseName));

            string searchIndexName = XmlUtil.GetAttribute("searchIndex", configNode, null);
            Assert.IsNotNullOrEmpty(searchIndexName, "The searchIndex attribute on the searchIndexMap configuration element cannot be null or the empty string!");

            ISearchIndex searchIndex = GetSearchIndex(searchIndexName);
            Assert.IsNotNull(searchIndex, string.Format("No search index exists with the name of '{0}'! Make sure the searchIndex attribute on your searchIndexMap configuration element is set correctly", searchIndexName));

            SearchIndexMap.Add(databaseName, searchIndex);
        }

        public virtual int GetBucketedItemsCount(Item bucketItem)
        {
            Assert.ArgumentNotNull(bucketItem, "bucketItem");

            ISearchIndex searchIndex = GetSearchIndex();
            using (IProviderSearchContext searchContext = searchIndex.CreateSearchContext())
            {
                var predicate = GetSearchPredicate<BucketedSearchResultItem>(bucketItem.ID);
                IQueryable<SearchResultItem> query = searchContext.GetQueryable<BucketedSearchResultItem>().Filter(predicate);
                SearchResults<SearchResultItem> results = query.GetResults();
                return results.Count();
            }
        }

        protected virtual ISearchIndex GetSearchIndex()
        {
            string databaseName = GetContentDatabaseName();
            Assert.IsNotNullOrEmpty(databaseName, "The GetContentDatabaseName() method cannot return null or the empty string!");
            Assert.ArgumentCondition(SearchIndexMap.ContainsKey(databaseName), "databaseName", string.Format("There is no ISearchIndex instance mapped to the database: '{0}'!", databaseName));
            return SearchIndexMap[databaseName];
        }

        protected virtual string GetContentDatabaseName()
        {
            Database database = Context.ContentDatabase ?? Context.Database;
            Assert.IsNotNull(database, "Argggggh! There's no content database! Houston, we have a problem!");
            return database.Name;
        }

        protected virtual ISearchIndex GetSearchIndex(string searchIndexName)
        {
            Assert.ArgumentNotNullOrEmpty(searchIndexName, "searchIndexName");
            return ContentSearchManager.GetIndex(searchIndexName);
        }

        protected virtual Expression<Func<TSearchResultItem, bool>> GetSearchPredicate<TSearchResultItem>(ID itemBucketId) where TSearchResultItem : BucketedSearchResultItem
        {
            Assert.ArgumentCondition(!ID.IsNullOrEmpty(itemBucketId), "itemBucketId", "itemBucketId cannot be null or empty!");
            var predicate = PredicateBuilder.True<TSearchResultItem>();
            predicate = predicate.And(item => item.ItemBucketAncestorId == itemBucketId);
            predicate = predicate.And(item => item.IsBucketed);
            return predicate;
        }
    }
}

Ok, so what’s going on in the class above? The AddSearchIndexMap() method is called by the Sitecore Configuration Factory to add database-to-search-index mappings — have a look at the patch configuration file further below. The code is looking up the appropriate search index for the content/context database.

The GetBucketedItemsCount() method gets the “predicate” from the GetSearchPredicate() method which basically says “Hey, I want an Item that has an ancestor Item Bucket Sitecore.Data.ID which is the same as the Sitecore.Data.ID passed to the method, and also this Item should be bucketed”.

The GetBucketedItemsCount() method then employs the Sitecore.ContentSearch API to get the result-set of the Items for the query, and returns the count of those Items.

Just as Commands, DataViews in Sitecore are instantiated by the CreateObject() method on MainUtil. I want to utilize the Sitecore Configuration Factory instead so that my nested configuration elements are instantiated and injected into my custom DataView. I built the following interface to make that possible:

using System.Collections;

using Sitecore.Collections;
using Sitecore.Data;
using Sitecore.Data.Items;
using Sitecore.Globalization;

namespace Sitecore.Sandbox.Web.UI.HtmlControls.DataViews
{
    public interface IDataViewBaseExtender
    {
        void FilterItems(ref ArrayList children, string filter);

        void GetChildItems(ItemCollection items, Item item);

        Database GetDatabase();

        Item GetItemFromID(string id, Language language, Version version);

        Item GetParentItem(Item item);

        bool HasChildren(Item item, string filter);

        void Initialize(string parameters);

        bool IsAncestorOf(Item ancestor, Item item);

        void SortItems(ArrayList children, string sortBy, bool sortAscending);
    }
}

All of the methods in the above interface correspond to virtual methods defined on the Sitecore.Web.UI.HtmlControl.DataViewBase class in Sitecore.Kernel.dll.

I then built the following abstract class which inherits from any DataView class that inherits from Sitecore.Web.UI.HtmlControl.DataViewBase:

using System.Collections;

using Sitecore.Collections;
using Sitecore.Configuration;
using Sitecore.Data;
using Sitecore.Data.Items;
using Sitecore.Diagnostics;
using Sitecore.Globalization;
using Sitecore.Web.UI.HtmlControls;

namespace Sitecore.Sandbox.Web.UI.HtmlControls.DataViews
{
    public abstract class ExtendedDataView<TDataView> : DataViewBase where TDataView : DataViewBase
    {
        protected IDataViewBaseExtender DataViewBaseExtender { get; private set; }

        protected ExtendedDataView()
        {
            DataViewBaseExtender = GetDataViewBaseExtender();
            EnsureDataViewBaseExtender();
        }

        protected virtual IDataViewBaseExtender GetDataViewBaseExtender()
        {
            string configPath = GetDataViewBaseExtenderConfigPath();
            Assert.IsNotNullOrEmpty(configPath, "GetDataViewBaseExtenderConfigPath() cannot return null or the empty string!");
            IDataViewBaseExtender dataViewBaseExtender = Factory.CreateObject(configPath, false) as IDataViewBaseExtender;
            Assert.IsNotNull(dataViewBaseExtender, string.Format("the IDataViewBaseExtender instance was not defined properly in '{0}'!", configPath));
            return dataViewBaseExtender;
        }

        protected abstract string GetDataViewBaseExtenderConfigPath();

        protected virtual void EnsureDataViewBaseExtender()
        {
            Assert.IsNotNull(DataViewBaseExtender, "GetDataViewBaseExtender() cannot return a null IDataViewBaseExtender instance!");
        }

        protected override void FilterItems(ref ArrayList children, string filter)
        {
            DataViewBaseExtender.FilterItems(ref children, filter);
        }

        protected override void GetChildItems(ItemCollection items, Item item)
        {
            DataViewBaseExtender.GetChildItems(items, item);
        }

        public override Database GetDatabase()
        {
            return DataViewBaseExtender.GetDatabase();
        }

        protected override Item GetItemFromID(string id, Language language, Version version)
        {
            return DataViewBaseExtender.GetItemFromID(id, language, version);
        }

        protected override Item GetParentItem(Item item)
        {
            return DataViewBaseExtender.GetParentItem(item);
        }

        public override bool HasChildren(Item item, string filter)
        {
            return DataViewBaseExtender.HasChildren(item, filter);
        }

        public override void Initialize(string parameters)
        {
            DataViewBaseExtender.Initialize(parameters);
        }

        public override bool IsAncestorOf(Item ancestor, Item item)
        {
            return DataViewBaseExtender.IsAncestorOf(ancestor, item);
        }

        protected override void SortItems(ArrayList children, string sortBy, bool sortAscending)
        {
            DataViewBaseExtender.SortItems(children, sortBy, sortAscending);
        }
    }
}

The GetDataViewBaseExtender() method gets the config path for the configuration-defined IDataViewBaseExtender — these IDataViewBaseExtender configuration definitions may or may not have nested configuration elements which will also be instantiated by the Sitecore Configuration Factory — from the abstract GetDataViewBaseExtenderConfigPath() method (subclasses must define this method).

The GetDataViewBaseExtender() then employs the Sitecore Configuration Factory to create this IDataViewBaseExtender instance, and return it to the caller (it’s being called in the class’ constructor).

If the instance is null, an exception is thrown.

All other methods in the above class delegate to methods with the same name and parameters on the IDataViewBaseExtender instance.

I then built the following subclass of the abstract class above:

using Sitecore.Web.UI.HtmlControls;

namespace Sitecore.Sandbox.Web.UI.HtmlControls.DataViews
{
    public class ExtendedMasterDataView : ExtendedDataView<MasterDataView>
    {
        protected override string GetDataViewBaseExtenderConfigPath()
        {
            return "extendedDataViews/extendedMasterDataView";
        }
    }
}

The above class is used for extending the MasterDataView in Sitecore.

It’s now time for the “real deal” DataView that does what we want: show the Bucketed Item counts for Item Buckets. The instance of the following class does just that:

using System.Collections;

using Sitecore.Buckets.Forms;
using Sitecore.Collections;
using Sitecore.Data;
using Sitecore.Data.Fields;
using Sitecore.Data.Items;
using Sitecore.Diagnostics;
using Sitecore.Globalization;

using Sitecore.Sandbox.Buckets.Providers.Items;
using Sitecore.Sandbox.Buckets.Settings;
using Sitecore.Sandbox.Buckets.Util.Methods;
using Sitecore.Sandbox.Web.UI.HtmlControls.DataViews;

namespace Sitecore.Sandbox.Buckets.Forms
{
    public class BucketedItemsCountDataView : BucketDataView, IDataViewBaseExtender
    {
        protected IBucketsContentEditorSettings BucketsContentEditorSettings { get; set; }

        protected IItemBucketsFeatureMethods ItemBucketsFeatureMethods { get; set; }

        protected IBucketedItemsCountProvider BucketedItemsCountProvider { get; set; }

        protected string SingularBucketedItemsDisplayNameFormat { get; set; }

        protected string PluralBucketedItemsDisplayNameFormat { get; set; }

        void IDataViewBaseExtender.FilterItems(ref ArrayList children, string filter)
        {
            FilterItems(ref children, filter);
        }

        void IDataViewBaseExtender.GetChildItems(ItemCollection children, Item parent)
        {
            GetChildItems(children, parent);
        }

        protected override void GetChildItems(ItemCollection children, Item parent)
        {

            base.GetChildItems(children, parent);
            if(!ShouldShowBucketedItemsCount())
            {
                return;
            }

            for (int i = children.Count - 1; i >= 0; i--)
            {
                Item child = children[i];
                if (IsItemBucket(child))
                {
                    int count = GetBucketedItemsCount(child);
                    Item alteredItem = GetCountDisplayNameItem(child, count);
                    children.RemoveAt(i);
                    children.Insert(i, alteredItem);
                }
            }
        }

        protected virtual bool ShouldShowBucketedItemsCount()
        {
            Assert.IsNotNull(BucketsContentEditorSettings, "BucketsContentEditorSettings must be defined in configuration!");
            return BucketsContentEditorSettings.ShowBucketedItemsCount;
        }

        protected virtual bool IsItemBucket(Item item)
        {
            Assert.IsNotNull(ItemBucketsFeatureMethods, "ItemBucketsFeatureMethods must be set in configuration!");
            Assert.ArgumentNotNull(item, "item");
            return ItemBucketsFeatureMethods.IsItemBucket(item);
        }

        protected virtual int GetBucketedItemsCount(Item itemBucket)
        {
            Assert.IsNotNull(BucketedItemsCountProvider, "BucketedItemsCountProvider must be set in configuration!");
            Assert.ArgumentNotNull(itemBucket, "itemBucket");
            return BucketedItemsCountProvider.GetBucketedItemsCount(itemBucket);
        }

        protected virtual Item GetCountDisplayNameItem(Item item, int count)
        {
            FieldList fields = new FieldList();
            item.Fields.ReadAll();

            foreach (Field field in item.Fields)
            {
                fields.Add(field.ID, field.Value);
            }

            int bucketedCount = GetBucketedItemsCount(item);
            string displayName = GetItemNameWithBucketedCount(item, bucketedCount);
            ItemDefinition itemDefinition = new ItemDefinition(item.ID, displayName, item.TemplateID, ID.Null);
            return new Item(item.ID, new ItemData(itemDefinition, item.Language, item.Version, fields), item.Database) { RuntimeSettings = { Temporary = true } };
        }

        protected virtual string GetItemNameWithBucketedCount(Item item, int bucketedCount)
        {
            Assert.IsNotNull(SingularBucketedItemsDisplayNameFormat, "SingularBucketedItemsDisplayNameFormat must be set in configuration!");
            Assert.IsNotNull(PluralBucketedItemsDisplayNameFormat, "PluralBucketedItemsDisplayNameFormat must be set in configuration!");

            if (bucketedCount == 1)
            {
                return ReplaceTokens(SingularBucketedItemsDisplayNameFormat, item, bucketedCount);
            }

            return ReplaceTokens(PluralBucketedItemsDisplayNameFormat, item, bucketedCount);
        }

        protected virtual string ReplaceTokens(string format, Item item, int bucketedCount)
        {
            Assert.ArgumentNotNullOrEmpty(format, "format");
            Assert.ArgumentNotNull(item, "item");
            string replaced = format;
            replaced = replaced.Replace("$displayName", item.DisplayName);
            replaced = replaced.Replace("$bucketedCount", bucketedCount.ToString());
            return replaced;
        }

        Database IDataViewBaseExtender.GetDatabase()
        {
            return GetDatabase();
        }

        Item IDataViewBaseExtender.GetItemFromID(string id, Language language, Version version)
        {
            return GetItemFromID(id, language, version);
        }

        Item IDataViewBaseExtender.GetParentItem(Item item)
        {
            return GetParentItem(item);
        }

        bool IDataViewBaseExtender.HasChildren(Item item, string filter)
        {
            return HasChildren(item, filter);
        }

        void IDataViewBaseExtender.Initialize(string parameters)
        {
            Initialize(parameters);
        }

        bool IDataViewBaseExtender.IsAncestorOf(Item ancestor, Item item)
        {
            return IsAncestorOf(ancestor, item);
        }

        void IDataViewBaseExtender.SortItems(ArrayList children, string sortBy, bool sortAscending)
        {
            SortItems(children, sortBy, sortAscending);
        }
    }
}

You might be saying to yourself “Mike, what in the world is going on here?” πŸ˜‰ Let me explain by starting with the GetChildItems() method.

The GetChildItems() method is used to build up the collection of child Items that display in the Content Tree when you expand a parent node. It does this by populating the ItemCollection instance passed to it.

The particular implementation above is delegating to the base class’ implementation to get the list of child Items for display in the Content Tree.

If we should not show the Bucketed Items count — this is determined by the ShouldShowBucketedItemsCount() method which just returns the boolean value set on the ShowBucketedItemsCount property of the injected IBucketsContentEditorSettings instance — the code just exits.

If we are to show the Bucketed Items count, we iterate over the ItemCollection collection and see if any of these child Items are Item Buckets — this is determined by the IsItemBucket() method.

If we find an Item Bucket, we get its count of Bucketed Items via the GetBucketedItemsCount() method which delegates to the GetBucketedItemsCount() method on the injected IBucketedItemsCountProvider instance.

Once we have the count, we call the GetCountDisplayNameItem() method which populates a FieldList collection with all of the fields defined on the Item Bucket; call the GetItemNameWithBucketedCount() method to get the new display name to show in the Content Tree — this method determines which display name format to use depending on whether we should use singular or pluralized messaging, and expands value on tokens via the ReplaceTokens() method — these tokens are defined in the patch configuration file below; creates an ItemDefinition instance so we can set the new display name; and returns a new Sitecore.Data.Items.Item instance to the caller.

No, don’t worry, we aren’t adding a new Item in the content tree but creating a fake “wrapper” of the real one, and replacing this in the ItemCollection.

We also have to fully implement the IDataViewBaseExtender interface. For most methods, I just delegate to the corresponding methods defined on the base class except for the IDataViewBaseExtender.GetChildItems() method which uses the GetChildItems() method defined above.

I then bridged everything above together via the following patch configuration file:

<configuration xmlns:patch="http://www.sitecore.net/xmlconfig/">
  <sitecore>
    <buckets>
      <extendedCommands>
        <toggleBucketedItemsCountCommand type="Sitecore.Sandbox.Buckets.Shell.Framework.Commands.ToggleBucketedItemsCountCommand, Sitecore.Sandbox" singleInstance="on">
          <BucketsContentEditorSettings ref="buckets/settings/bucketsContentEditorSettings" />
        </toggleBucketedItemsCountCommand>
      </extendedCommands>
      <providers>
        <items>
          <bucketedItemsCountProvider type="Sitecore.Sandbox.Buckets.Providers.Items.BucketedItemsCountProvider, Sitecore.Sandbox" singleInstance="true">
            <searchIndexMaps hint="raw:AddSearchIndexMap">
              <searchIndexMap database="master" searchIndex="sitecore_master_index" />
              <searchIndexMap database="web" searchIndex="sitecore_web_index" />
            </searchIndexMaps>
          </bucketedItemsCountProvider>
        </items>
      </providers>
      <settings>
        <bucketsContentEditorSettings type="Sitecore.Sandbox.Buckets.Settings.BucketsContentEditorSettings, Sitecore.Sandbox" singleInstance="true">
          <ItemBucketsFeatureDeterminer ref="determiners/features/itemBucketsFeatureDeterminer"/>
          <Registry ref="registries/registry" />
          <ShowBucketedItemsCountRegistryKey>/Current_User/UserOptions.View.ShowBucketedItemsCount</ShowBucketedItemsCountRegistryKey>
        </bucketsContentEditorSettings>
      </settings>
    </buckets>
    <commands>
      <command name="contenteditor:togglebucketeditemscount" type="Sitecore.Sandbox.Shell.Framework.Commands.ExtendedConfigCommand, Sitecore.Sandbox" extendedCommandPath="buckets/extendedCommands/toggleBucketedItemsCountCommand" />
    </commands>
    <contentSearch>
      <indexConfigurations>
        <defaultLuceneIndexConfiguration>
          <fieldMap>
            <fieldNames>
              <field fieldName="item_bucket_ancestor_id" storageType="YES" indexType="TOKENIZED" vectorType="NO" boost="1f" type="System.String" settingType="Sitecore.ContentSearch.LuceneProvider.LuceneSearchFieldConfiguration, Sitecore.ContentSearch.LuceneProvider">
                <analyzer type="Sitecore.ContentSearch.LuceneProvider.Analyzers.LowerCaseKeywordAnalyzer, Sitecore.ContentSearch.LuceneProvider" />
              </field>
              <field fieldName="is_bucketed" storageType="YES" indexType="TOKENIZED" vectorType="NO" boost="1f" type="System.Boolean" settingType="Sitecore.ContentSearch.LuceneProvider.LuceneSearchFieldConfiguration, Sitecore.ContentSearch.LuceneProvider" />
            </fieldNames>
          </fieldMap>
          <documentOptions>
            <fields hint="raw:AddComputedIndexField">
              <field fieldName="item_bucket_ancestor_id">Sitecore.Sandbox.Buckets.ContentSearch.ComputedFields.ItemBucketAncestorId, Sitecore.Sandbox</field>
              <field fieldName="is_bucketed">Sitecore.Sandbox.Buckets.ContentSearch.ComputedFields.IsBucketed, Sitecore.Sandbox</field>
            </fields>
          </documentOptions>
        </defaultLuceneIndexConfiguration>
      </indexConfigurations>
    </contentSearch>
    <dataviews>
      <dataview name="Master">
        <patch:attribute name="assembly">Sitecore.Sandbox</patch:attribute>
        <patch:attribute name="type">Sitecore.Sandbox.Web.UI.HtmlControls.DataViews.ExtendedMasterDataView</patch:attribute>
      </dataview>
    </dataviews>
    <extendedDataViews>
      <extendedMasterDataView type="Sitecore.Sandbox.Buckets.Forms.BucketedItemsCountDataView, Sitecore.Sandbox" singleInstance="true">
        <BucketsContentEditorSettings ref="buckets/settings/bucketsContentEditorSettings" />
        <ItemBucketsFeatureMethods ref="buckets/methods/itemBucketsFeatureMethods" />
        <BucketedItemsCountProvider ref="buckets/providers/items/bucketedItemsCountProvider" />
        <SingularBucketedItemsDisplayNameFormat>$displayName &lt;span style="font-style: italic; color: blue;"&gt;($bucketedCount bucketed item)&lt;span&gt;</SingularBucketedItemsDisplayNameFormat>
        <PluralBucketedItemsDisplayNameFormat>$displayName &lt;span style="font-style: italic; color: blue;"&gt;($bucketedCount bucketed items)&lt;span&gt;</PluralBucketedItemsDisplayNameFormat>
      </extendedMasterDataView>
    </extendedDataViews>
    <registries>
      <registry type="Sitecore.Sandbox.Web.UI.HtmlControls.Registries.Registry, Sitecore.Sandbox" singleInstance="true" />
    </registries>
  </sitecore>
</configuration>

bridge-collapse

Let’s see this in action:

bucketed-items-count-testing

As you can see, it is working as intended.

partay-hard

Magical, right?

magic

Well, not really — it just appears that way. πŸ˜‰

magic-not-really

If you have any thoughts on this, please drop a comment.

Prevent Unbucketable Sitecore Items from Being Moved to Bucket Folders

If you’ve been reading my posts lately, you have probably noticed I’ve been having a ton of fun with Sitecore Item Buckets. I absolutely love this feature in Sitecore.

As a matter of, I love Item Buckets so much, I’m doing a presentation on them just next week at the Greater Cincinnati Sitecore Users Group. If you’re in the neighborhood, stop by — even if it’s only to say “Hello”.

Anyways, back to the post.

I noticed the following grey box on the Items Buckets page on the Sitecore Documentation site:

item-buckets-unbucketable-import

This got me thinking: why can’t we build something in Sitecore to prevent this from happening in the first place?

In other words, why can’t we just say “sorry, you can’t move an unbucketable Item into a bucket folder”?

nope

So, that’s what I decided to do — build a solution that prevents this from happening. Let’s have a look at what I came up with.

I first created the following interface for classes whose instances will move a Sitecore item to a destination Item:

using Sitecore.Data.Items;

namespace Sitecore.Sandbox.Utilities.Items.Movers
{
    public interface IItemMover
    {
        bool DisableSecurity { get; set; }

        bool ShouldBeMoved(Item item, Item destination);

        void Move(Item item, Item destination);
    }
}

I then defined the following class which implements the interface above:

using Sitecore.Data.Items;
using Sitecore.Diagnostics;
using Sitecore.SecurityModel;

namespace Sitecore.Sandbox.Utilities.Items.Movers
{
    public class ItemMover : IItemMover
    {
        public bool DisableSecurity { get; set; }

        public virtual bool ShouldBeMoved(Item item, Item destination)
        {
            return item != null && destination != null;
        }

        public virtual void Move(Item item, Item destination)
        {
            if (!ShouldBeMoved(item, destination))
            {
                return;
            }

            if(DisableSecurity)
            {
                MoveWithoutSecurity(item, destination);
                return;
            }

            MoveWithoutSecurity(item, destination);
        }

        protected virtual void MoveWithSecurity(Item item, Item destination)
        {
            Assert.ArgumentNotNull(item, "item");
            Assert.ArgumentNotNull(destination, "destination");
            item.MoveTo(destination);
        }

        protected virtual void MoveWithoutSecurity(Item item, Item destination)
        {
            Assert.ArgumentNotNull(item, "item");
            Assert.ArgumentNotNull(destination, "destination");
            using (new SecurityDisabler())
            {
                item.MoveTo(destination);
            }
        }
    }
}

Callers of the above code can move an Item from one location to another with/without Sitecore security in place.

The ShouldBeMoved() above is basically a stub that will allow subclasses to define their own rules on whether an Item should be moved, depending on whatever rules must be met.

I then defined the following subclass of the class above which has its own rules on whether an Item should be moved (i.e. move this unbucketable Item out of a bucket folder if makes its way there):

using Sitecore.Data.Items;
using Sitecore.Diagnostics;

using Sitecore.Sandbox.Buckets.Util.Methods;
using Sitecore.Sandbox.Utilities.Items.Movers;

namespace Sitecore.Sandbox.Buckets.Util.Items.Movers
{
    public class UnbucketableItemMover : ItemMover
    {
        protected IItemBucketsFeatureMethods ItemBucketsFeatureMethods { get; set; }

        public override bool ShouldBeMoved(Item item, Item destination)
        {
            return base.ShouldBeMoved(item, destination)
                    && !IsItemBucketable(item)
                    && IsItemInBucket(item)
                    && !IsItemBucketFolder(item)
                    && IsItemBucketFolder(item.Parent)
                    && IsItemBucket(destination);
        }

        protected virtual bool IsItemBucketable(Item item)
        {
            EnsureItemBucketFeatureMethods();
            Assert.ArgumentNotNull(item, "item");
            return ItemBucketsFeatureMethods.IsItemBucketable(item);
        }

        protected virtual bool IsItemInBucket(Item item)
        {
            EnsureItemBucketFeatureMethods();
            Assert.ArgumentNotNull(item, "item");
            return ItemBucketsFeatureMethods.IsItemContainedWithinBucket(item);
        }

        protected virtual bool IsItemBucketFolder(Item item)
        {
            EnsureItemBucketFeatureMethods();
            Assert.ArgumentNotNull(item, "item");
            return ItemBucketsFeatureMethods.IsItemBucketFolder(item);
        }

        protected virtual bool IsItemBucket(Item item)
        {
            EnsureItemBucketFeatureMethods();
            Assert.ArgumentNotNull(item, "item");
            return ItemBucketsFeatureMethods.IsItemBucket(item);
        }

        protected virtual void EnsureItemBucketFeatureMethods()
        {
            Assert.IsNotNull(ItemBucketsFeatureMethods, "ItemBucketsFeatureMethods must be set in configuration!");
        }
    }
}

I’m injecting an instance of an IItemBucketsFeatureMethods class — this interface and its implementation are defined in my previous post; go have a look if you have not read that post so you can be familiar with the IItemBucketsFeatureMethods code — via the Sitecore Configuration Factory which contains common methods I am using in my Item Bucket code solutions (I will be using this in future posts).

The ShouldBeMoved() method basically says that an Item can only be moved when the Item and destination passed aren’t null — this is defined on the base class’ ShouldBeMoved() method; the Item isn’t bucketable; the Item is already in an Item Bucket; the Item isn’t a Bucket Folder; the Item’s parent Item is a Bucket Folder; and the destination is an Item Bucket.

Yes, the above sounds a bit confusing though there is a reason for it — I want to take an unbucketable Item out of a Bucket Folder and move it directly under the Item Bucket instead.

I then created the following class which contains methods that will serve as “item:moved” event handlers:

using System;
using System.Collections.Generic;

using Sitecore.Data;
using Sitecore.Data.Events;
using Sitecore.Data.Items;
using Sitecore.Events;

using Sitecore.Sandbox.Buckets.Util.Methods;
using Sitecore.Sandbox.Utilities.Items.Movers;

namespace Sitecore.Sandbox.Buckets.Events.Items.Move
{
    public class RemoveFromBucketFolderIfNotBucketableHandler
    {
        protected static SynchronizedCollection<ID> ItemsBeingProcessed { get; set; }

        protected IItemBucketsFeatureMethods ItemBucketsFeatureMethods { get; set; }

        protected IItemMover UnbucketableItemMover { get; set; }

        protected void OnItemMoved(object sender, EventArgs args)
        {
            Item item = GetItem(args);
            RemoveFromBucketFolderIfNotBucketable(item);
        }

        static RemoveFromBucketFolderIfNotBucketableHandler()
        {
            ItemsBeingProcessed = new SynchronizedCollection<ID>();
        }

        protected virtual Item GetItem(EventArgs args)
        {
            if (args == null)
            {
                return null;
            }

            return Event.ExtractParameter(args, 0) as Item;
        }

        protected void OnItemMovedRemote(object sender, EventArgs args)
        {
            Item item = GetItemRemote(args);
            RemoveFromBucketFolderIfNotBucketable(item);
        }

        protected virtual Item GetItemRemote(EventArgs args)
        {
            ItemMovedRemoteEventArgs remoteArgs = args as ItemMovedRemoteEventArgs;
            if (remoteArgs == null)
            {
                return null;
            }

            return remoteArgs.Item;
        }

        protected virtual void RemoveFromBucketFolderIfNotBucketable(Item item)
        {
            if(item == null)
            {
                return;
            }

            Item itemBucket = GetItemBucket(item);
            if (itemBucket == null)
            {
                return;
            }

            if(!ShouldBeMoved(item, itemBucket))
            {
                return;
            }

            AddItemBeingProcessed(item);
            MoveUnderItemBucket(item, itemBucket);
            RemoveItemBeingProcessed(item);
        }

        protected virtual bool IsItemBeingProcessed(Item item)
        {
            if (item == null)
            {
                return false;
            }

            return ItemsBeingProcessed.Contains(item.ID);
        }

        protected virtual void AddItemBeingProcessed(Item item)
        {
            if (item == null)
            {
                return;
            }

            ItemsBeingProcessed.Add(item.ID);
        }

        protected virtual void RemoveItemBeingProcessed(Item item)
        {
            if (item == null)
            {
                return;
            }

            ItemsBeingProcessed.Remove(item.ID);
        }

        protected virtual Item GetItemBucket(Item item)
        {
            if(ItemBucketsFeatureMethods == null || item == null)
            {
                return null;
            }

            return ItemBucketsFeatureMethods.GetItemBucket(item);
        }

        protected virtual bool ShouldBeMoved(Item item, Item itemBucket)
        {
            if(UnbucketableItemMover == null)
            {
                return false;
            }

            return UnbucketableItemMover.ShouldBeMoved(item, itemBucket);
        }

        protected virtual void MoveUnderItemBucket(Item item, Item itemBucket)
        {
            if (UnbucketableItemMover == null)
            {
                return;
            }

            UnbucketableItemMover.Move(item, itemBucket);
        }
    }
}

Both the OnItemMoved() and OnItemMovedRemote() methods extract the moved Item from their specific methods for getting the Item from the EventArgs instance. If that Item is null, the code exits.

Both methods pass their Item instance to the RemoveFromBucketFolderIfNotBucketable() method which ultimately attempts to grab an Item Bucket ancestor of the Item via the GetItemBucket() method. If no Item Bucket instance is returned, the code exits.

If an Item Bucket was found, the RemoveFromBucketFolderIfNotBucketable() method ascertains whether the Item should be moved — it makes a call to the ShouldBeMoved() method which just delegates to the IItemMover instance injected in via the Sitecore Configuration Factory (have a look at the patch configuration file below).

If the Item should not be moved, then the code exits.

If it should be moved, it is then passed to the MoveUnderItemBucket() method which delegates to the Move() method on the IItemMover instance.

You might be asking “Mike, what’s up with the ItemsBeingProcessed SynchronizedCollection of Item IDs?” I’m using this collection to maintain which Items are currently being moved so we don’t have racing conditions in code.

You might be thinking “Great, we’re done!”

no

We can’t just move an Item from one destination to another, especially when the user selected the first destination. We should let the user know that we will need to move the Item as it is unbucketable. Let’s not be evil.

evil

I created the following class whose Process() method will serve as a custom processor for both the <uiDragItemTo> and <uiMoveItems> pipelines of the Sitecore Client:

using System;
using System.Collections.Generic;
using System.Linq;

using Sitecore.Configuration;
using Sitecore.Data;
using Sitecore.Data.Items;
using Sitecore.Diagnostics;
using Sitecore.Text;
using Sitecore.Web.UI.Sheer;

using Sitecore.Sandbox.Buckets.Util.Methods;

namespace Sitecore.Sandbox.Buckets.Shell.Framework.Pipelines.MoveItems
{
    public class ConfirmMoveOfUnbucketableItem
    {
        protected string ItemIdsParameterName { get; set; }

        protected IItemBucketsFeatureMethods ItemBucketsFeatureMethods { get; set; }

        protected string ConfirmationMessageFormat { get; set; }

        public void Process(ClientPipelineArgs args)
        {
            Assert.ArgumentNotNull(args, "args");
            IEnumerable<string> itemIds = GetItemIds(args);
            if (itemIds == null || !itemIds.Any() || itemIds.Count() > 1)
            {
                return;
            }

            string targetId = GetTargetId(args);
            if (string.IsNullOrWhiteSpace(targetId))
            {
                return;
            }

            Database database = GetDatabase(args);
            if (database == null)
            {
                return;
            }

            Item targetItem = GetItem(database, targetId);
            if (targetItem == null || !IsItemBucketOrIsItemInBucket(targetItem))
            {
                return;
            }

            Item item = GetItem(database, itemIds.First());
            if (item == null || IsItemBucketable(item))
            {
                return;
            }

            Item itemBucket = GetItemBucket(targetItem);
            if (itemBucket == null)
            {
                return;
            }

            SetTokenValues(args, item, itemBucket);
            ConfirmMove(args);
        }

        protected virtual IEnumerable<string> GetItemIds(ClientPipelineArgs args)
        {
            Assert.ArgumentNotNull(args, "args");
            Assert.ArgumentNotNull(args.Parameters, "args.Parameters");
            string itemIdsParameterName = GetItemIdsParameterName(args);
            Assert.IsNotNullOrEmpty(itemIdsParameterName, "GetItemIdParameterName() cannot return null or the empty string!");
            return new ListString(itemIdsParameterName, '|');
        }

        protected virtual string GetItemIdsParameterName(ClientPipelineArgs args)
        {
            Assert.IsNotNullOrEmpty(ItemIdsParameterName, "ItemIdParameterName must be set in configuration!");
            Assert.ArgumentNotNull(args, "args");
            Assert.ArgumentNotNull(args.Parameters, "args.Parameters");
            return args.Parameters[ItemIdsParameterName];
        }

        protected virtual string GetTargetId(ClientPipelineArgs args)
        {
            Assert.ArgumentNotNull(args, "args");
            Assert.ArgumentNotNull(args.Parameters, "args.Parameters");
            return args.Parameters["target"];
        }

        protected virtual Database GetDatabase(ClientPipelineArgs args)
        {
            Assert.ArgumentNotNull(args, "args");
            Assert.ArgumentNotNull(args.Parameters, "args.Parameters");
            return Factory.GetDatabase(args.Parameters["database"]);
        }

        protected virtual Item GetItem(Database database, string itemId)
        {
            Assert.ArgumentNotNull(database, "database");
            Assert.ArgumentNotNullOrEmpty(itemId, "itemId");
            try
            {
                return database.GetItem(itemId);

            }
            catch(Exception ex)
            {
                Log.Error(ToString(), ex, this);
            }

            return null;
        }

        protected virtual bool IsItemBucketOrIsItemInBucket(Item item)
        {
            EnsureItemBucketsFeatureMethods();
            Assert.ArgumentNotNull(item, "item");
            return IsItemBucket(item) || IsItemInBucket(item);
        }

        protected virtual bool IsItemBucket(Item item)
        {
            EnsureItemBucketsFeatureMethods();
            Assert.ArgumentNotNull(item, "item");
            return ItemBucketsFeatureMethods.IsItemBucket(item);
        }

        protected virtual bool IsItemInBucket(Item item)
        {
            EnsureItemBucketsFeatureMethods();
            Assert.ArgumentNotNull(item, "item");
            return ItemBucketsFeatureMethods.IsItemContainedWithinBucket(item);
        }

        protected virtual bool IsItemBucketable(Item item)
        {
            EnsureItemBucketsFeatureMethods();
            Assert.ArgumentNotNull(item, "item");
            return ItemBucketsFeatureMethods.IsItemBucketable(item);
        }

        protected virtual Item GetItemBucket(Item item)
        {
            EnsureItemBucketsFeatureMethods();
            Assert.ArgumentNotNull(item, "item");
            if(!ItemBucketsFeatureMethods.IsItemBucket(item))
            {
                return ItemBucketsFeatureMethods.GetItemBucket(item);
            }

            return item;
        }

        protected virtual void SetTokenValues(ClientPipelineArgs args, Item item, Item itemBucket)
        {
            Assert.ArgumentNotNull(args, "args");
            Assert.ArgumentNotNull(args.Parameters, "args.Parameters");
            Assert.ArgumentNotNull(item, "item");
            Assert.ArgumentNotNull(itemBucket, "itemBucket");
            args.Parameters["$itemName"] = item.Name;
            args.Parameters["$itemBucketName"] = itemBucket.Name;
            args.Parameters["$itemBucketFullPath"] = itemBucket.Paths.FullPath;
        }

        protected virtual void ConfirmMove(ClientPipelineArgs args)
        {
            Assert.ArgumentNotNull(args, "args");
            if(args.IsPostBack)
            {
                if (args.Result == "yes")
                {
                    ClearResult(args);
                    return;
                }

                if (args.Result == "no")
                {
                    args.AbortPipeline();
                    return;
                }
            }
            else
            {
                SheerResponse.Confirm(GetConfirmationMessage(args));
                args.WaitForPostBack();
            }
        }

        protected virtual void ClearResult(ClientPipelineArgs args)
        {
            args.Result = string.Empty;
            args.IsPostBack = false;
        }

        protected virtual string GetConfirmationMessage(ClientPipelineArgs args)
        {
            Assert.IsNotNullOrEmpty(ConfirmationMessageFormat, "ConfirmationMessageFormat must be set in configuration!");
            Assert.ArgumentNotNull(args, "args");
            return ReplaceTokens(ConfirmationMessageFormat, args);
        }

        protected virtual string ReplaceTokens(string messageFormat, ClientPipelineArgs args)
        {
            Assert.ArgumentNotNullOrEmpty(messageFormat, "messageFormat");
            Assert.ArgumentNotNull(args, "args");
            Assert.ArgumentNotNull(args.Parameters, "args.Parameters");

            string message = messageFormat;
            message = message.Replace("$itemName", args.Parameters["$itemName"]);
            message = message.Replace("$itemBucketName", args.Parameters["$itemBucketName"]);
            message = message.Replace("$itemBucketFullPath", args.Parameters["$itemBucketFullPath"]);
            return message;
        }

        protected virtual void EnsureItemBucketsFeatureMethods()
        {
            Assert.IsNotNull(ItemBucketsFeatureMethods, "ItemBucketsFeatureMethods must be set in configuration!");
        }
    }
}

The Process() method above gets the Item ID for the Item that is being moved; the Item ID for the destination Item — this is referred to as the “target” in the code above; gets the Database instance of where we are moving this Item; the instances of both the Item and target Item; determines if the Target Item is a Bucket Folder or an Item Bucket; determines if the Item is unbucketable; and then the Item Bucket (this could be the target Item).

If any of of the instances above are null, the code exits.

If the Item is unbucketable but is being moved to a Bucket Folder or Item Bucket, we prompt the user with a confirmation dialog asking him/her whether he/she should like to continue given that the Item will be moved directly under the Item Bucket.

If the user clicks the ‘Ok’ button, the Item is moved. Otherwise, the pipeline is aborted and the Item will not be moved at all.

I then pieced all of the above together via the following patch configuration file:

<configuration xmlns:patch="http://www.sitecore.net/xmlconfig/">
  <sitecore>
    <buckets>
      <movers>
        <items>
          <unbucketableItemMover type="Sitecore.Sandbox.Buckets.Util.Items.Movers.UnbucketableItemMover, Sitecore.Sandbox" singleInstance="true">
            <DisableSecurity>true</DisableSecurity>
            <ItemBucketsFeatureMethods ref="buckets/methods/itemBucketsFeatureMethods" />
          </unbucketableItemMover>
        </items>
      </movers>
    </buckets>
    <events>
      <event name="item:moved">
        <handler type="Sitecore.Sandbox.Buckets.Events.Items.Move.RemoveFromBucketFolderIfNotBucketableHandler, Sitecore.Sandbox" method="OnItemMoved">
          <ItemBucketsFeatureMethods ref="buckets/methods/itemBucketsFeatureMethods" />
          <UnbucketableItemMover ref="buckets/movers/items/unbucketableItemMover" />
        </handler>
      </event>
      <event name="item:moved:remote">
        <handler type="Sitecore.Sandbox.Buckets.Events.Items.Move.RemoveFromBucketFolderIfNotBucketableHandler, Sitecore.Sandbox" method="OnItemMovedRemote">
          <ItemBucketsFeatureMethods ref="buckets/methods/itemBucketsFeatureMethods" />
          <UnbucketableItemMover ref="buckets/movers/items/unbucketableItemMover" />
        </handler>
      </event>
    </events>
    <processors>
      <uiDragItemTo>
        <processor patch:before="processor[@type='Sitecore.Buckets.Pipelines.UI.ItemDrag, Sitecore.Buckets' and @method='Execute']"
                   type="Sitecore.Sandbox.Buckets.Shell.Framework.Pipelines.MoveItems.ConfirmMoveOfUnbucketableItem, Sitecore.Sandbox" mode="on">
          <ItemIdsParameterName>id</ItemIdsParameterName>
          <ItemBucketsFeatureMethods ref="buckets/methods/itemBucketsFeatureMethods" />
          <ConfirmationMessageFormat>You are attempting to move the non-bucketable Item: $itemName to a bucket folder. If you continue, it will be moved directly under the Item Bucket: $itemBucketName ($itemBucketFullPath). Do you wish to continue?</ConfirmationMessageFormat>
        </processor>
      </uiDragItemTo>
      <uiMoveItems>
        <processor patch:before="processor[@type='Sitecore.Buckets.Pipelines.UI.ItemMove, Sitecore.Buckets' and @method='Execute']"
                     type="Sitecore.Sandbox.Buckets.Shell.Framework.Pipelines.MoveItems.ConfirmMoveOfUnbucketableItem, Sitecore.Sandbox" mode="on">
          <ItemIdsParameterName>items</ItemIdsParameterName>
          <ItemBucketsFeatureMethods ref="buckets/methods/itemBucketsFeatureMethods" />
          <ConfirmationMessageFormat>You are attempting to move the non-bucketable Item: $itemName to a bucket folder. If you continue, it will be moved directly under the Item Bucket: $itemBucketName ($itemBucketFullPath). Do you wish to continue?</ConfirmationMessageFormat>
        </processor>
      </uiMoveItems>
    </processors>
  </sitecore>
</configuration>

Let’s see how we did.

jenga-topple

Let’s move this unbucketable Item to an Item Bucket:

move-unbucketable-1

Yes, I’m sure I’m sure:

move-unbucketable-2

I was then prompted with the confirmation dialog as expected:

move-unbucketable-3

As you can see, the Item was placed directly under the Item Bucket:

move-unbucketable-4

If you have any thoughts on this, please drop a comment.

thats-all-folks

Prevent Duplicate Names of Bucketed Sitecore Items

In my previous post, I gave a solution that removes names of Bucket Folder Items from URLs in Sitecore, and also resolves those same URLs when they are called up in a browser.

However, that solution wasn’t complete — code is needed to ensure Bucketed Item names are unique given the solution assumes Bucketed Item names are unique (code in that solution uses the Sitecore.ContentSearch API to find an Item by name within an Item Bucket, and if there are two or more Items with the same name, only one will be returned — this will prevent the resolution of URLs for those other Bucketed page Items).

I decided to take up the challenge on continuing that solution over this previous weekend, and share what I built.

challenge

One thing to note: the solution that follows is not a complete solution for preventing duplicate Bucketed Item names as such a post could go on for ages — actually, I probably would still be writing the code for it. I leave the rest for you guys to do as a homework assignment. πŸ˜‰

Cat-ate-my-homework-GIF

I first defined the following interface to centralize common methods I have been using in my Sitecore Item Buckets code (I will be reusing this same interface and its implementation in future blog posts):

using Sitecore.Data.Items;

namespace Sitecore.Sandbox.Buckets.Util.Methods
{
    public interface IItemBucketsFeatureMethods
    {
        bool IsItemBucketFolder(Item item);

        bool IsItemContainedWithinBucket(Item item);

        bool IsItemBucketable(Item item);

        Item GetItemBucket(Item item);

        bool IsItemBucket(Item item);

        bool HasBucketedItemWithName(Item itemBucket, string itemName);
    }
}

The following class implements the interface above:

using Sitecore.Buckets.Extensions;
using Sitecore.Buckets.Managers;
using Sitecore.Data.Items;
using Sitecore.Diagnostics;

using Sitecore.Sandbox.Buckets.Providers.Items;

namespace Sitecore.Sandbox.Buckets.Util.Methods
{
    public class ItemBucketsFeatureMethods : IItemBucketsFeatureMethods
    {
        private IFindBucketedItemProvider FindBucketedItemProvider { get; set; }

        public virtual bool IsItemBucketFolder(Item item)
        {
            Assert.ArgumentNotNull(item, "item");
            return item.IsABucketFolder();
        }

        public virtual bool IsItemContainedWithinBucket(Item item)
        {
            Assert.ArgumentNotNull(item, "item");
            return BucketManager.IsItemContainedWithinBucket(item);
        }

        public virtual bool IsItemBucketable(Item item)
        {
            Assert.ArgumentNotNull(item, "item");
            return item.IsItemBucketable();
        }

        public virtual Item GetItemBucket(Item item)
        {
            Assert.ArgumentNotNull(item, "item");
            Item ancestor = item.GetParentBucketItemOrParent();
            if (!IsItemBucket(ancestor))
            {
                return null;
            }

            return ancestor;
        }

        public virtual bool IsItemBucket(Item item)
        {
            Assert.ArgumentNotNull(item, "item");
            return item.IsABucket();
        }

        public virtual bool HasBucketedItemWithName(Item itemBucket, string itemName)
        {
            EnsureFindBucketedItemProvider();
            Assert.ArgumentNotNull(itemBucket, "itemBucket");
            Assert.ArgumentNotNullOrEmpty(itemName, "itemName");
            Item item = FindBucketedItemProvider.FindBucketedItemByName(itemBucket, itemName);
            if(item == null)
            {
                return false;
            }

            return true;
        }

        protected virtual void EnsureFindBucketedItemProvider()
        {
            Assert.IsNotNull(FindBucketedItemProvider, "FindBucketedItemProvider must be set in configuration!");
        }
    }
}

I’m not going to go into details of the code above as it is self-explanatory.

However, I do want to call out that I am reusing the IFindBucketedItemProvider code from my previous post. I advise having a look at that code before moving forward.

I then defined the following class whose Process() method will serve as a processor of the <uiDragItemTo> and
<uiMoveItems> pipelines of the Sitecore Client:

using System;
using System.Collections.Generic;
using System.Linq;

using Sitecore.Configuration;
using Sitecore.Data;
using Sitecore.Data.Items;
using Sitecore.Diagnostics;
using Sitecore.Text;
using Sitecore.Web.UI.Sheer;

using Sitecore.Sandbox.Buckets.Util.Methods;

namespace Sitecore.Sandbox.Buckets.Shell.Framework.Pipelines.MoveItems
{
    public class HandleDuplicateBucketedItemName
    {
        protected string ItemIdsParameterName { get; set; }

        protected IItemBucketsFeatureMethods ItemBucketsFeatureMethods { get; set; }

        protected string RenameItemMessage { get; set; }

        public void Process(ClientPipelineArgs args)
        {
            Assert.ArgumentNotNull(args, "args");
            IEnumerable<string> itemIds = GetItemIds(args);
            if (itemIds == null || !itemIds.Any() || itemIds.Count() > 1)
            {
                return;
            }

            string targetId = GetTargetId(args);
            if (string.IsNullOrWhiteSpace(targetId))
            {
                return;
            }

            Database database = GetDatabase(args);
            if (database == null)
            {
                return;
            }

            Item targetItem = GetItem(database, targetId);
            if (targetItem == null)
            {
                return;
            }

            Item item = GetItem(database, itemIds.First());
            if (item == null)
            {
                return;
            }

            Item itemBucket = GetItemBucket(targetItem);
            if (itemBucket == null || !HasBucketedItemWithName(itemBucket, item.Name))
            {
                return;
            }

            PromptRenameItem(args, item);
        }

        protected virtual IEnumerable<string> GetItemIds(ClientPipelineArgs args)
        {
            Assert.ArgumentNotNull(args, "args");
            Assert.ArgumentNotNull(args.Parameters, "args.Parameters");
            string itemIdsParameterName = GetItemIdsParameterName(args);
            Assert.IsNotNullOrEmpty(itemIdsParameterName, "GetItemIdParameterName() cannot return null or the empty string!");
            return new ListString(itemIdsParameterName, '|');
        }

        protected virtual string GetItemIdsParameterName(ClientPipelineArgs args)
        {
            Assert.IsNotNullOrEmpty(ItemIdsParameterName, "ItemIdParameterName must be set in configuration!");
            Assert.ArgumentNotNull(args, "args");
            Assert.ArgumentNotNull(args.Parameters, "args.Parameters");
            return args.Parameters[ItemIdsParameterName];
        }

        protected virtual string GetTargetId(ClientPipelineArgs args)
        {
            Assert.ArgumentNotNull(args, "args");
            Assert.ArgumentNotNull(args.Parameters, "args.Parameters");
            return args.Parameters["target"];
        }

        protected virtual Database GetDatabase(ClientPipelineArgs args)
        {
            Assert.ArgumentNotNull(args, "args");
            Assert.ArgumentNotNull(args.Parameters, "args.Parameters");
            return Factory.GetDatabase(args.Parameters["database"]);
        }

        protected virtual Item GetItem(Database database, string itemId)
        {
            Assert.ArgumentNotNull(database, "database");
            Assert.ArgumentNotNullOrEmpty(itemId, "itemId");
            try
            {
                return database.GetItem(itemId);

            }
            catch(Exception ex)
            {
                Log.Error(ToString(), ex, this);
            }

            return null;
        }

        protected virtual Item GetItemBucket(Item item)
        {
            EnsureItemBucketsFeatureMethods();
            Assert.ArgumentNotNull(item, "item");
            if(!ItemBucketsFeatureMethods.IsItemBucket(item))
            {
                return ItemBucketsFeatureMethods.GetItemBucket(item);
            }

            return item;
        }

        protected virtual bool HasBucketedItemWithName(Item itemBucket, string bucketedItemName)
        {
            EnsureItemBucketsFeatureMethods();
            Assert.ArgumentNotNull(itemBucket, "itemBucket");
            Assert.ArgumentNotNullOrEmpty(bucketedItemName, "bucketedItemName");
            return ItemBucketsFeatureMethods.HasBucketedItemWithName(itemBucket, bucketedItemName);
        }

        protected virtual void PromptRenameItem(ClientPipelineArgs args, Item item)
        {
            Assert.ArgumentNotNull(args, "args");
            Assert.ArgumentNotNull(item, "item");
            if (args.IsPostBack)
            {
                if(!args.HasResult)
                {
                    args.AbortPipeline();
                    return;
                }

                GetProposedValidItemName(args.Result);
                RenameItem(item, GetProposedValidItemName(args.Result));
                ClearResult(args);
            }
            else
            {
                SheerResponse.Input(GetRenameItemMessage(), string.Empty);
                args.WaitForPostBack();
            }
        }

        protected virtual void ClearResult(ClientPipelineArgs args)
        {
            args.Result = string.Empty;
            args.IsPostBack = false;
        }

        protected virtual string GetProposedValidItemName(string itemName)
        {
            Assert.ArgumentNotNull(itemName, "itemName");
            return ItemUtil.ProposeValidItemName(itemName);
        }

        protected virtual void RenameItem(Item item, string name)
        {
            Assert.ArgumentNotNull(item, "item");
            Assert.ArgumentNotNullOrEmpty(name, "name");
            using (new EditContext(item, false, true))
            {
                item.Name = name;
            }
        }

        protected virtual string GetRenameItemMessage()
        {
            Assert.ArgumentNotNull(RenameItemMessage, "RenameItemMessage must be set in configuration!");
            return RenameItemMessage;
        }

        protected virtual void EnsureItemBucketsFeatureMethods()
        {
            Assert.IsNotNull(ItemBucketsFeatureMethods, "ItemBucketsFeatureMethods must be set in configuration!");
        }
    }
}

The Process() method above basically gets the Item IDs of the Items that are moving from the Parameters collection on the arguments object passed to it — these are stored under different keys in the Parameters collection by the <uiDragItemTo> and <uiMoveItems> pipelines, so I’m letting the Sitecore Configuration Factory pass in the name of that parameter for each (see the patch configuration file below).

If more than one Item ID is returned, the code exits.

The Process() method then gets the target Item’s ID; the Database instance; the target Item; and the instance of the Item we are moving. If any of these are null, it exits.

The code then attempts to get the Item Bucket for the target Item — this is done via the GetItemBucket() method which just delegates to the GetItemBucket() method on the IItemBucketsFeatureMethods instance, or returns the passed Item if it is an Item Bucket. If the returned Item is null, the code exits.

The Process() method then calls the HasBucketedItemWithName() — this method just makes a call to a method with the same name on the ItemBucketsFeatureMethods instance — to see if there is another Bucketed Item within the Item Bucket with the same name. If one is not found, we prompt the user for a new Item name, and rename the Item if one is supplied. If no Item name is supplied, we abort the pipeline completely to prevent the user from moving forward.

I do want to highlight one more thing. the RenameItem() method uses a Sitecore.Data.Items.EditContext instance when changing the Item name. I decided to use an instance of this class to have this change be silent and not log any update statistics as this was causing the Item to become un-bucketable after it was moved (no clue as to why this would happen).

I then plugged-in all of the code above via the following patch configuration file:

<configuration xmlns:patch="http://www.sitecore.net/xmlconfig/">
  <sitecore>
    <buckets>
      <methods>
        <itemBucketsFeatureMethods type="Sitecore.Sandbox.Buckets.Util.Methods.ItemBucketsFeatureMethods, Sitecore.Sandbox">
          <FindBucketedItemProvider ref="buckets/providers/items/findBucketedItemProvider" />
        </itemBucketsFeatureMethods>
      </methods>
    </buckets>
    <processors>
      <uiDragItemTo>
        <processor patch:before="processor[@type='Sitecore.Buckets.Pipelines.UI.ItemDrag, Sitecore.Buckets' and @method='Execute']"
                   type="Sitecore.Sandbox.Buckets.Shell.Framework.Pipelines.MoveItems.HandleDuplicateBucketedItemName, Sitecore.Sandbox" mode="on">
          <ItemIdsParameterName>id</ItemIdsParameterName>
          <ItemBucketsFeatureMethods ref="buckets/methods/itemBucketsFeatureMethods" />
          <RenameItemMessage>Duplicate bucketed Item names are not allowed.  Please enter in a new name for the item:</RenameItemMessage>
        </processor>
      </uiDragItemTo>
      <uiMoveItems>
        <processor patch:before="processor[@type='Sitecore.Buckets.Pipelines.UI.ItemMove, Sitecore.Buckets' and @method='Execute']"
                     type="Sitecore.Sandbox.Buckets.Shell.Framework.Pipelines.MoveItems.HandleDuplicateBucketedItemName, Sitecore.Sandbox" mode="on">
          <ItemIdsParameterName>items</ItemIdsParameterName>
          <ItemBucketsFeatureMethods ref="buckets/methods/itemBucketsFeatureMethods" />
          <RenameItemMessage>Duplicate bucketed Item names are not allowed.  Please enter in a new name for the item:</RenameItemMessage>
        </processor>
      </uiMoveItems>
    </processors>
  </sitecore>
</configuration>

plugged-in

Let’s take this for a spin.

Let’s test this out by dragging an Item to an Item Bucket that has a bucketed Item with the same name:

unique-name-move-1

Of course, I do:

unique-name-move-2

I gave it a unique name:

unique-name-move-3

As you can see, the Item was renamed and then moved:

unique-name-move-4

One thing to note: the Item will not be moved if the user clicks the ‘Cancel’ button in the dialog that asks for a new name.

Moreover, the above code only works when moving Items in the Sitecore Client. These pipeline processors will not run when moving Items via Sitecore API code (you’ll have to tap into one of the “move” related events, instead).

I’m going to omit sharing my testing of the “Move To” piece of the code above as it is using the same code. Trust me, it works. πŸ˜‰

If you have any thoughts on this, please drop a comment.

Omit Sitecore Bucket Folder Item Names from Page Item URLs

In my two previous posts — this post and this post — I used the Sitecore Rules Engine to determine how bucket folders in the Item Buckets feature should be constructed.

I love having the freedom and flexibility to be able to do this.

However, depending on how you generate these folder structures, you might end up with some pretty yucky — ahem, I mean “interesting” — URLs if you have Actions that generate nonsense bucket folder Item names for bucketed Items.

For example, in my previous post, I built a custom Action that reversed the Item ID of the bucketed Item to generated its bucket folder path:

bucketed-links-bucketed-item-page-bucket-folders-2

Yucky, right?

Yuck

The “out of the box” Item Buckets bucket-folder-structure-generating algorithm creates a nice structure based on when the bucketed Item was created, and this is more palatable when looking at it:

bucketed-links-bucketed-item-page-bucket-folders-1

However, we may not be able to always use this “out of the box” algorithm for whatever reason — who knows what requirements will make us do — so let’s explore some code that can clean up these yucky URLs.

clean-up

Let’s first tackle cleaning up the URL generated by the “out of the box” Sitecore.Links.LinkProvider class.

I decided to implement a custom Sitecore pipeline to clean up the URL generated by the GetItemUrl() of the LinkProvider class, and will call this pipeline from a subclass of it (this code is further down in this post).

If you’re going to create a custom pipeline, you’ll need an arguments object for it — this is technically known as a Parameter Object but I will stick with the name “arguments object” and “arguments class” for the class that these objects are instantiated from throughout this post.

The following class is the arguments class for my custom pipeline:

using System;

using Sitecore.Data.Items;
using Sitecore.Links;
using Sitecore.Pipelines;

namespace Sitecore.Sandbox.Buckets.Pipelines.GetBucketedItemLinkUrl
{
    public class GetBucketedItemLinkUrlArgs : PipelineArgs
    {
        public Func<Item, UrlOptions, string> GetItemUrl { get; set; }

        public UrlOptions UrlOptions { get; set; }

        public Item ItemBucket { get; set; }

        public Item BucketedItem { get; set; }

        public string DefaultUrl { get; set; }

        public string BucketedItemUrl { get; set; }
    }
}

I defined the following abstract class which all processors of the custom pipeline must inherit:

namespace Sitecore.Sandbox.Buckets.Pipelines.GetBucketedItemLinkUrl
{
    public abstract class GetBucketedItemLinkUrlProcessor
    {
        public abstract void Process(GetBucketedItemLinkUrlArgs args);
    }
}

All subclasses must implement the abstract Process method above which takes in the arguments object with the class type defined above.

The following class whose instance is used as the first processor of the custom pipeline checks whether required property values are set on the arguments object passed to the pipeline:

using Sitecore.Diagnostics;

namespace Sitecore.Sandbox.Buckets.Pipelines.GetBucketedItemLinkUrl
{
    public class EnsureParameters : GetBucketedItemLinkUrlProcessor
    {
        public override void Process(GetBucketedItemLinkUrlArgs args)
        {
            Assert.ArgumentNotNull(args, "args");
            if(!CanProcess(args))
            {
                args.AbortPipeline();
            }
        }

        protected virtual bool CanProcess(GetBucketedItemLinkUrlArgs args)
        {
            Assert.ArgumentNotNull(args, "args");
            return args.GetItemUrl != null
                    && args.BucketedItem != null
                    && !string.IsNullOrWhiteSpace(args.DefaultUrl);
        }
    }
}

The BucketedItem, DefaultUrl — this is the “default” URL generated by the GetItemUrl() method on the “out of the box” LinkProvider class, and GetItemUrl — this is a “pointer” to the GetItemUrl method on the LinkProvider class — properties are required by the custom pipeline when initially called, and these are checked here.

This next class who instance is used for the second processor of the pipeline does some vetting of the bucketed Item passed on the arguments object:

using Sitecore.Data.Items;
using Sitecore.Diagnostics;

using Sitecore.Buckets.Extensions;
using Sitecore.Buckets.Managers;

namespace Sitecore.Sandbox.Buckets.Pipelines.GetBucketedItemLinkUrl
{
    public class InspectBucketedItem : GetBucketedItemLinkUrlProcessor
    {
        public override void Process(GetBucketedItemLinkUrlArgs args)
        {
            Assert.ArgumentNotNull(args, "args");
            Assert.ArgumentNotNull(args.BucketedItem, "args.BucketedItem");

            if (!IsItemContainedWithinBucket(args.BucketedItem) || !IsParentBucketFolder(args.BucketedItem))
            {
                args.AbortPipeline();
            }
        }

        protected virtual bool IsItemContainedWithinBucket(Item item)
        {
            Assert.ArgumentNotNull(item, "item");
            return BucketManager.IsItemContainedWithinBucket(item);
        }

        protected virtual bool IsParentBucketFolder(Item item)
        {
            Assert.ArgumentNotNull(item, "item");
            return item.Parent.IsABucketFolder();
        }
    }
}

The instance of the class above checks to see whether the bucketed Item is a descendant of an Item Bucket, and also sees if it is contained within a bucket folder. If one of these is not true, the pipeline is aborted.

The following class whose instance serves as the third processor of the custom pipeline gets the bucketed Item’s Item Bucket:

using Sitecore.Data.Items;
using Sitecore.Diagnostics;

using Sitecore.Buckets.Extensions;

namespace Sitecore.Sandbox.Buckets.Pipelines.GetBucketedItemLinkUrl
{
    public class SetItemBucket : GetBucketedItemLinkUrlProcessor
    {
        public override void Process(GetBucketedItemLinkUrlArgs args)
        {
            Assert.ArgumentNotNull(args, "args");
            Assert.ArgumentNotNull(args.BucketedItem, "args.BucketedItem");
            Item item = GetItemBucket(args.BucketedItem);
            if(!IsItemBucket(item))
            {
                args.AbortPipeline();
                return;
            }

            args.ItemBucket = item;
        }

        protected virtual Item GetItemBucket(Item bucketedItem)
        {
            Assert.ArgumentNotNull(bucketedItem, "bucketedItem");
            return bucketedItem.GetParentBucketItemOrParent();
        }

        protected virtual bool IsItemBucket(Item item)
        {
            Assert.ArgumentNotNull(item, "item");
            return item != null && item.IsABucket();
        }
    }
}

Code in the GetItemBucket() method uses the GetParentBucketItemOrParent() extension method of the Item class — this lives in the Sitecore.Buckets.Extensions namespace in Sitecore.Buckets.dll — to get the Item Bucket ancestor for the bucketed Item.

If the Item returned is not an Item Bucket — this check is done in the IsItemBucket() method via another Item class extension method, the IsABucket() method, which also lives in the same namespace as the extension method mentioned above — then the pipeline is aborted.

This next class whose instance serves as the last processor of the custom pipeline generates a URL without the bucket folder names in it:

using Sitecore.Diagnostics;

namespace Sitecore.Sandbox.Buckets.Pipelines.GetBucketedItemLinkUrl
{
    public class SetBucketedItemUrl : GetBucketedItemLinkUrlProcessor
    {
        public override void Process(GetBucketedItemLinkUrlArgs args)
        {
            Assert.ArgumentNotNull(args, "args");
            Assert.ArgumentNotNull(args.GetItemUrl, "args.GetItemUrlMethod");
            Assert.ArgumentNotNull(args.ItemBucket, "args.ItemBucket");
            Assert.ArgumentNotNullOrEmpty(args.DefaultUrl, "args.DefaultUrl");
            string bucketedItemUrl = GetBucketedItemUrl(args);
            if(string.IsNullOrWhiteSpace(bucketedItemUrl))
            {
                args.AbortPipeline();
                return;
            }

            args.BucketedItemUrl = bucketedItemUrl;
        }

        protected virtual string GetBucketedItemUrl(GetBucketedItemLinkUrlArgs args)
        {
            Assert.ArgumentNotNull(args, "args");
            Assert.ArgumentNotNull(args.GetItemUrl, "args.GetItemUrlMethod");
            Assert.ArgumentNotNull(args.ItemBucket, "args.ItemBucket");
            Assert.ArgumentNotNullOrEmpty(args.DefaultUrl, "args.DefaultUrl");
            string itemBucketUrl = args.GetItemUrl(args.ItemBucket, args.UrlOptions);
            if (string.IsNullOrWhiteSpace(itemBucketUrl))
            {
                return string.Empty;
            }

            string baseUrl = GetExtensionlessUrl(itemBucketUrl);
            string pageUrlPart = GetUrlPagePart(args.DefaultUrl);
            if (string.IsNullOrWhiteSpace(pageUrlPart))
            {
                return string.Empty;
            }

            return string.Join("/", baseUrl, pageUrlPart);
        }

        protected virtual string GetUrlPagePart(string url)
        {
            Assert.ArgumentNotNullOrEmpty(url, "url");
            int lastForwardSlashIndex = url.LastIndexOf("/");
            if (lastForwardSlashIndex < 0)
            {
                return string.Empty;
            }

            return url.Substring(lastForwardSlashIndex + 1);
        }

        protected virtual string GetExtensionlessUrl(string url)
        {
            Assert.ArgumentNotNullOrEmpty(url, "url");
            string extensionlessUrl = url;
            int lastDotIndex = extensionlessUrl.LastIndexOf(".");
            if (lastDotIndex < 0)
            {
                return extensionlessUrl;
            }

            return extensionlessUrl.Substring(0, lastDotIndex);
        }
    }
}

I’m not going to go too much into the details of all the code above. It is basically getting the web page name piece of the URL set in the DefaultUrl property on the arguments object, and appends it to the end of the URL of the Item Bucket without an extension (who uses extensions on URLs anyhow? Β―\_(ツ)_/Β― That’s like so 5 years ago. πŸ˜‰ ).

The resulting URL is set in the BucketedItemUrl property of the arguments object.

Now that we have code to generate bucket-folder-less URLs, we need to use it. I built the following subclass of Sitecore.Links.LinkProvider which calls it:

using System.Collections.Specialized;

using Sitecore.Buckets.Extensions;
using Sitecore.Data.Items;
using Sitecore.Diagnostics;
using Sitecore.Links;
using Sitecore.Pipelines;

using Sitecore.Sandbox.Buckets.Pipelines.GetBucketedItemLinkUrl;

namespace Sitecore.Sandbox.Buckets.LinkProviders
{
    public class BucketedItemLinkProvider : LinkProvider
    {
        private string GetBucketedItemLinkUrlPipeline { get; set; }

        public override void Initialize(string name, NameValueCollection config)
        {
            Assert.ArgumentNotNullOrEmpty(name, "name");
            Assert.ArgumentNotNull(config, "config");
            base.Initialize(name, config);
            GetBucketedItemLinkUrlPipeline = config["getBucketedItemLinkUrlPipeline"];
        }

        public override string GetItemUrl(Item item, UrlOptions options)
        {
            string url = GetItemUrlFromBase(item, options);
            bool shouldGetBucketedItemUrl = !string.IsNullOrWhiteSpace(GetBucketedItemLinkUrlPipeline)
                                                && !string.IsNullOrWhiteSpace(url)
                                                && IsParentBucketFolder(item);
            if (!shouldGetBucketedItemUrl)
            {
                return url;
            }

            string bucketedItemUrl = GetBucketedItemUrl(item, options, url);
            if(string.IsNullOrWhiteSpace(bucketedItemUrl))
            {
                return url;
            }

            return bucketedItemUrl;
        }

        protected virtual bool IsParentBucketFolder(Item item)
        {
            Assert.ArgumentNotNull(item, "item");
            return item.Parent.IsABucketFolder();
        }

        protected virtual string GetBucketedItemUrl(Item bucketedItem, UrlOptions options, string defaultUrl)
        {
            GetBucketedItemLinkUrlArgs args = new GetBucketedItemLinkUrlArgs
            {
                GetItemUrl = ((someItem, urlOptions) => GetItemUrlFromBase(someItem, urlOptions)),
                UrlOptions = options,
                BucketedItem = bucketedItem,
                DefaultUrl = defaultUrl
            };

            CorePipeline.Run(GetBucketedItemLinkUrlPipeline, args);
            return args.BucketedItemUrl;
        }

        protected virtual string GetItemUrlFromBase(Item item, UrlOptions options)
        {
            return base.GetItemUrl(item, options);
        }
    }
}

I’ve extended the Initialize() method on the base LinkProvider class to read in the name of the custom pipeline (this is set in the patch configuration file further down in this post).

The overridden GetItemUrl() method grabs the URL generated by the same method on the base class for the passed Item. If the custom pipeline’s name is set; the generated URL isn’t null or empty; and the item lives in a bucket folder, the custom pipeline is called with the required parameters set on the arguments object.

If the custom pipeline generated a URL, it is returned to the caller. If not, the URL generated by the base class’ GetItemUrl() method is returned.

You might be thinking “Excellent, Mike! We have code that fixes the issue. Are we done yet?” Not so fast, dear reader — we need write code so Sitecore can resolve these bucket-folder-less URLs.

Since the URLs no longer contain the full path to the bucketed Item, we need a way to find this Item under the Item Bucket. I created the following interface for classes that can find a bucketed Item by name whose ancestor is the Item Bucket:

using Sitecore.Data.Items;

namespace Sitecore.Sandbox.Buckets.Providers.Items
{
    public interface IFindBucketedItemProvider
    {
        Item FindBucketedItemByName(Item bucketItem, string bucketedItemName);
    }
}

The following class implements the interface above:

using System;
using System.Linq;
using System.Linq.Expressions;

using Sitecore.Buckets.Util;
using Sitecore.ContentSearch;
using Sitecore.ContentSearch.Linq;
using Sitecore.ContentSearch.Linq.Utilities;
using Sitecore.ContentSearch.SearchTypes;
using Sitecore.ContentSearch.Utilities;
using Sitecore.Data;
using Sitecore.Data.Items;
using Sitecore.Diagnostics;

namespace Sitecore.Sandbox.Buckets.Providers.Items
{
    public class FindBucketedItemProvider : IFindBucketedItemProvider
    {
        private ID bucketFolderTemplateId;
        private ID BucketFolderTemplateId
        {
            get
            {
                if(ID.IsNullOrEmpty(bucketFolderTemplateId))
                {
                    bucketFolderTemplateId = GetBucketFolderTemplateId();
                }

                return bucketFolderTemplateId;
            }
        }

        private string PreviewSearchIndexName { get; set; }

        private string LiveSearchIndexName { get; set; }

        private ISearchIndex previewSearchIndex;
        private ISearchIndex PreviewSearchIndex
        {
            get
            {
                if (previewSearchIndex == null)
                {
                    previewSearchIndex = GetPreviewSearchIndex();
                }

                return previewSearchIndex;
            }
        }

        private ISearchIndex liveSearchIndex;
        private ISearchIndex LiveSearchIndex
        {
            get
            {
                if (liveSearchIndex == null)
                {
                    liveSearchIndex = GetLiveSearchIndex();
                }

                return liveSearchIndex;
            }
        }

        public virtual Item FindBucketedItemByName(Item bucketItem, string bucketedItemName)
        {
            Assert.ArgumentCondition(!ID.IsNullOrEmpty(BucketFolderTemplateId), "BucketFolderTemplateId", "GetBucketFolderTemplateId() cannot return a null or empty Item ID!");
            Assert.ArgumentNotNull(bucketItem, "bucketItem");
            Assert.ArgumentNotNull(bucketedItemName, "bucketedItemName");

            ISearchIndex searchIndex = GetSearchIndex();
            using (IProviderSearchContext searchContext = searchIndex.CreateSearchContext())
            {
                var predicate = GetSearchPredicate<SearchResultItem>(bucketItem.ID, bucketedItemName);
                IQueryable<SearchResultItem> query = searchContext.GetQueryable<SearchResultItem>().Filter(predicate);
                SearchResults<SearchResultItem> results = query.GetResults();
                if (results.Count() < 1)
                {
                    return null;
                }

                SearchHit<SearchResultItem> hit = results.Hits.First();
                return hit.Document.GetItem();
            }
        }

        protected virtual ISearchIndex GetSearchIndex()
        {
            if (Context.PageMode.IsPreview)
            {
                Assert.IsNotNull(PreviewSearchIndex, "PreviewSearchIndex is null. Double-check the SearchIndexName configuration setting!");
                return PreviewSearchIndex;
            }

            Assert.IsNotNull(LiveSearchIndex, "LiveSearchIndex is null. Double-check the SearchIndexName configuration setting!");
            return LiveSearchIndex;
        }

        protected virtual ISearchIndex GetPreviewSearchIndex()
        {
            Assert.IsNotNullOrEmpty(PreviewSearchIndexName, "PreviewSearchIndexName is empty. Double-check its configuration setting!");
            return GetSearchIndex(PreviewSearchIndexName);
        }

        protected virtual ISearchIndex GetLiveSearchIndex()
        {
            Assert.IsNotNullOrEmpty(LiveSearchIndexName, "LiveSearchIndexName is empty. Double-check its configuration setting!");
            return GetSearchIndex(LiveSearchIndexName);
        }

        protected virtual ISearchIndex GetSearchIndex(string searchIndexName)
        {
            Assert.ArgumentNotNullOrEmpty(searchIndexName, "searchIndexName");
            return ContentSearchManager.GetIndex(searchIndexName);
        }

        protected virtual Expression<Func<T, bool>> GetSearchPredicate<T>(ID bucketItemId, string bucketedItemName) where T : SearchResultItem
        {
            var predicate = PredicateBuilder.True<T>();
            predicate = predicate.And(item => item.Paths.Contains(bucketItemId));
            predicate = predicate.And(item => item.TemplateId != BucketFolderTemplateId);
            predicate = predicate.And(item => item.Parent != bucketItemId);
            predicate = predicate.And(item => item.ItemId != bucketItemId);
            predicate = predicate.And(item => string.Equals(item.Name, bucketedItemName, StringComparison.CurrentCultureIgnoreCase));
            return predicate;
        }

        protected virtual ID GetBucketFolderTemplateId()
        {
            return BucketConfigurationSettings.BucketTemplateId;
        }
    }
}

I’m leveraging the Sitecore.ContentSearch API in the class above to find a bucketed Item with a given name — this is passed as a parameter to the FindBucketedItemByName() method — which is a descendant of the passed Item Bucket.

The GetSearchPredicate() method builds up a “predicate” which basically says “hey, we need an Item that is a descendant of the Item Bucket who is not a bucket folder; isn’t a child of the Item Bucket; isn’t the Item Bucket itself; and has a certain name (though we are ignoring case here)”, and is used by the Sitecore.ContentSearch API code in the FindBucketedItemByName() method.

“Mike, what’s up with the two ISearchIndex instances on the above class?” I have defined two here: one for when we are in Preview mode — I’m using the master search index here — and the other for when we aren’t — this uses the web search index instead.

If results are found, we return the Item instance from the first result in the results collection to the caller.

“Mike, could there ever be multiple Items returned?” Yes, this could happen if we have more than one bucketed Item with the same name, and only the first one in the results collection will be returned. In a future blog post, I will share a solution which will enforce unique Item names for bucketed Items.

Now that we have code that can find a bucketed Item by name under an Item Bucket, we need a custom Item Resolver — this is just a custom <httpRequestBegin> pipeline processor — that uses an instance of the class above to set the context Item for these bucket-folder-less URLs.

The following class does just that:

using System;
using System.Collections.Generic;
using System.Linq;

using Sitecore.Buckets.Extensions;
using Sitecore.Data.Items;
using Sitecore.Diagnostics;
using Sitecore.Pipelines.HttpRequest;

using Sitecore.Sandbox.Buckets.Providers.Items;

namespace Sitecore.Sandbox.Buckets.Pipelines.HttpRequest
{
    public class BucketedItemResolver : HttpRequestProcessor
    {
        private List<string> TargetSites { get; set; }

        private IFindBucketedItemProvider FindBucketedItemProvider { get; set; }

        public BucketedItemResolver()
        {
            TargetSites = new List<string>();
        }

        public override void Process(HttpRequestArgs args)
        {
            Assert.ArgumentNotNull(args, "args");
            if(!ShouldProcess(args))
            {
                return;
            }

            StartProfilerOperation();
            string path = MainUtil.DecodeName(args.Url.ItemPath);
            if (string.IsNullOrWhiteSpace(path))
            {
                EndProfilerOperation();
                return;
            }

            int lastForwardSlashIndex = path.LastIndexOf("/");
            if (lastForwardSlashIndex < 0)
            {
                EndProfilerOperation();
                return;
            }

            string parentPath = path.Substring(0, lastForwardSlashIndex);
            Item parentItem = args.GetItem(parentPath);
            if(parentItem == null)
            {
                EndProfilerOperation();
                return;
            }

            if (!parentItem.IsABucket())
            {
                EndProfilerOperation();
                return;
            }

            string bucketedItemName = path.Substring(lastForwardSlashIndex + 1);
            Item bucketedItem = FindBucketedItemByName(parentItem, bucketedItemName);
            if(bucketedItem == null)
            {
                EndProfilerOperation();
                return;
            }

            Context.Item = bucketedItem;
            EndProfilerOperation();
        }

        protected virtual bool ShouldProcess(HttpRequestArgs args)
        {
            return Context.Item == null
                    && Context.Database != null
                    && IsTargetSite()
                    && !string.IsNullOrWhiteSpace(args.Url.ItemPath);
        }

        protected virtual bool IsTargetSite()
        {
            return Context.Site != null
                    && TargetSites != null
                    && TargetSites.Any(site => string.Equals(site, Context.Site.Name, StringComparison.CurrentCultureIgnoreCase));
        }

        protected virtual void StartProfilerOperation()
        {
            Profiler.StartOperation("Resolve current bucketed item.");
        }

        protected virtual void EndProfilerOperation()
        {
            Profiler.EndOperation();
        }

        protected virtual Item FindBucketedItemByName(Item bucketItem, string bucketedItemName)
        {
            Assert.IsNotNull(FindBucketedItemProvider, "IFindBucketedItemProvider must be set in configuration!");
            return FindBucketedItemProvider.FindBucketedItemByName(bucketItem, bucketedItemName);
        }
    }
}

Not to go too much into all of the code above, the Process() method basically determines whether it should move forward on processing the request.

When should it do that? If there isn’t already context Item set; the context Database is set; the request is being made in a targeted site — basically this is just a list of site names sourced in the patch configuration file below which is a list of websites we want this code to run in (we don’t want to this code to run in the “shell” website which is what the Sitecore Desktop and Content Editor use); and have an Item path, then the Process() method should continue.

Other code in the Process() method is extracting out the parent’s page’s Item path; grabs an instance of the parent Item; determines whether it is an Item Bucket — if it’s not, then the code exits; the name of the page Item from URL; and then passes the parent Item and Item name to the FindBucketedItemByName() method which delegates to the FindBucketedItemByName() method on the IFindBucketedItemProvider instance to find the bucketed Item.

If a bucketed Item was found, the Process() method sets this as the context Item. Otherwise, it just exits.

I’m also using profiling code in the above class just as can be seen in the “out of the box” Sitecore.Pipelines.HttpRequest.ItemResolver class — this lives in Sitecore.Kernel.dll.

I then super-glued all of the code above in the following patch configuration file:

<configuration xmlns:patch="http://www.sitecore.net/xmlconfig/">
  <sitecore>
    <buckets>
      <providers>
        <items>
          <findBucketedItemProvider type="Sitecore.Sandbox.Buckets.Providers.Items.FindBucketedItemProvider, Sitecore.Sandbox">
            <PreviewSearchIndexName>sitecore_master_index</PreviewSearchIndexName>
            <LiveSearchIndexName>sitecore_web_index</LiveSearchIndexName>
          </findBucketedItemProvider>
        </items>
      </providers>
    </buckets>
    <linkManager>
      <providers>
        <add name="sitecore">
          <patch:attribute name="type">Sitecore.Sandbox.Buckets.LinkProviders.BucketedItemLinkProvider, Sitecore.Sandbox</patch:attribute>
          <patch:attribute name="getBucketedItemLinkUrlPipeline">getBucketedItemLinkUrl</patch:attribute>
        </add>
      </providers>
    </linkManager>
    <pipelines>
      <getBucketedItemLinkUrl>
        <processor type="Sitecore.Sandbox.Buckets.Pipelines.GetBucketedItemLinkUrl.EnsureParameters, Sitecore.Sandbox" />
        <processor type="Sitecore.Sandbox.Buckets.Pipelines.GetBucketedItemLinkUrl.InspectBucketedItem, Sitecore.Sandbox" />
        <processor type="Sitecore.Sandbox.Buckets.Pipelines.GetBucketedItemLinkUrl.SetItemBucket, Sitecore.Sandbox" />
        <processor type="Sitecore.Sandbox.Buckets.Pipelines.GetBucketedItemLinkUrl.SetBucketedItemUrl, Sitecore.Sandbox" />
      </getBucketedItemLinkUrl>
      <httpRequestBegin>
        <processor patch:before="processor[@type='Sitecore.Pipelines.HttpRequest.ItemResolver, Sitecore.Kernel']"
                   type="Sitecore.Sandbox.Buckets.Pipelines.HttpRequest.BucketedItemResolver, Sitecore.Sandbox">
          <TargetSites hint="list">
            <site>website</site>
          </TargetSites>
          <FindBucketedItemProvider ref="buckets/providers/items/findBucketedItemProvider" />
        </processor>
      </httpRequestBegin>
    </pipelines>
  </sitecore>
</configuration>

Let’s see if this works.

Let’s insert some bucketed Item links into this Rich Text field on my home Item:

bucketed-links-insert-link-rtf

Let’s insert an internal link to this Item:

bucketed-links-insert-link-1

Let’s insert another link to this Item:

bucketed-links-insert-link-2

Let’s insert yet another internal link — let’s insert a link to this Item:

bucketed-links-insert-link-3

After publishing and navigating to my home page, I see this in the html for the links:

bucketed-links-html-rendered

After clicking on the first link, I’m brought to the bucketed Item but have a look at the URL:

bucketed-links-bucketed-item-page

As you can see it worked!

When I finally got this working, I found myself doing a happy dance:

techno-chicken

techno-chickens

If you have any thoughts on this, please drop a comment.
