Upload Files via the Sitecore UploadWatcher to a Configuration Specified Media Library Folder

In my previous to last post, I discussed the Sitecore UploadWatcher — a Sitecore.IO.FileWatcher which uploads files to the Media Library when files are dropped into the /upload directory of your Sitecore website root.

Unfortunately, in the “out of the box” solution, files are uploaded directly under the Media Library root (/sitecore/media library). Imagine having to sift through all kinds of Media Library Items and folders just to find the image that you are looking for. Such would be an arduous task at best.

I decided to dig through Sitecore.Kernel.dll to see why this is the case, and discovered why: the FileCreated() method on the Sitecore.Resources.Media.MediaCreator class uses an empty Sitecore.Resources.Media.MediaCreatorOptions instance. In order for the file to be uploaded to a specified location in the Media Library, the Destination property on the Sitecore.Resources.Media.MediaCreatorOptions instance must be set, or it will be uploaded directly to the Media Library root.

Here’s the good news: the FileCreated() method is declared virtual, so why not subclass it and then override this method to include some custom logic to set the Destination property on the MediaCreatorOptions instance?

I did just that in the following class:

using System.IO;

using Sitecore.Configuration;
using Sitecore.Data.Items;
using Sitecore.Diagnostics;
using Sitecore.IO;
using Sitecore.Pipelines.GetMediaCreatorOptions;
using Sitecore.Resources.Media;

namespace Sitecore.Sandbox.Resources.Media
{
    public class MediaCreator : Sitecore.Resources.Media.MediaCreator
    {
        private string UploadLocation { get; set; }

        public override void FileCreated(string filePath)
        {
            Assert.ArgumentNotNullOrEmpty(filePath, "filePath");
            if (string.IsNullOrWhiteSpace(UploadLocation))
            {
                base.FileCreated(filePath);
                return;
            }

            SetContext();
            lock (FileUtil.GetFileLock(filePath))
            {
                string destination = GetMediaItemDestination(filePath);
                if (FileUtil.IsFolder(filePath))
                {
                    MediaCreatorOptions options = MediaCreatorOptions.Empty;
                    options.Destination = destination;
                    options.Build(GetMediaCreatorOptionsArgs.FileBasedContext);
                    this.CreateFromFolder(filePath, options);
                }
                else
                {
                    MediaCreatorOptions options = MediaCreatorOptions.Empty;
                    options.Destination = destination;
                    long length = new FileInfo(filePath).Length;
                    options.FileBased = (length > Settings.Media.MaxSizeInDatabase) || Settings.Media.UploadAsFiles;
                    options.Build(GetMediaCreatorOptionsArgs.FileBasedContext);
                    this.CreateFromFile(filePath, options);
                }
            }
        }

        protected virtual void SetContext()
        {
            if (Context.Site == null)
            {
                Context.SetActiveSite("shell");
            }
        }

        protected virtual string GetMediaItemDestination(string filePath)
        {
            if(string.IsNullOrWhiteSpace(UploadLocation))
            {
                return null;
            }

            string fileNameNoExtension = Path.GetFileNameWithoutExtension(filePath);
            string itemName = ItemUtil.ProposeValidItemName(fileNameNoExtension);
            return string.Format("{0}/{1}", UploadLocation, itemName);
        }
    }
}

The UploadLocation property in the class above is to be defined in Sitecore Configuration — see the patch include configuration file below — and then populated via the Sitecore Configuration Factory when the class is instantiated (yes, I’m defining this class in Sitecore Configuration as well).

Most of the logic in the FileCreated() method above comes from its base class Sitecore.Resources.Media.MediaCreator. I had to copy and paste most of this code from its base class’ FileCreated() method as I couldn’t just delegate to the base class’ FileCreated() method — I needed to set the Destination property on the MediaCreatorOptions instance.

The Destination property on the MediaCreatorOptions instance is being set to be the UploadLocation plus the Media Library Item name — I determine this full path in the GetMediaItemDestination() method.

Unfortunately, I also had to bring in the SetContext() method from the base class since it’s declared private — this method is needed in the FileCreated() method to ensure we have a context site defined.

Now, we need a way to set an instance of the above in the Creator property on the Sitecore.Sandbox.Resources.Media.MediaProvider instance. Unfortunately, there was no easy way to do this without having to subclass the Sitecore.Sandbox.Resources.Media.MediaProvider class, and then set the Creator property via its constructor:

using Sitecore.Configuration;

namespace Sitecore.Sandbox.Resources.Media
{
    public class MediaProvider : Sitecore.Resources.Media.MediaProvider
    {
        private MediaCreator MediaCreator { get; set; }

        public MediaProvider()
        {
            OverrideMediaCreator();
        }

        protected virtual void OverrideMediaCreator()
        {
            Sitecore.Resources.Media.MediaCreator mediaCreator = GetMediaCreator();
            if (mediaCreator == null)
            {
                return;
            }

            Creator = mediaCreator;
        }

        protected virtual Sitecore.Resources.Media.MediaCreator GetMediaCreator()
        {
            return Factory.CreateObject("mediaLibrary/mediaCreator", false) as MediaCreator;
        }
    }
}

The OverrideMediaCreator() method above tries to get an instance of a Sitecore.Resources.Media.MediaCreator using the Sitecore Configuration Factory — it delegates to the GetMediaCreator() method to get this instance — and then set it on the Creator property of its base class if the MediaCreator obtained from the GetMediaCreator() method isn’t null.

If it is null, it just exits out — there is a default instance created in the Sitecore.Resources.Media.MediaCreator base class, so that one would be used instead.

I then replaced the “out of the box” Sitecore.Resources.Media.MediaProvider with the new one above, and also defined the MediaCreator above in the following patch include configuration file:

<configuration xmlns:patch="http://www.sitecore.net/xmlconfig/">
  <sitecore>
    <mediaLibrary>
      <mediaProvider patch:instead="mediaProvider[@type='Sitecore.Resources.Media.MediaProvider, Sitecore.Kernel']"
                     type="Sitecore.Sandbox.Resources.Media.MediaProvider, Sitecore.Sandbox" />
      <mediaCreator type="Sitecore.Sandbox.Resources.Media.MediaCreator, Sitecore.Sandbox">
        <UploadLocation>/sitecore/media library/uploaded</UploadLocation>
      </mediaCreator>
  </mediaLibrary>
  </sitecore>
</configuration>

Let’s see how we did.

As you can see, I have an empty uploaded Media Library folder:

upload-watcher-not-uploaded-to-folder

Let’s move an image into the /upload folder of my Sitecore instance:

upload-watcher-upload-to-folder

After reloading the “uploaded” Media Library folder, I see that the image was uploaded to it:

upload-watcher-uploaded-to-folder

I would also to like to mention that this solution will also work if there is no uploaded folder in the Media Library — it will be created during upload process.

If you have any thoughts on this, please share in a comment.

Advertisements

Augment the Sitecore UploadWatcher to Delete Files from the Upload Directory After Uploading to the Media Library

In my previous post I discussed the Sitecore UploadWatcher — a Sitecore.IO.FileWatcher which monitors the /upload directory of your Sitecore instance and uploads files dropped into that directory into the Media Library.

One thing I could never find in the UploadWatcher is functionality to delete files in the /upload directory after they are uploaded into the Media Library — if you know of an “out of the box” way of doing this, please drop a comment.

After peeking into Sitecore.Resources.Media.UploadWatcher using .NET Reflector, I discovered I could add this functionality quite easily since its Created() method — this method handles the uploading of the files into the Media Library by delegating to Sitecore.Resources.Media.MediaManager.Creator.FileCreated() — is overridable. In theory, all I would need to do would be to subclass the UploadWatcher class; override the Created() method; delegate to the base class’ Created() method to handle the upload of the file to the Media Library; then delete the file once the base class’ Create() method was done executing.

After coding, experimenting and refactoring, I built the following class that subclasses Sitecore.Resources.Media.UploadWatcher:

using System;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using System.Xml;

using Sitecore.Configuration;
using Sitecore.Diagnostics;
using Sitecore.IO;
using Sitecore.Resources.Media;
using Sitecore.Xml;

namespace Sitecore.Sandbox.Resources.Media
{
    public class CleanupUploadWatcher : UploadWatcher
    {
        private IEnumerable<string> PathsToIgnore { get; set; }

        private IEnumerable<string> FileNamePartsToIgnore { get; set; }

        private bool ShouldDeleteAfterUpload { get; set; }

        public CleanupUploadWatcher()
            : base()
        {
            Initialize();
        }

        private void Initialize()
        {
            IEnumerable<XmlNode> configNodes = GetIgnoreConfigNodes();
            PathsToIgnore = GetPathsToIgnore(configNodes);
            FileNamePartsToIgnore = GetFileNamePartsToIgnore(configNodes);
            ShouldDeleteAfterUpload = GetShouldDeleteAfterUpload();
        }

        protected virtual IEnumerable<XmlNode> GetIgnoreConfigNodes()
        {
            string configNodeRoot = GetConfigNodeRoot();
            if (string.IsNullOrWhiteSpace(configNodeRoot))
            {
                return Enumerable.Empty<XmlNode>();
            }

            XmlNode rootNode = Factory.GetConfigNode(configNodeRoot);
            if (rootNode == null)
            {
                return Enumerable.Empty<XmlNode>();
            }

            return XmlUtil.GetChildNodes(rootNode, true);
        }

        protected virtual string GetConfigNodeRoot()
        {
            return "mediaLibrary/watcher/ignoreList";
        }

        protected virtual IEnumerable<string> GetPathsToIgnore(IEnumerable<XmlNode> nodes)
        {
            if (IsEmpty(nodes))
            {
                return Enumerable.Empty<string>();
            }

            HashSet<string> pathsToIgnore = new HashSet<string>();
            foreach (XmlNode node in nodes)
            {
                string containsValue = XmlUtil.GetAttribute("contains", node);
                if (ShouldAddContainsValue(containsValue, node, "ignorepath"))
                {
                    pathsToIgnore.Add(containsValue);
                }
            }

            return pathsToIgnore;
        }

        protected virtual IEnumerable<string> GetFileNamePartsToIgnore(IEnumerable<XmlNode> nodes)
        {
            if (IsEmpty(nodes))
            {
                return Enumerable.Empty<string>();
            }

            HashSet<string> partsToIgnore = new HashSet<string>();
            foreach (XmlNode node in nodes)
            {
                string containsValue = XmlUtil.GetAttribute("contains", node);
                if (ShouldAddContainsValue(containsValue, node, "ignore"))
                {
                    partsToIgnore.Add(containsValue);
                }
            }

            return partsToIgnore;
        }

        protected virtual bool ShouldAddContainsValue(string containsValue, XmlNode node, string targetNodeName)
        {
            return !string.IsNullOrWhiteSpace(containsValue)
                    && node != null
                    && string.Equals(node.Name, targetNodeName, StringComparison.OrdinalIgnoreCase);
        }

        protected static bool IsEmpty<T>(IEnumerable<T> collection)
        {
            return collection == null || !collection.Any();
        }

        protected override void Created(string filePath)
        {
            Assert.ArgumentNotNullOrEmpty(filePath, "filePath");
            if (!ShouldIgnoreFile(filePath))
            {
                base.Created(filePath);
                DeleteFile(filePath);
            }
        }

        protected virtual bool GetShouldDeleteAfterUpload()
        {
            XmlNode node = Factory.GetConfigNode("watchers/media/additionalSettings");
            if (node == null)
            {
                return false;
            }

            string deleteAfterUploadValue = XmlUtil.GetAttribute("deleteAfterUpload", node);
            if(string.IsNullOrWhiteSpace(deleteAfterUploadValue))
            {
                return false;
            }

            bool shouldDelete;
            bool.TryParse(deleteAfterUploadValue, out shouldDelete);
            return shouldDelete;
        }

        protected virtual bool ShouldIgnoreFile(string filePath)
        {
            Assert.ArgumentNotNullOrEmpty(filePath, "filePath");
            foreach (string path in PathsToIgnore)
            {
                if (ContainsSubstring(filePath, path))
                {
                    return true;
                }
            }

            string fileName = Path.GetFileName(filePath);
            foreach (string part in FileNamePartsToIgnore)
            {
                if(ContainsSubstring(fileName, part))
                {
                    return true;
                }
            }

            return false;
        }

        protected virtual bool ContainsSubstring(string value, string substring)
        {
            if(string.IsNullOrWhiteSpace(value) || string.IsNullOrWhiteSpace(substring))
            {
                return false;
            }

            return value.IndexOf(substring, StringComparison.OrdinalIgnoreCase) > -1;
        }

        protected virtual void DeleteFile(string filePath)
        {
            Assert.ArgumentNotNullOrEmpty(filePath, "filePath");
            if(!ShouldDeleteAfterUpload)
            {
                return;
            }

            try
            {
                FileUtil.Delete(filePath);
            }
            catch(Exception ex)
            {
                Log.Error(ToString(), ex, this);
            }
        }
    }
}

You might thinking “Mike, there is more going on in here than just delegating to the base class’ Created() method and deleting the file. Well, you are correct — I had to do a few things further than what I thought I needed to do, and I’ll explain why.

I had to duplicate the logic — actually I wrote my own logic — to parse the Sitecore configuration which defines the substrings of file names and paths to ignore since these collections on the base UploadWatcher class are private — subclasses cannot access these collections — in order to prevent the code from deleting a file that should be ignored.

I also wedged in configuration with code to turn off the delete functionality if needed.

I then created the following patch include configuration file to hold the configuration setting to turn the delete functionality on/off:

<configuration xmlns:patch="http://www.sitecore.net/xmlconfig/">
  <sitecore>
    <watchers>
      <media>
        <additionalSettings deleteAfterUpload="true" />
      </media>
    </watchers>
  </sitecore>
</configuration>

I then registered the new CleanupUploadWatcher in the Web.config — please see my previous post which explains why this is needed:

<system.webServer>
    <modules runAllManagedModulesForAllRequests="true">

      <!-- stuff here -->

      <!-- <add type="Sitecore.Resources.Media.UploadWatcher, Sitecore.Kernel" name="SitecoreUploadWatcher" /> -->
      <add type="Sitecore.Sandbox.Resources.Media.CleanupUploadWatcher, Sitecore.Sandbox" name="SitecoreUploadWatcher" />

      <!-- more stuff down here -->

    </modules>

    <!-- and more stuff down here -->

<system.webServer>

Let’s see this in action!

As you can see, there is no Media Library Item in the root of my Media Library (/sitecore/media library) — this is where the UploadWatcher uploads the file to:

cleanup-uploadwatcher-media-library-no-file

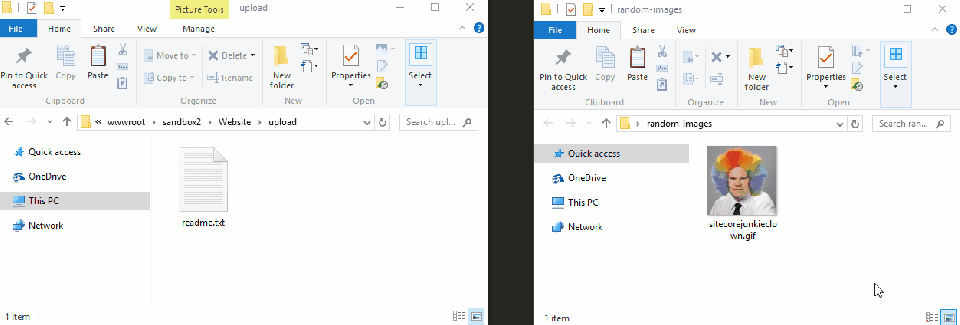

I then copied an image from a folder on my Desktop to the /upload directory of my Sitecore instance:

cleanup-uploadwatcher-move-file

As you can see above, the image is deleted after it is dropped.

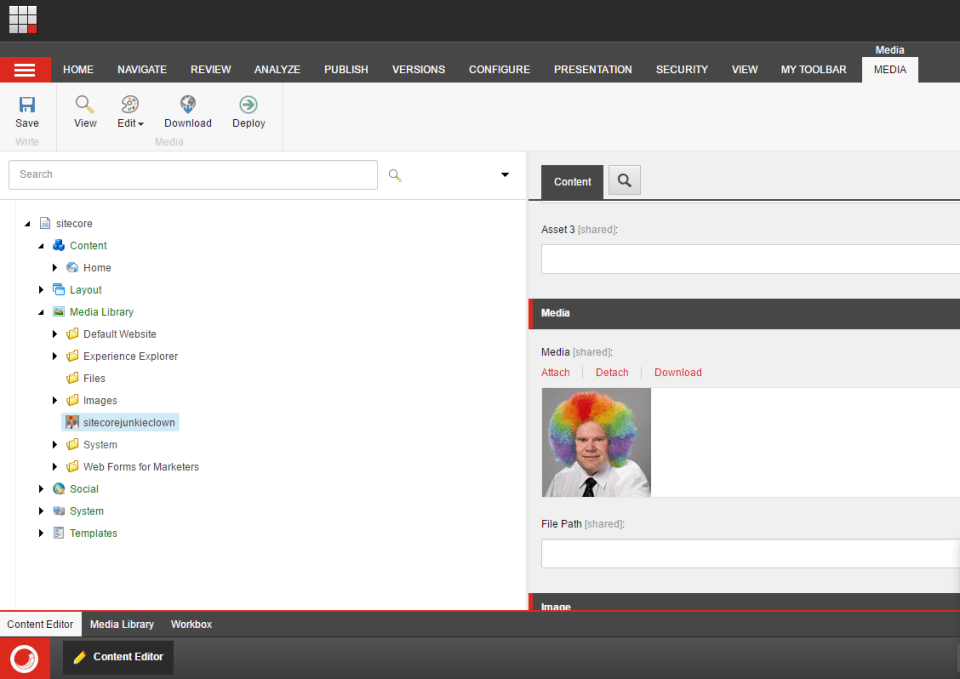

I then went back to my Media Library and refreshed. As you can see here, the file was uploaded:

cleanup-uploadwatcher-media-library-file

If you have any thoughts on this or suggestions on making it better, please share in a comment.

Automagic File Uploads to the Media Library via the “Out of the Box” UploadWatcher in Sitecore

In a previous post I gave a proof of concept on a custom Content Editor Image field which gives content authors the ability to download an image from a URL and save to the downloaded image to the Media Library.

During my testing of this solution, I noticed some odd behavior where I was seeing my image being uploaded twice to the Media Library — one Media Library Item being placed in a folder selected by the user and then another being placed right under the Media Library root Item (/sitecore/media library).

At first I thought I had a bug in my code though could not track it down. I even made many attempts at refactoring the code I had, thinking I was missing something during the debugging process. Still, to no avail, the “bug” was popping its head up during my testing.

However, after a few more passes at refactoring, the “bug” magically disappeared. I figured “hey, I somehow fixed it but have no idea how. Let’s move forward on writing a blog post.”

Unfortunately, the “bug” popped up again when writing my last post. I was quite taken aback given I was repurposing most of the code from the previous solution with the “bug”, and had thought I fixed it. Trust me, I was completely baffled.

Then it dawned on me: I was using the /upload folder in those two solutions — I was placing downloaded images I retrieved from the internet via code into the /upload directory of my Sitecore instance — and remembered Sitecore had an “out of the box” feature which uploads images that are placed into the /upload directory into the Media Library automatically (btw, I remember this feature has existed since I started on Sitecore 9 years ago, so it’s been around for a while; I only forgot about it because I haven’t had any clients use it for many years). Once I changed where I was saving these images on disk, the “bug” magically disappeared.

So that mysterious and baffling — not to mention frustrating — experience brings me to this post. How does Sitecore know there is an image in the /upload directory ready to be uploaded into the Media Library?

Let me introduce you to the UploadWatcher, a Sitecore.IO.FileWatcher which lives in the Sitecore.Resources.Media namespace in Sitecore.Kernel.dll — if you don’t know what a Sitecore FileWatcher is, please see my post on what they are and how to create a custom one in Sitecore.

Like all FileWatchers in Sitecore, the UploadWatcher is defined in the Web.config under /configuration/system.webServer/modules:

upload-watcher-config-0

You might be asking “Mike, why are these defined in the Web.config and not in a patch include configuration file?” Well, all Sitecore FileWatchers are essentially HTTP Modules and, unfortunately, that’s where they must be defined.

How does the UploadWatcher know to monitor the /upload directory in the website root of my Sitecore instance? Well, this is defined in Sitecore configuration under /configuration/sitecore/settings/setting[@name=’MediaFolder’]:

upload-watcher-config-1

You can use a patch configuration file to change the above value if you do not want the UploadWatcher to read from the /upload directory.

The UploadWatcher instance also checks other parts of Sitecore configuration. The following configuration is used specifically by the UploadWatcher:

upload-watcher-config-2-a

It appears you can also change things in the above configuration but I would suggest you don’t unless you have a good reason to do so.

The UploadWatcher also reads the following Sitecore configuration:

upload-watcher-config-3-a

What’s the above configuration all about? Basically, the UploadWatcher instance loads these into a private collection on itself, and uses this collection when checking to ignore files with certain substrings in their file names. You can also include elements that define substrings in a file path to be ignored — you would do so by using <ignorepath contains=”some substring” /> elements. These elements would be siblings of the <ignore /> elements, and are read into a separate private collection on the UploadWatcher instance.

In my next post, I will give an example on how to add functionality to the UploadWatcher. Until then, keep on Sitecoring.

Download Random Giphy Images and Save to the Media Library Via a Custom Content Editor Image Field in Sitecore

In my previous post I created a custom Content Editor image field in the Sitecore Experience Platform. This custom image field gives content authors the ability to download an image from outside of their Sitecore instance; save the image to the Media Library; and then map that resulting Media Library Item to the custom Image field on an Item in the content tree.

Building that solution was a great way to spend a Friday night (and even the following Saturday morning) — though I bet some people would argue watching cat videos on YouTube might be better way to spend a Friday night — and even gave me the opportunity to share that solution with you guys.

After sharing this post on Twitter, Sitecore MVP Kam Figy replied to that tweet with the following:

This gave me an idea: why not modify the solution from my previous post to give the ability to download a random image from Giphy via their the API?

You might be asking yourself “what is this Giphy thing?” Giphy is basically a site that allows users to upload images — more specifically animated GIFs — and then associate those uploaded images with tags. These tags are used for finding images on their site and also through their API.

You might be now asking “what’s the point of Giphy?” The point is to have fun and share a laugh; animated GIFs can be a great way of achieving these.

Some smart folks out there have built integrations into other software platforms which give users the ability pull images from the Giphy API. An example of this can be seen in Slack messaging application.

As a side note, if you aren’t on the Sitecore Community Slack, you probably should be. This is the fastest way to get help, share ideas and even have some good laughs from close to 1000 Sitecore developers, architects and marketers from around the world in real-time. If you would like to join the Sitecore Community Slack, please let me know and I will send you an invite though please don’t ask for an invite in comments section below on this post. Instead reach out to me on Twitter: @mike_i_reynolds. You can also reach out to Sitecore MVP Akshay Sura: @akshaysura13.

Here’s an example of me calling up an image using some tags in one of the channels on the Sitecore Community Slack using the Giphy integration for Slack:

giphy-image-slack

There really isn’t anything magical about the Giphy API — all you have to do is send an HTTP request with some query string parameters. Giphy’s API will then give you a response in JSON:

giphy-image-json

Before I dig into the solution below, I do want to let you know I will not be talking about all of the code in the solution. Most of the code was repurposed from my previous post. If you have not read my previous post, please read it before moving forward so you have a full understanding of how this works.

Moreover, do note there is probably no business value in using the following solution as is — it was built for fun on another Friday night and Saturday morning. πŸ˜‰

To get data out of this JSON response, I decided to use Newtonsoft.Json. Why did I choose this? It was an easy decision: Newtonsoft.Json comes with Sitecore “out of the box” so it was convenient for me to choose this as a way to parse the JSON coming from the Giphy API.

I created the following model classes with JSON to C# property mappings:

using Newtonsoft.Json;

namespace Sitecore.Sandbox.Providers
{
    public class GiphyData
    {
        [JsonProperty("type")]
        public string Type { get; set; }

        [JsonProperty("id")]
        public string Id { get; set; }

        [JsonProperty("url")]
        public string Url { get; set; }

        [JsonProperty("image_original_url")]
        public string ImageOriginalUrl { get; set; }

        [JsonProperty("image_url")]
        public string ImageUrl { get; set; }

        [JsonProperty("image_mp4_url")]
        public string ImageMp4Url { get; set; }

        [JsonProperty("image_frames")]
        public string ImageFrames { get; set; }

        [JsonProperty("image_width")]
        public string ImageWidth { get; set; }

        [JsonProperty("image_height")]
        public string ImageHeight { get; set; }

        [JsonProperty("fixed_height_downsampled_url")]
        public string FixedHeightDownsampledUrl { get; set; }

        [JsonProperty("fixed_height_downsampled_width")]
        public string FixedHeightDownsampledWidth { get; set; }

        [JsonProperty("fixed_height_downsampled_height")]
        public string FixedHeightDownsampledHeight { get; set; }

        [JsonProperty("fixed_width_downsampled_url")]
        public string FixedWidthDownsampledUrl { get; set; }

        [JsonProperty("fixed_width_downsampled_width")]
        public string FixedWidthDownsampledWidth { get; set; }

        [JsonProperty("fixed_width_downsampled_height")]
        public string FixedWidthDownsampledHeight { get; set; }

        [JsonProperty("fixed_height_small_url")]
        public string FixedHeightSmallUrl { get; set; }

        [JsonProperty("fixed_height_small_still_url")]
        public string FixedHeightSmallStillUrl { get; set; }

        [JsonProperty("fixed_height_small_width")]
        public string FixedHeightSmallWidth { get; set; }

        [JsonProperty("fixed_height_small_height")]
        public string FixedHeightSmallHeight { get; set; }

        [JsonProperty("fixed_width_small_url")]
        public string FixedWidthSmallUrl { get; set; }

        [JsonProperty("fixed_width_small_still_url")]
        public string FixedWidthSmallStillUrl { get; set; }

        [JsonProperty("fixed_width_small_width")]
        public string FixedWidthSmallWidth { get; set; }

        [JsonProperty("fixed_width_small_height")]
        public string FixedWidthSmallHeight { get; set; }

        [JsonProperty("username")]
        public string Username { get; set; }

        [JsonProperty("caption")]
        public string Caption { get; set; }
    }
}
using Newtonsoft.Json;

namespace Sitecore.Sandbox.Providers
{
    public class GiphyMeta
    {
        [JsonProperty("status")]
        public int Status { get; set; }

        [JsonProperty("msg")]
        public string Message { get; set; }
    }
}
using Newtonsoft.Json;

namespace Sitecore.Sandbox.Providers
{
    public class GiphyResponse
    {
        [JsonProperty("data")]
        public GiphyData Data { get; set; }

        [JsonProperty("meta")]
        public GiphyMeta Meta { get; set; }
    }
}

Every property above in every class represents a JSON property/object in the response coming back from the Giphy API.

Now, we need a way to make a request to the Giphy API. I built the following interface whose instances will do just that:

namespace Sitecore.Sandbox.Providers
{
    public interface IGiphyImageProvider
    {
        GiphyData GetRandomGigphyImageData(string tags);
    }
}

The following class implements the interface above:

using System;
using System.Net;

using Sitecore.Diagnostics;

using Newtonsoft.Json;
using System.IO;

namespace Sitecore.Sandbox.Providers
{
    public class GiphyImageProvider : IGiphyImageProvider
    {
        private string RequestUrlFormat { get; set; }

        private string ApiKey { get; set; }

        public GiphyData GetRandomGigphyImageData(string tags)
        {
            Assert.IsNotNullOrEmpty(RequestUrlFormat, "RequestUrlFormat");
            Assert.IsNotNullOrEmpty(ApiKey, "ApiKey");
            Assert.ArgumentNotNullOrEmpty(tags, "tags");
            string response = GetJsonResponse(GetRequestUrl(tags));
            if(string.IsNullOrWhiteSpace(response))
            {
                return new GiphyData();
            }

            try
            {
                GiphyResponse giphyResponse = JsonConvert.DeserializeObject<GiphyResponse>(response);
                if(giphyResponse != null && giphyResponse.Meta != null && giphyResponse.Meta.Status == 200 && giphyResponse.Data != null)
                {
                    return giphyResponse.Data;
                }
            }
            catch(Exception ex)
            {
                Log.Error(ToString(), ex, this);
            }

            return new GiphyData();
        }

        protected virtual string GetRequestUrl(string tags)
        {
            Assert.ArgumentNotNullOrEmpty(tags, "tags");
            return string.Format(RequestUrlFormat, ApiKey, Uri.EscapeDataString(tags));
        }

        protected virtual string GetJsonResponse(string requestUrl)
        {
            Assert.ArgumentNotNullOrEmpty(requestUrl, "requestUrl");
            try
            {
                WebRequest request = HttpWebRequest.Create(requestUrl);
                request.Method = "GET";
                string json;
                using (WebResponse response = request.GetResponse())
                {
                    using (Stream responseStream = response.GetResponseStream())
                    {
                        using (StreamReader sr = new StreamReader(responseStream))
                        {
                            return sr.ReadToEnd();
                        }
                    }
                }
            }
            catch (Exception ex)
            {
                Log.Error(ToString(), ex, this);
            }

            return string.Empty;
        }
    }
}

Code in the methods above basically take in tags for the type of random image we want from Giphy; build up the request URL — the template of the request URL and API key (I’m using the public key which is open for developers to experiment with) are populated via the Sitecore Configuration Factory (have a look at the patch include configuration file further down in this post to get an idea of how the properties of this class are populated); make the request to the Giphy API; get back the response; hand the response over to some Newtonsoft.Json API code to parse JSON into model instances of the classes shown further above in this post; and then return the nested model instances.

I then created the following Sitecore.Shell.Applications.ContentEditor.Image subclass which represents the custom Content Editor Image field:

using System;

using Sitecore.Configuration;
using Sitecore.Data.Items;
using Sitecore.Diagnostics;
using Sitecore.Pipelines;
using Sitecore.Shell.Framework;
using Sitecore.Web.UI.Sheer;

using Sitecore.Sandbox.Pipelines.DownloadImageToMediaLibrary;
using Sitecore.Sandbox.Providers;

namespace Sitecore.Sandbox.Shell.Applications.ContentEditor
{
    public class GiphyImage : Sitecore.Shell.Applications.ContentEditor.Image
    {
        private IGiphyImageProvider GiphyImageProvider { get; set; }

        public GiphyImage()
            : base()
        {
            GiphyImageProvider = GetGiphyImageProvider();
        }

        protected virtual IGiphyImageProvider GetGiphyImageProvider()
        {
            IGiphyImageProvider giphyImageProvider = Factory.CreateObject("imageProviders/giphyImageProvider", false) as IGiphyImageProvider;
            Assert.IsNotNull(giphyImageProvider, "The giphyImageProvider was not properly defined in configuration");
            return giphyImageProvider;
        }

        public override void HandleMessage(Message message)
        {
            Assert.ArgumentNotNull(message, "message");
            if (string.Equals(message.Name, "contentimage:downloadGiphy", StringComparison.CurrentCultureIgnoreCase))
            {
                GetInputFromUser();
                return;
            }

            base.HandleMessage(message);
        }

        protected void GetInputFromUser()
        {
            RunProcessor("GetGiphyTags", new ClientPipelineArgs());
        }

        protected virtual void GetGiphyTags(ClientPipelineArgs args)
        {
            if (!args.IsPostBack)
            {
                SheerResponse.Input("Enter giphy tags:", string.Empty);
                args.WaitForPostBack();
            }
            else if (args.HasResult)
            {
                args.Parameters["tags"] = args.Result;
                args.IsPostBack = false;
                RunProcessor("GetGiphyImageUrl", args);
            }
            else
            {
                CancelOperation(args);
            }
        }

        protected virtual void GetGiphyImageUrl(ClientPipelineArgs args)
        {
            GiphyData giphyData = GiphyImageProvider.GetRandomGigphyImageData(args.Parameters["tags"]);
            if (giphyData == null || string.IsNullOrWhiteSpace(giphyData.ImageUrl))
            {
                SheerResponse.Alert("Unfortunately, no image matched the tags you specified. Please try again.");
                CancelOperation(args);
                return;
            }

            args.Parameters["imageUrl"] = giphyData.ImageUrl;
            args.IsPostBack = false;
            RunProcessor("ChooseMediaLibraryFolder", args);
        }

        protected virtual void RunProcessor(string processor, ClientPipelineArgs args)
        {
            Assert.ArgumentNotNullOrEmpty(processor, "processor");
            Sitecore.Context.ClientPage.Start(this, processor, args);
        }

        public void ChooseMediaLibraryFolder(ClientPipelineArgs args)
        {
            if (!args.IsPostBack)
            {
                Dialogs.BrowseItem
                (
                    "Select A Media Library Folder",
                    "Please select a media library folder to store the Giphy image.",
                    "Applications/32x32/folder_into.png",
                    "OK",
                    "/sitecore/media library",
                    string.Empty
                );

                args.WaitForPostBack();
            }
            else if (args.HasResult)
            {
                Item folder = Client.ContentDatabase.Items[args.Result];
                args.Parameters["mediaLibaryFolderPath"] = folder.Paths.FullPath;
                args.IsPostBack = false;
                RunProcessor("DownloadImage", args);
            }
            else
            {
                CancelOperation(args);
            }
        }

        protected virtual void DownloadImage(ClientPipelineArgs args)
        {
            DownloadImageToMediaLibraryArgs downloadArgs = new DownloadImageToMediaLibraryArgs
            {
                Database = Client.ContentDatabase,
                ImageUrl = args.Parameters["imageUrl"],
                MediaLibaryFolderPath = args.Parameters["mediaLibaryFolderPath"]
            };

            CorePipeline.Run("downloadImageToMediaLibrary", downloadArgs);
            SetMediaItemInField(downloadArgs);
        }

        protected virtual void SetMediaItemInField(DownloadImageToMediaLibraryArgs args)
        {
            Assert.ArgumentNotNull(args, "args");
            if(string.IsNullOrWhiteSpace(args.MediaId) || string.IsNullOrWhiteSpace(args.MediaPath))
            {
                return;
            }

            XmlValue.SetAttribute("mediaid", args.MediaId);
            Value = args.MediaPath;
            Update();
            SetModified();
        }

        protected virtual void CancelOperation(ClientPipelineArgs args)
        {
            Assert.ArgumentNotNull(args, "args");
            args.AbortPipeline();
        }
    }
}

The class above does not differ much from the Image class I shared in my previous post. The only differences are in the instantiation of an IGiphyImageProvider object using the Sitecore Configuration Factory — this object is used for getting the Giphy image URL from the Giphy API; the GetGiphyTags() method prompts the user for tags used in calling up a random image from Giphy; and in the GetGiphyImageUrl() method which uses the IGiphyImageProvider instance to get the image URL. The rest of the code in this class is unmodified from the Image class shared in my previous post.

I then defined the IGiphyImageProvider code in the following patch include configuration file:

<configuration xmlns:patch="http://www.sitecore.net/xmlconfig/">
  <sitecore>
    <imageProviders>
      <giphyImageProvider type="Sitecore.Sandbox.Providers.GiphyImageProvider, Sitecore.Sandbox" singleInstance="true">
        <RequestUrlFormat>http://api.giphy.com/v1/gifs/random?api_key={0}&amp;tag={1}</RequestUrlFormat>
        <ApiKey>dc6zaTOxFJmzC</ApiKey>
      </giphyImageProvider>
    </imageProviders>
  </sitecore>
</configuration>

Be sure to check out the patch include configuration file from my previous post as it contains the custom pipeline that downloads images from a URL.

You should also refer my previous post which shows you how to register a custom Content Editor field in the core database of Sitecore.

Let’s test this out.

We need to add this new field to a template. I’ve added it to the “out of the box” Sample Item template:
giphy-image-sample-item-new-field

My Home item uses the above template. Let’s download a random Giphy image on it:

giphy-image-home-1

I then supplied some tags for getting a random image:

giphy-image-home-2

Let’s choose a place to save the image in the Media Library:

giphy-image-home-3

As you can see, the image was downloaded and saved into the Media Library in the selected folder, and then saved in the custom field on the Home item:

giphy-image-home-4

If you are curious, this is the image that was returned by the Giphy API:

giphy-image-downloaded

If you have any thoughts on this, please share in a comment.

Download Images and Save to the Media Library Via a Custom Content Editor Image Field in Sitecore

Yesterday evening — a Friday evening by the way (what, you don’t code on Friday evenings? πŸ˜‰ ) — I wanted to have a bit of fun by building some sort of customization in Sitecore but was struggling on what to build.

After about an hour of pondering, it dawned on me: I was determined to build a custom Content Editor Image field that gives content authors the ability to download images from a supplied URL; save the image to disk; upload the image into the Media Libary; and then set it on a custom Image field of an Item.

I’m sure someone has built something like this in the past and may have even uploaded a module that does this to the Sitecore Marketplace — I didn’t really look into whether this had already been done before since I wanted to have some fun by taking on the challenge. What follows is the fruit of that endeavor.

Before I move forward, I would like to caution you on using the code that follows — I have not rigorously tested this code at all so use at your own risk.

Before I began coding, I thought about how I wanted to approach this challenge. I decided I would build a custom Sitecore pipeline to handle this code. Why? Well, quite frankly, it gives you flexibility on customization, and also native Sitecore code is hugely composed of pipelines — why deviate from the framework?

First, I needed a class whose instances would serve as the custom pipeline’s arguments object. The following class was built for that:

using Sitecore.Data;
using Sitecore.Pipelines;

namespace Sitecore.Sandbox.Pipelines.DownloadImageToMediaLibrary
{
    public class DownloadImageToMediaLibraryArgs : PipelineArgs
    {
        public Database Database { get; set; }

        public string ImageFileName { get; set; }

        public string ImageFilePath { get; set; }

        public string ImageItemName { get; set; }

        public string ImageUrl { get; set; }

        public string MediaId { get; set; }

        public string MediaLibaryFolderPath { get; set; }

        public string MediaPath { get; set; }

        public bool FileBased { get; set; }

        public bool IncludeExtensionInItemName { get; set; }

        public bool OverwriteExisting { get; set; }

        public bool Versioned { get; set; }
    }
}

I didn’t just start off with all of the properties you see on this class — it was an iterative process where I had to go back, add more and even remove some that were no longer needed. You will see why I have these on it from the code below.

I decided to employ the Template method pattern in this code, and defined the following abstract base class which all processors of my custom pipeline will sub-class:

using Sitecore.Diagnostics;

namespace Sitecore.Sandbox.Pipelines.DownloadImageToMediaLibrary
{
    public abstract class DownloadImageToMediaLibraryProcessor
    {
        public void Process(DownloadImageToMediaLibraryArgs args)
        {
            Assert.ArgumentNotNull(args, "args");
            if(!CanProcess(args))
            {
                AbortPipeline(args);
                return;
            }

            Execute(args);
        }

        protected abstract bool CanProcess(DownloadImageToMediaLibraryArgs args);

        protected virtual void AbortPipeline(DownloadImageToMediaLibraryArgs args)
        {
            args.AbortPipeline();
        }

        protected abstract void Execute(DownloadImageToMediaLibraryArgs args);
    }
}

All processors of the custom pipeline will have to implement the CanProcess and Execute methods above, and also have the ability to redefine the AbortPipeline method if needed.

The main magic for all processors happen in the Process method above — if the processor can process the data supplied via the arguments object, then it will do so using the Execute method. Otherwise, the pipeline will be aborted via the AbortPipeline method.

The following class serves as the first processor of the custom pipeline.

using Sitecore.Data.Items;
using Sitecore.Diagnostics;
using Sitecore.IO;

namespace Sitecore.Sandbox.Pipelines.DownloadImageToMediaLibrary
{
    public class SetProperties : DownloadImageToMediaLibraryProcessor
    {
        private string UploadDirectory { get; set; }

        protected override bool CanProcess(DownloadImageToMediaLibraryArgs args)
        {
            Assert.IsNotNullOrEmpty(UploadDirectory, "UploadDirectory must be set in configuration!");
            Assert.IsNotNull(args.Database, "args.Database must be supplied!");
            return !string.IsNullOrWhiteSpace(args.ImageUrl)
                && !string.IsNullOrWhiteSpace(args.MediaLibaryFolderPath);
        }

        protected override void Execute(DownloadImageToMediaLibraryArgs args)
        {
            args.ImageFileName = GetFileName(args.ImageUrl);
            args.ImageItemName = GetImageItemName(args.ImageUrl);
            args.ImageFilePath = GetFilePath(args.ImageFileName);
        }

        protected virtual string GetFileName(string url)
        {
            Assert.ArgumentNotNullOrEmpty(url, "url");
            return FileUtil.GetFileName(url);
        }

        protected virtual string GetImageItemName(string url)
        {
            Assert.ArgumentNotNullOrEmpty(url, "url");
            string fileNameNoExtension = GetFileNameNoExtension(url);
            if(string.IsNullOrWhiteSpace(fileNameNoExtension))
            {
                return string.Empty;
            }

            return ItemUtil.ProposeValidItemName(fileNameNoExtension);
        }

        protected virtual string GetFileNameNoExtension(string url)
        {
            Assert.ArgumentNotNullOrEmpty(url, "url");
            return FileUtil.GetFileNameWithoutExtension(url);
        }

        protected virtual string GetFilePath(string fileName)
        {
            Assert.ArgumentNotNullOrEmpty(fileName, "fileName");
            return string.Format("{0}/{1}", FileUtil.MapPath(UploadDirectory), fileName);
        }
    }
}

Instances of the above class will only run if an upload directory is supplied via configuration (see the patch include configuration file down below); a Sitecore Database is supplied (we have to upload this image somewhere); an image URL is supplied (can’t download an image without this); and a Media Library folder is supplied (where are we storing this image?).

The Execute method then sets additional properties on the arguments object that the next processors will need in order to complete their tasks.

The following class serves as the second processor of the custom pipeline. This processor will download the image from the supplied URL:

using System.Net;

namespace Sitecore.Sandbox.Pipelines.DownloadImageToMediaLibrary
{
    public class DownloadImage : DownloadImageToMediaLibraryProcessor
    {
        protected override bool CanProcess(DownloadImageToMediaLibraryArgs args)
        {
            return !string.IsNullOrWhiteSpace(args.ImageUrl)
                && !string.IsNullOrWhiteSpace(args.ImageFilePath);
        }

        protected override void Execute(DownloadImageToMediaLibraryArgs args)
        {
            using (WebClient client = new WebClient())
            {
                client.DownloadFile(args.ImageUrl, args.ImageFilePath);
            }
        }
    }
}

The processor instance of the above class will only execute when an image URL is supplied and a location on the file system is given — this is the location on the file system where the image will live before being uploaded into the Media Library.

If all checks out, the image is downloaded from the given URL into the specified location on the file system.

The next class serves as the third processor of the custom pipeline. This processor will upload the image on disk to the Media Library:

using System.IO;

using Sitecore.Data.Items;
using Sitecore.Diagnostics;
using Sitecore.Resources.Media;
using Sitecore.Sites;

namespace Sitecore.Sandbox.Pipelines.DownloadImageToMediaLibrary
{
    public class UploadImageToMediaLibrary : DownloadImageToMediaLibraryProcessor
    {
        private string Site { get; set; }

        protected override bool CanProcess(DownloadImageToMediaLibraryArgs args)
        {
            Assert.IsNotNullOrEmpty(Site, "Site must be set in configuration!");
            return !string.IsNullOrWhiteSpace(args.MediaLibaryFolderPath)
                && !string.IsNullOrWhiteSpace(args.ImageItemName)
                && !string.IsNullOrWhiteSpace(args.ImageFilePath)
                && args.Database != null;
        }

        protected override void Execute(DownloadImageToMediaLibraryArgs args)
        {
            MediaCreatorOptions options = new MediaCreatorOptions
            {
                Destination = GetMediaLibraryDestinationPath(args),
                FileBased = args.FileBased,
                IncludeExtensionInItemName = args.IncludeExtensionInItemName,
                OverwriteExisting = args.OverwriteExisting,
                Versioned = args.Versioned,
                Database = args.Database
            };

            MediaCreator creator = new MediaCreator();
            MediaItem mediaItem;
            using (SiteContextSwitcher switcher = new SiteContextSwitcher(GetSiteContext()))
            {
                using (FileStream fileStream = File.OpenRead(args.ImageFilePath))
                {
                    mediaItem = creator.CreateFromStream(fileStream, args.ImageFilePath, options);
                }
            }

            if (mediaItem == null)
            {
                AbortPipeline(args);
                return;
            }

            args.MediaId = mediaItem.ID.ToString();
            args.MediaPath = mediaItem.MediaPath;
        }

        protected virtual SiteContext GetSiteContext()
        {
            SiteContext siteContext = SiteContextFactory.GetSiteContext(Site);
            Assert.IsNotNull(siteContext, string.Format("The site: {0} does not exist!", Site));
            return siteContext;
        }

        protected virtual string GetMediaLibraryDestinationPath(DownloadImageToMediaLibraryArgs args)
        {
            return string.Format("{0}/{1}", args.MediaLibaryFolderPath, args.ImageItemName);
        }
    }
}

The processor instance of the class above will only run when we have a Media Library folder location; an Item name for the image; a file system path for the image; and a Database to upload the image to. I also ensure a “site” is supplied via configuration so that I can switch the site context — when using the default of “shell”, I was being brought to the image Item in the Media Library after it was uploaded which was causing the image not to be set on the custom Image field on the Item.

If everything checks out, we upload the image to the Media Library in the specified location.

The next class serves as the last processor of the custom pipeline. This processor just deletes the image from the file system (why keep it around since we are done with it?):

using Sitecore.IO;

namespace Sitecore.Sandbox.Pipelines.DownloadImageToMediaLibrary
{
    public class DeleteImageFromFileSystem : DownloadImageToMediaLibraryProcessor
    {
        protected override bool CanProcess(DownloadImageToMediaLibraryArgs args)
        {
            return !string.IsNullOrWhiteSpace(args.ImageFilePath)
                && FileUtil.FileExists(args.ImageFilePath);
        }

        protected override void Execute(DownloadImageToMediaLibraryArgs args)
        {
            FileUtil.Delete(args.ImageFilePath);
        }
    }
}

The processor instance of the class above can only delete the image if its path is supplied and the file exists.

If all checks out, the image is deleted.

The next class is the class that serves as the custom Image field:

using System;
using System.Net;

using Sitecore.Data.Items;
using Sitecore.Diagnostics;
using Sitecore.Pipelines;
using Sitecore.Shell.Framework;
using Sitecore.Web.UI.Sheer;

using Sitecore.Sandbox.Pipelines.DownloadImageToMediaLibrary;

namespace Sitecore.Sandbox.Shell.Applications.ContentEditor
{
    public class Image : Sitecore.Shell.Applications.ContentEditor.Image
    {
        public Image()
            : base()
        {
        }

        public override void HandleMessage(Message message)
        {
            Assert.ArgumentNotNull(message, "message");
            if (string.Equals(message.Name, "contentimage:download", StringComparison.CurrentCultureIgnoreCase))
            {
                GetInputFromUser();
                return;
            }

            base.HandleMessage(message);
        }

        protected void GetInputFromUser()
        {
            RunProcessor("GetImageUrl", new ClientPipelineArgs());
        }

        protected virtual void GetImageUrl(ClientPipelineArgs args)
        {
            if (!args.IsPostBack)
            {
                SheerResponse.Input("Enter the url of the image to download:", string.Empty);
                args.WaitForPostBack();
            }
            else if (args.HasResult && IsValidUrl(args.Result))
            {
                args.Parameters["imageUrl"] = args.Result;
                args.IsPostBack = false;
                RunProcessor("ChooseMediaLibraryFolder", args);
            }
            else
            {
                CancelOperation(args);
            }
        }

        protected virtual bool IsValidUrl(string url)
        {
            if (string.IsNullOrWhiteSpace(url))
            {
                return false;
            }

            try
            {
                HttpWebRequest request = (HttpWebRequest)HttpWebRequest.Create(url);
                request.Method = "HEAD";
                request.GetResponse();
            }
            catch (Exception ex)
            {
                SheerResponse.Alert("The specified url is not valid. Please try again.");
                return false;
            }

            return true;
        }

        protected virtual void RunProcessor(string processor, ClientPipelineArgs args)
        {
            Assert.ArgumentNotNullOrEmpty(processor, "processor");
            Sitecore.Context.ClientPage.Start(this, processor, args);
        }

        public void ChooseMediaLibraryFolder(ClientPipelineArgs args)
        {
            if (!args.IsPostBack)
            {
                Dialogs.BrowseItem
                (
                    "Select A Media Library Folder",
                    "Please select a media library folder to store this image.",
                    "Applications/32x32/folder_into.png",
                    "OK",
                    "/sitecore/media library",
                    string.Empty
                );

                args.WaitForPostBack();
            }
            else if (args.HasResult)
            {
                Item folder = Client.ContentDatabase.Items[args.Result];
                args.Parameters["mediaLibaryFolderPath"] = folder.Paths.FullPath;
                RunProcessor("DownloadImage", args);
            }
            else
            {
                CancelOperation(args);
            }
        }

        protected virtual void DownloadImage(ClientPipelineArgs args)
        {
            DownloadImageToMediaLibraryArgs downloadArgs = new DownloadImageToMediaLibraryArgs
            {
                Database = Client.ContentDatabase,
                ImageUrl = args.Parameters["imageUrl"],
                MediaLibaryFolderPath = args.Parameters["mediaLibaryFolderPath"]
            };

            CorePipeline.Run("downloadImageToMediaLibrary", downloadArgs);
            SetMediaItemInField(downloadArgs);
        }

        protected virtual void SetMediaItemInField(DownloadImageToMediaLibraryArgs args)
        {
            Assert.ArgumentNotNull(args, "args");
            if(string.IsNullOrWhiteSpace(args.MediaId) || string.IsNullOrWhiteSpace(args.MediaPath))
            {
                return;
            }

            XmlValue.SetAttribute("mediaid", args.MediaId);
            Value = args.MediaPath;
            Update();
            SetModified();
        }

        protected virtual void CancelOperation(ClientPipelineArgs args)
        {
            Assert.ArgumentNotNull(args, "args");
            args.AbortPipeline();
        }
    }
}

The class above subclasses the Sitecore.Shell.Applications.ContentEditor.Image class — this lives in Sitecore.Kernel.dll — which is the “out of the box” Content Editor Image field. The Sitecore.Shell.Applications.ContentEditor.Image class provides hooks that we can override in order to augment functionality which I am doing above.

The magic of this class starts in the HandleMessage method — I intercept the message for a Menu item option that I define below for downloading an image from a URL.

If we are to download an image from a URL, we first prompt the user for a URL via the GetImageUrl method using a Sheer UI api call (note: I am running these methods as one-off client pipeline processors as this is the only way you can get Sheer UI to run properly).

If we have a valid URL, we then prompt the user for a Media Library location via another Sheer UI dialog (this is seen in the ChooseMediaLibraryFolder method).

If the user chooses a location in the Media Library, we then call the DownloadImage method as a client pipeline processor — I had to do this since I was seeing some weird behavior on when the image was being saved into the Media Library — which invokes the custom pipeline for downloading the image to the file system; uploading it into the Media Library; and then removing it from disk.

I then duct-taped everything together using the following patch include configuration file:

<configuration xmlns:patch="http://www.sitecore.net/xmlconfig/">
  <sitecore>
    <controlSources>
      <source mode="on" namespace="Sitecore.Sandbox.Shell.Applications.ContentEditor" assembly="Sitecore.Sandbox" prefix="sandbox-content"/>
    </controlSources>
    <overrideDialogs>
      <override dialogUrl="/sitecore/shell/Applications/Item%20browser.aspx" with="/sitecore/client/applications/dialogs/InsertSitecoreItemViaTreeDialog">
        <patch:delete/>
      </override>
    </overrideDialogs>
    <pipelines>
      <downloadImageToMediaLibrary>
        <processor type="Sitecore.Sandbox.Pipelines.DownloadImageToMediaLibrary.SetProperties, Sitecore.Sandbox">
          <UploadDirectory>/upload</UploadDirectory>
        </processor>
        <processor type="Sitecore.Sandbox.Pipelines.DownloadImageToMediaLibrary.DownloadImage, Sitecore.Sandbox" />
        <processor type="Sitecore.Sandbox.Pipelines.DownloadImageToMediaLibrary.UploadImageToMediaLibrary, Sitecore.Sandbox">
          <Site>website</Site>
        </processor>
        <processor type="Sitecore.Sandbox.Pipelines.DownloadImageToMediaLibrary.DeleteImageFromFileSystem, Sitecore.Sandbox" />
      </downloadImageToMediaLibrary>
    </pipelines>
  </sitecore>
</configuration>

One thing to note in the above file: I’ve disabled the SPEAK dialog for the Item Browser — you can see this in the <overrideDialogs> xml element — as I wasn’t able to set messaging text on it but could do so using the older Sheer UI dialog.

Now that all code is in place, we need to tell Sitecore that we have a new Image field. I do so by defining it in the Core database:

external-image-core-1

We also need a new Menu item for the “Download Image” link:

external-image-core-2

Let’s take this for a spin!

I added a new field using the custom Image field type to my Sample item template:

template-new-field-external-image

As you can see, we have this new Image field on my “out of the box” home item. Let’s click the “Download Image” link:

home-external-image-1

I was then prompted with a dialog to supply an image URL. I pasted one I found on the internet:

home-external-image-2

After clicking “OK”, I was prompted with another dialog to choose a Media Library location for storing the image. I chose some random folder:

home-external-image-3

After clicking “OK” on that dialog, the image was magically downloaded from the internet; uploaded into the Media Library; and set in the custom Image field on my home item:

home-external-image-4

If you have any comments, thoughts or suggestions on this, please drop a comment.

Addendum:
It’s not a good idea to use the /upload directory for temporarily storing download images — see this post for more details.

If you decide to use this solution — by the way, use this solution at your own risk πŸ˜‰ — you will have to change the /upload directory in the patch include configuration file above.

Make Incompatible Class Interfaces Work Together using the Adapter Pattern in Sitecore

This post is a continuation of a series of blog posts I’m putting together around using design patterns in Sitecore, and will share a “proof of concept” on employing the Adapter pattern — a structural pattern used when you need classes of different interfaces to work together. In other words, you need one class’ interface to “adapt” to another.

Believe it or not, most developers — and hopefully most reading this post — are already quite familiar with the Adapter pattern even if it’s not recognizable by name.

How so?

Well, I don’t know about you but I spend a lot of time making code from different APIs work together. I typically have to do this when making use of a third-party library that I cannot change, and usually do this by having one class “wrap” another and its methods. Commonly, the Adapter pattern is known as a “wrapper”.

I showcased the following “proof of concept” during my presentation at SUGCON Europe 2015. This code flips images upside down after they are uploaded to the Media Library — yeah, I know, pretty useful, right? πŸ˜‰ Keep in mind this code is for educational purposes only, and serves no utility in any practical sense in your Sitecore solutions — if you do have a business need for flipping images upside down after uploading them to the Media Library, please share in a comment.

I first started off with the following interface:

using Sitecore.Data.Items;

namespace Sitecore.Sandbox.Resources.Media
{
    public interface IMediaImageFlipper
    {
        MediaItem MediaItem { get; set; }

        void Flip();
    }
}

Classes that implement the interface above basically flip images within Sitecore.Data.Items.MediaItem instances — this is defined in Sitecore.Kernel.dll — upside down via their Flip() method.

The following class implements the above interface:

using System;
using System.Collections.Generic;
using System.Linq;
using System.IO;

using Sitecore.Data.Items;
using Sitecore.Diagnostics;

using ImageProcessor;

namespace Sitecore.Sandbox.Resources.Media
{
    public class ImageFactoryFlipper : IMediaImageFlipper
    {
        public MediaItem MediaItem { get; set; }

        private List<string> TargetMimeTypes { get; set; }

        private ImageFactory ImageFactory { get; set; }

        public ImageFactoryFlipper()
            : this(new ImageFactory())
        {
        }

        public ImageFactoryFlipper(ImageFactory imageFactory)
        {
            TargetMimeTypes = new List<string>();
            Assert.ArgumentNotNull(imageFactory, "imageFactory");
            ImageFactory = imageFactory;
        }

        public void Flip()
        {
            if (!ShouldFlip(MediaItem))
            {
                return;
            }

            using (MemoryStream outputStream = new MemoryStream())
            {
                ImageFactory.Load(MediaItem.GetMediaStream()).Rotate(180.0f).Save(outputStream);

                using (new EditContext(MediaItem))
                {
                    MediaItem.InnerItem.Fields["Blob"].SetBlobStream(outputStream);
                }
            }
        }

        protected virtual bool ShouldFlip(MediaItem mediaItem)
        {
            if (mediaItem == null || string.IsNullOrWhiteSpace(mediaItem.MimeType) || !TargetMimeTypes.Any() || ImageFactory == null)
            {
                return false;
            }

            return TargetMimeTypes.Any(targetMimeType => string.Equals(targetMimeType, mediaItem.MimeType, StringComparison.CurrentCultureIgnoreCase));
        }
    }
}

In the above class, I am “wrapping” an ImageFactory class instance — this class comes with the ImageProcessor .NET library which does some image manipulation (I found this .NET library via a Google search and have no idea how good it is, but it’s good enough for this “proof of concept”) — and inject it using Poor man’s dependency injection via the default constructor.

The Flip() method is where the magic happens. It calls the ShouldFlip() method which ascertains whether the MediaItem property is set on the class instance and whether the image found within it should be flipped — an image should be flipped if it has a MIME type that is within the list of MIME types that are injected into the class instance via the Sitecore Configuration Factory (see the patch configuration file below).

If the image should be flipped, the Flip() method uses the ImageFactory instance to flip the image upside down — it does this by rotating it 180 degrees — and then saves the flipped image contained within the MemoryStream instance into the MediaItem’s Blob field (this is where images are saved on Media Library Items).

Now that we have a class that flips images, we need a MediaCreator — a subclass of Sitecore.Resources.Media.MediaCreator (this lives in Sitecore.Kernel.dll) — to leverage an instance of the IMediaImageFlipper to do the image manipulation. The follow class does this:

using System.IO;

using Sitecore.Data.Items;
using Sitecore.Resources.Media;

namespace Sitecore.Sandbox.Resources.Media
{
    public class ImageFlipperMediaCreator : MediaCreator
    {
        private IMediaImageFlipper Flipper { get; set; }

        public override Item CreateFromStream(Stream stream, string filePath, bool setStreamIfEmpty, MediaCreatorOptions options)
        {
            MediaItem mediaItem = base.CreateFromStream(stream, filePath, setStreamIfEmpty, options);
            if (Flipper == null)
            {
                return mediaItem;
            }

            Flipper.MediaItem = mediaItem;
            Flipper.Flip();
            return mediaItem;
        }
    }
}

After an image is uploaded to the Media Library, we pass the new MediaItem to the IMediaImageFlipper instance — this instance is injected using the Sitecore Configuration Factory (see the configuration file below) — and invoke its Flip() method to flip the image, and return the new MediaItem when complete.

I then utilize an instance of the MediaCreator above in a subclass of Resources.Media.MediaProvider.MediaProvider (I am going to replace the “out of the box” MediaProvider with the following class using the configuration file below):

using Sitecore.Diagnostics;
using Sitecore.Resources.Media;

namespace Sitecore.Sandbox.Resources.Media
{
    public class ImageFlipperMediaProvider : MediaProvider
    {
        private MediaCreator FlipperCreator { get; set; }

        public override MediaCreator Creator
        {
            get
            {
                return FlipperCreator ?? base.Creator;
            }
            set
            {
                Assert.ArgumentNotNull(value, "value");
                FlipperCreator = value;
            }
        }
    }
}

The MediaCreator that lives in the FlipperCreator property is injected into the class instance through the Sitecore Configuration Factory (see the patch configuration file below), and is returned by the Creator property’s accessor if it’s not null.

I then registered all of the above in Sitecore using the following patch configuration file:

<?xml version="1.0" encoding="utf-8" ?>
<configuration xmlns:patch="http://www.sitecore.net/xmlconfig/">
  <sitecore>
    <mediaLibrary>
      <mediaProvider>
        <patch:attribute name="type">Sitecore.Sandbox.Resources.Media.ImageFlipperMediaProvider, Sitecore.Sandbox</patch:attribute>
        <FlipperCreator type="Sitecore.Sandbox.Resources.Media.ImageFlipperMediaCreator, Sitecore.Sandbox">
          <Flipper type="Sitecore.Sandbox.Resources.Media.ImageFactoryFlipper, Sitecore.Sandbox">
            <TargetMimeTypes hint="list">
              <TargetMimeType>image/jpeg</TargetMimeType>
              <TargetMimeType>image/png</TargetMimeType>
            </TargetMimeTypes>
          </Flipper>
		    </FlipperCreator>
      </mediaProvider>
    </mediaLibrary>
  </sitecore>
</configuration>

Let’s test this.

I selected the following images for uploading to the Media Library:

selected-some-files-to-upload

As you can see, all uploaded images were flipped upside down:

images-upside-down

If you have any thoughts on this, or examples where you’ve employed the Adapter pattern in your Sitecore solutions, please share in a comment.

Until next time, have a Sitecorelicious day!

Augment Configuration-defined Sitecore Functionality using the Composite Design Pattern

In a couple of my past posts — Synchronize IDTable Entries Across Multiple Sitecore Databases Using a Composite IDTableProvider and
Chain Together Sitecore Client Commands using a Composite Command — I used the Composite design pattern to chain together functionality in two or more classes with the same interface — by interface here, I don’t strictly mean a C# interface but any class that servers as a base class for others where all instances share the same methods — and had a thought: how could I go about making a generic solution to chain together any class type defined in Sitecore configuration?

As a “proof of concept” I came up with the following solution while taking a break from my judgely duties reviewing 2015 Sitecore Hackathon modules.

I first defined an interface for classes that will construct objects using the Sitecore Configuration Factory:

using System.Collections.Generic;
using System.Xml;

namespace Sitecore.Sandbox.Shared
{
    public interface IConfigurationFactoryInstances<TInstance>
    {
        void AddInstance(XmlNode source);

        IEnumerable<TInstance> GetInstances();
    }
}

The following class implements the methods defined in the interface above:

using System.Collections.Generic;
using System.Xml;

using Sitecore.Configuration;

namespace Sitecore.Sandbox.Shared
{
    public class ConfigurationFactoryInstances<TInstance> : IConfigurationFactoryInstances<TInstance> where TInstance : class
    {
        private IList<TInstance> Instances { get; set; }

        public ConfigurationFactoryInstances()
        {
            Instances = new List<TInstance>();
        }

        public virtual IEnumerable<TInstance> GetInstances()
        {
            return Instances;
        }

        public void AddInstance(XmlNode configNode)
        {
            TInstance instance = CreateInstance(configNode);
            if (instance == null)
            {
                return;
            }

            Instances.Add(instance);
        }

        protected virtual TInstance CreateInstance(XmlNode configNode)
        {
            if (configNode == null)
            {
                return null;
            }

            TInstance instance = Factory.CreateObject(configNode, true) as TInstance;
            if (instance == null)
            {
                return null;
            }

            return instance;
        }
    }
}

The AddInstance() method in the class above — along with the help of the CreateInstance() method — takes in a System.Xml.XmlNode instance and attempts to create an instance of the type denoted by TInstance using the Sitecore Configuration Factory. If the instance was successfully created (i.e. it’s not null), it is added to a list.

The GetInstances() method in the class above just returns the list of the instances that were added by the AddInstance() method.

Since I’ve been posting a lot of meme images on Twitter lately — you can see the evidence here — I’ve decided to have a little fun tonight with this “proof of concept”, and created the following composite MediaProvider:

using System.Xml;

using Sitecore.Data.Items;
using Sitecore.Resources.Media;

using Sitecore.Sandbox.Shared;

namespace Sitecore.Sandbox.Resources.Media
{
    public class CompositeMediaProvider : MediaProvider
    {
        private static IConfigurationFactoryInstances<MediaProvider> Instances { get; set; }

        static CompositeMediaProvider()
        {
            Instances = new ConfigurationFactoryInstances<MediaProvider>();
        }

        public override string GetMediaUrl(MediaItem item, MediaUrlOptions options)
        {
            foreach (MediaProvider mediaProvider in Instances.GetInstances())
            {
                string url = mediaProvider.GetMediaUrl(item, options);
                if(!string.IsNullOrWhiteSpace(url))
                {
                    return url;
                }
            }

            return base.GetMediaUrl(item, options);
        }

        protected virtual void AddMediaProvider(XmlNode configNode)
        {
            Instances.AddInstance(configNode);
        }
    }
}

The AddMediaProvider() method in the class above adds new instances of Sitecore.Resources.Media.MediaProvider through delegation to an instance of the ConfigurationFactoryInstances class. The Sitecore Configuration Factory will call the AddMediaProvider() method since it’s defined in the patch include configuration file shown later in this post

The GetMediaUrl() method iterates over all instances of Sitecore.Resources.Media.MediaProvider that were created and stored by the ConfigurationFactoryInstances instance, and calls each of their GetMediaUrl() methods. The first non-null or empty URL from one of these “inner” instances is returned to the caller. If none of the instances return a URL, then the class above returns the value given by its base class’ GetMediaUrl() method.

I then spun up three MediaProvider classes to serve up specific image URLs of John West — I found these somewhere on the internet πŸ˜‰ — when they encounter media Items with specific names (I am not advocating that anyone hard-codes anything like this — these classes are only here to serve as examples):

using System;

using Sitecore.Data.Items;
using Sitecore.Resources.Media;

namespace Sitecore.Sandbox.Resources.Media
{
    public class JohnWestOneMediaProvider : MediaProvider
    {
        public override string GetMediaUrl(MediaItem item, MediaUrlOptions options)
        {
            if(item.Name.Equals("john-west-1", StringComparison.CurrentCultureIgnoreCase))
            {
                return "http://cdn.meme.am/instances/500x/43030540.jpg";
            }

            return string.Empty;
        }
    }
}

using System;

using Sitecore.Data.Items;
using Sitecore.Resources.Media;

namespace Sitecore.Sandbox.Resources.Media
{
    public class JohnWestTwoMediaProvider : MediaProvider
    {
        public override string GetMediaUrl(MediaItem item, MediaUrlOptions options)
        {
            if (item.Name.Equals("john-west-2", StringComparison.CurrentCultureIgnoreCase))
            {
                return "http://cdn.meme.am/instances/500x/43044627.jpg";
            }

            return string.Empty;
        }
    }
}
using System;

using Sitecore.Data.Items;
using Sitecore.Resources.Media;

namespace Sitecore.Sandbox.Resources.Media
{
    public class JohnWestThreeMediaProvider : MediaProvider
    {
        public override string GetMediaUrl(MediaItem item, MediaUrlOptions options)
        {
            if (item.Name.Equals("john-west-3", StringComparison.CurrentCultureIgnoreCase))
            {
                return "http://cdn.meme.am/instances/500x/43030625.jpg";
            }

            return string.Empty;
        }
    }
}

I then registered all of the above in Sitecore using a patch configuration file:

<?xml version="1.0" encoding="utf-8" ?>
<configuration xmlns:patch="http://www.sitecore.net/xmlconfig/">
  <sitecore>
    <mediaLibrary>
      <mediaProvider>
        <patch:attribute name="type">Sitecore.Sandbox.Resources.Media.CompositeMediaProvider, Sitecore.Sandbox</patch:attribute>
        <mediaProviders hint="raw:AddMediaProvider">
          <mediaProvider type="Sitecore.Sandbox.Resources.Media.JohnWestOneMediaProvider, Sitecore.Sandbox" />
          <mediaProvider type="Sitecore.Sandbox.Resources.Media.JohnWestTwoMediaProvider, Sitecore.Sandbox" />
          <mediaProvider type="Sitecore.Sandbox.Resources.Media.JohnWestThreeMediaProvider, Sitecore.Sandbox" />
          <mediaProvider type="Sitecore.Resources.Media.MediaProvider, Sitecore.Kernel" />
        </mediaProviders>
      </mediaProvider>
    </mediaLibrary>
  </sitecore>
</configuration>

Let’s see this in action!

To test, I uploaded four identical photos of John West to the Media Library:

four-jw-media-library

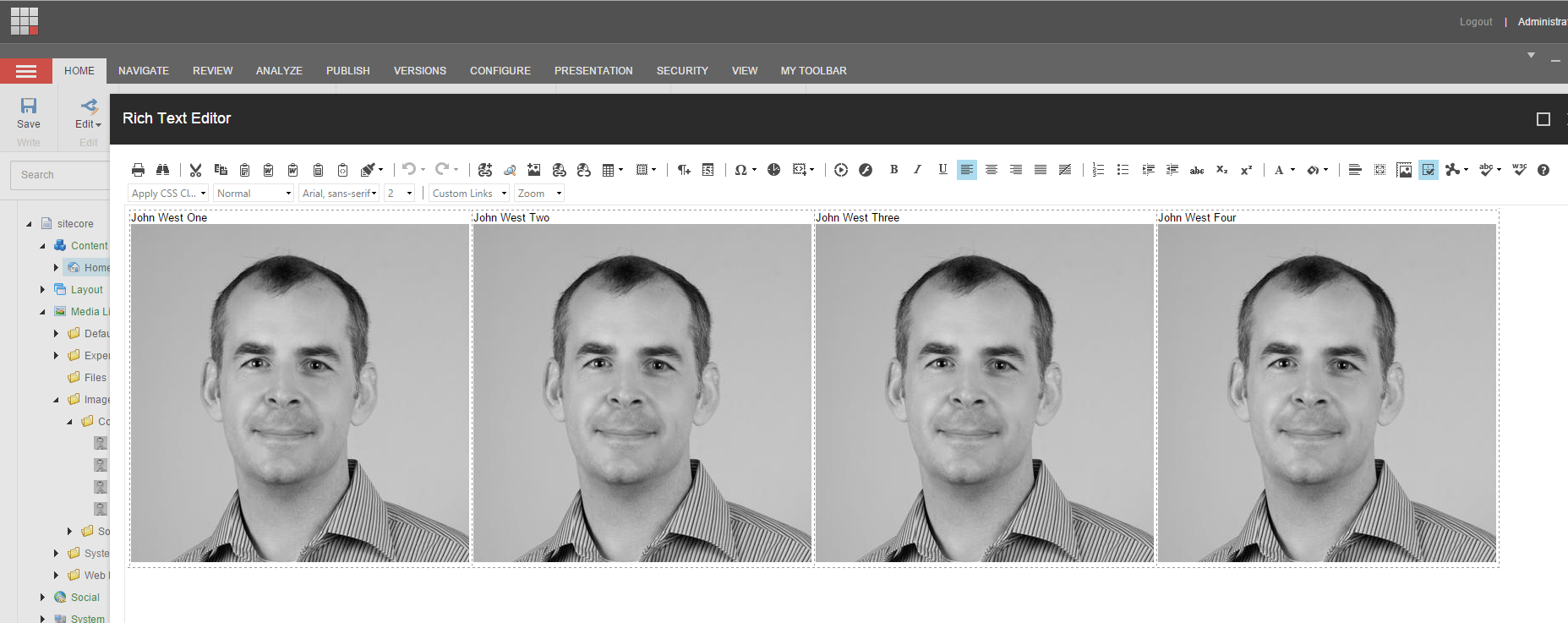

I then inserted these into a Rich Text field on my home Item:

rte-jw-times-four

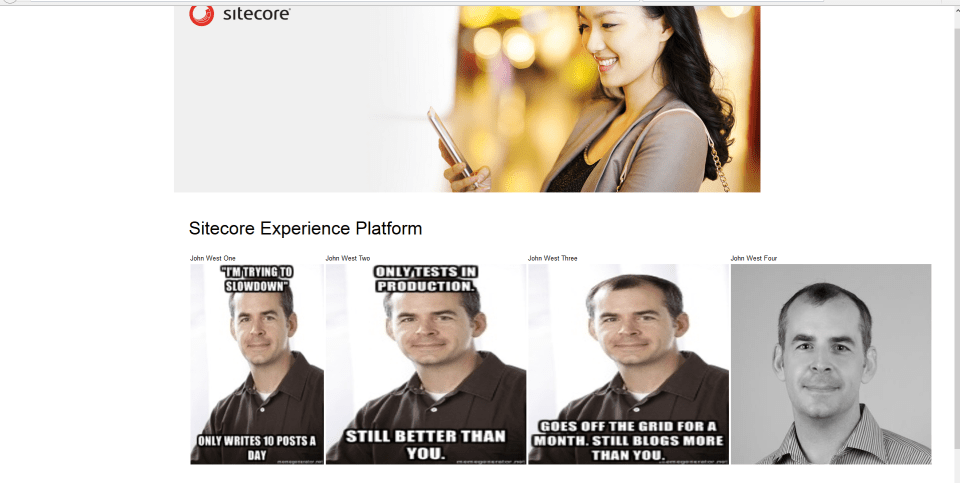

I saved my home Item and published everything. Once the publish was finished, I navigated to my home page and saw the following:

four-jw-home-page

As you can see, the three custom John West MediaProvider class instances served up their URLs, and the “out of the box” Sitecore.Resources.Media.MediaProvider instance served up its URL on the last image.

If you have any thoughts on this, please share in a comment.

Until next time, have a Sitecoretastic day!
