Specify the Maximum Width of Images Uploaded to the Sitecore Media Library

Sitecore Technology MVP 2016
Sitecore MVP 2015
Sitecore MVP 2014

Enter your email address to follow this blog and receive notifications of new posts by email.

Tweets

Last week someone started a thread in one of the SDN forums asking how one could go about making Sitecore resize images larger than a specific width down to that width.

Yesterday an astute SDN visitor recommended using a custom getMediaStream pipeline processor to set the maximum width for images — a property for this maximum width is exposed via the GetMediaStreamPipelineArgs parameters object passed through the getMediaStream pipeline.

I thought I would try out the suggestion, and came up with the following getMediaStream pipeline processor:

using Sitecore.Diagnostics;

using Sitecore.Resources.Media;

namespace Sitecore.Sandbox.Resources.Media
{
    public class MaxWidthProcessor
    {
        public int MaxWidth { get; set; }

        public void Process(GetMediaStreamPipelineArgs args)
        {
            Assert.ArgumentNotNull(args, "args");
            if (!ShouldSetMaxWidth(args))
            {
                return;
            }

            args.Options.MaxWidth = MaxWidth;
        }

        private bool ShouldSetMaxWidth(GetMediaStreamPipelineArgs args)
        {
            Assert.ArgumentNotNull(args, "args");
            return MaxWidth > 0 && args.Options.MaxWidth < 1;
        }
    }
}

I then interlaced it into the getMediaStream pipeline before the ResizeProcessor processor — this is the processor where the magical resizing happens — using the following patch configuration file:

<?xml version="1.0" encoding="utf-8"?>
<configuration xmlns:patch="http://www.sitecore.net/xmlconfig/">
  <sitecore>
    <pipelines>
      <getMediaStream>
        <processor patch:before="processor[@type='Sitecore.Resources.Media.ResizeProcessor, Sitecore.Kernel']"
                   type="Sitecore.Sandbox.Resources.Media.MaxWidthProcessor, Sitecore.Sandbox">
          <MaxWidth>1024</MaxWidth>
        </processor>
      </getMediaStream>
    </pipelines>
  </sitecore>
</configuration>

The maximum width for images is set to 1024 pixels — the width I am using in my test below.

Let’s see how we did.

I decided to use one of my favorite images that ships with Sitecore for testing:

lighthouse-small

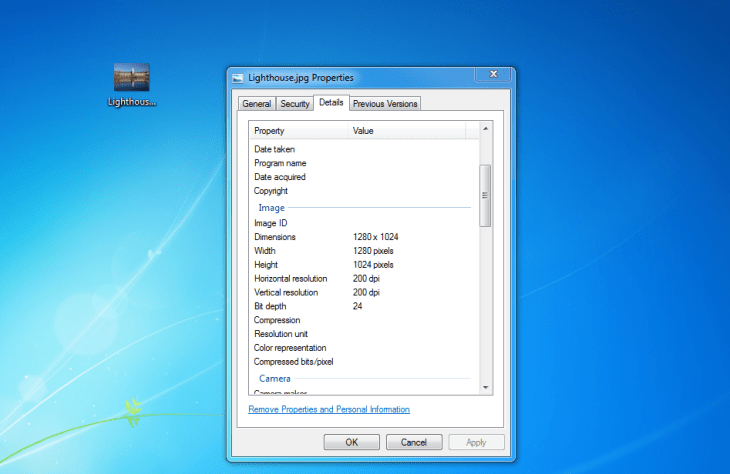

As you can see its width is much larger than 1024 pixels:

lighthouse-properties

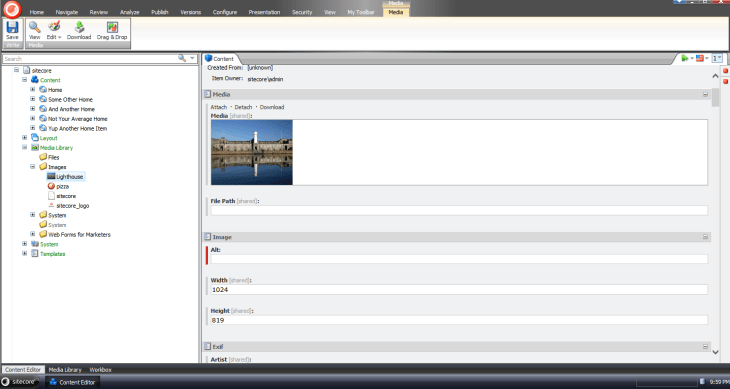

After uploading the lighthouse image into the media library, its width was set to the maximum specified, and its height was scaled down proportionally:

resized-during-upload

If you have any thoughts on this, or other ideas on resizing images uploaded to the media library, please drop a comment.

Advertisements

2 Comments

  1. Hi Mike,

    I am with you ..

    I was using sc:image and its properties so called maxHeight and maxWidth in order to resize the images as per need.

    THanks

  2. pradsir says:

    I am with you..

    one other way is we can use sc:Image and its property so called maxHeight and maxwidth..

    Thanks,
    Pradeep Shukla
