Chain Together Sitecore Functionality Using the Chain-of-responsibility Design Pattern

Sitecore Technology MVP 2016
Sitecore MVP 2015
Sitecore MVP 2014

Enter your email address to follow this blog and receive notifications of new posts by email.

Tweets

This post is a continuation of a series of posts I’m putting together around using design patterns in Sitecore solutions, and will show a “proof of concept” around using the chain-of-responsibility pattern — a pattern where objects are linked together and are invoked in a cascading manner.

I decided to revisit a post I wrote over two years ago on chaining together client commands — these are invoked via the Sheer UI framework which drives how the ribbon, item context menu and other things work in Sitecore.

Earlier today — or yesterday depending on where you are — I began my code journey by building the following interface:

using Sitecore.Shell.Framework.Commands;

namespace Sitecore.Sandbox.Invokers.Commands
{
    public interface ICommandInvoker
    {
        bool HasCommand();

        void SetCommand(string commandName);

        void SetNextInvoker(ICommandInvoker nextInvoker);

        bool CanInvoke(CommandContext commandContext);

        void Invoke(CommandContext commandContext);
    }
}

The idea here is instances of classes that implement the interface above — let’s call them processing objects — will encapsulate instances of subclasses of Sitecore.Shell.Framework.Commands.Command — this is defined in Sitecore.Kernel.dll.

Each processing object will be linked to another processing object — I’m calling this other processing object the NextInvoker in code — which is invoked after the previous one.

Since the NextInvoker implements the interface above, it can also have its own NextInvoker thus chaining together a series of classes that implement the ICommandInvoker interface above.

I decided employ another design pattern in this solution — the Null Object pattern — and defined the following class whose instances will serve as a Null Object — I did this to reduce the amount of null checks in code (I should probably devote an entire post on this pattern):

using Sitecore.Diagnostics;
using Sitecore.Shell.Framework.Commands;

namespace Sitecore.Sandbox.Invokers.Commands
{
    public class NullCommandInvoker : ICommandInvoker
    {
        public NullCommandInvoker()
        {
        }

        public bool HasCommand()
        {
            return false;
        }

        public void SetCommand(string commandName)
        {
        }

        public void SetNextInvoker(ICommandInvoker nextInvoker)
        {
        }

        public bool CanInvoke(CommandContext commandContext)
        {
            return true;
        }

        public void Invoke(CommandContext commandContext)
        {
        }
    }
}

Basically, instances of the class above do nothing and can be invoked — why not? They don’t do actually do anything so no harm done, right? 😉 — as can be seen in the CanInvoke() method.

I then created the following class whose instances will serve as the default processing objects:

using Sitecore.Configuration;
using Sitecore.Diagnostics;
using Sitecore.Shell.Framework.Commands;

namespace Sitecore.Sandbox.Invokers.Commands
{
    public class CommandInvoker : ICommandInvoker
    {
        private static ICommandInvoker NullCommandInvoker { get; set; }

        private Command Command { get; set; }

        private ICommandInvoker nextInvoker;
        private ICommandInvoker NextInvoker
        {
            get
            {
                return nextInvoker ?? NullCommandInvoker;
            }
            set
            {
                nextInvoker = value;
            }
        }

        static CommandInvoker()
        {
            NullCommandInvoker = CreateNullCommandInvoker();
        }

        public CommandInvoker()
        {
        }

        public bool HasCommand()
        {
            return Command != null;
        }

        public void SetCommand(string commandName)
        {
            Assert.ArgumentNotNullOrEmpty(commandName, "commandName");
            Command = GetCommand(commandName);
            Assert.IsNotNull(Command, "commandName", "commandName is not a valid command!");
        }

        public void SetNextInvoker(ICommandInvoker nextInvoker)
        {
            Assert.ArgumentNotNull(nextInvoker, "nextInvoker");
            NextInvoker = nextInvoker;
        }

        public bool CanInvoke(CommandContext commandContext)
        {
            Assert.ArgumentNotNull(commandContext, "commandContext");
            if(!HasCommand())
            {
                return false;
            }

            return Command.QueryState(commandContext) == CommandState.Enabled && NextInvoker.CanInvoke(commandContext);
        }

        public void Invoke(CommandContext commandContext)
        {
            Assert.ArgumentNotNull(commandContext, "commandContext");
            if(!HasCommand())
            {
                return;
            }

            Command.Execute(commandContext);
            NextInvoker.Invoke(commandContext);
        }

        protected virtual Command GetCommand(string commandName)
        {
            return CommandManager.GetCommand(commandName);
        }

        private static ICommandInvoker CreateNullCommandInvoker()
        {
            ICommandInvoker nullCommandInvoker = Factory.CreateObject("commandInvokers/nullCommandInvoker", true) as ICommandInvoker;
            Assert.IsNotNull(nullCommandInvoker, "nullCommandInvoker", "nullCommandInvoker must be set correctly in configuration!");
            return nullCommandInvoker;
        }
    }
}

There is a lot going on in the class above, so let me try to briefly capture the main things.

The SetCommand() method in the class above takes in the name of the command and delegates to the GetCommand() method which looks it up using the GetCommand() method on Sitecore.Shell.Framework.Commands.CommandManager in Sitecore.Kernel.dll.

The SetNextInvoker() method will chain the current CommandInvoker instance with another class instance that implements the ICommandInvoker interface — this is the NextInvoker.

The CanInvoke() method basically checks to see if the current CommandInvoker instance has a non-null Sitecore.Shell.Framework.Commands.Command instance set within it; ascertains whether the Sitecore.Shell.Framework.Commands.Command instance is enabled; and determines if the NextInvoker can be invoked.

The Invoke() method calls the Execute() method on the Sitecore.Shell.Framework.Commands.Command instance, and then calls the Invoke() method on the class instance’s NextInvoker.

One thing I’d like to point out is an instance of the Null Object class that was defined above is used when the NextInvoker is not set — this is why a null check is not done in the CanInvoke() and Invoke() methods on the NextInvoker instance.

I then built the following Sitecore.Shell.Framework.Commands.Command subclass which is to be wired-up to a menu option of some type in the Core database:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Xml;

using Sitecore.Collections;
using Sitecore.Configuration;
using Sitecore.Diagnostics;
using Sitecore.Shell.Framework.Commands;
using Sitecore.Web;

using Sitecore.Sandbox.Invokers.Commands;

namespace Sitecore.Sandbox.Shell.Framework.Commands
{
    public class ChainOfResponsibilityCommand : Command
    {
        private ICommandInvoker commandInvoker;
        private ICommandInvoker CommandInvoker
        {
            get
            {
                if(commandInvoker == null)
                {
                    commandInvoker = GetCommandInvoker();
                }

                return commandInvoker;
            }
        }

        public override void Execute(CommandContext context)
        {
            if (!CommandInvoker.CanInvoke(context))
            {
                return;
            }

            CommandInvoker.Invoke(context);
        }

        public override CommandState QueryState(CommandContext context)
        {
            if(!CommandInvoker.CanInvoke(context))
            {
                return CommandState.Hidden;
            }

            return CommandState.Enabled;
        }

        private ICommandInvoker GetCommandInvoker()
        {
            ICommandInvoker firstInvoker = CreateNewCommandInvoker();
            IEnumerable<string> commandNames = GetCommandNames(GetParameters());
            if(commandNames == null || !commandNames.Any())
            {
                return firstInvoker;
            }

            ICommandInvoker invoker = firstInvoker;
            invoker.SetCommand(commandNames.First());
            commandNames = commandNames.Skip(1).ToList();
            if (!commandNames.Any())
            {
                return firstInvoker;
            }

            foreach(string commandName in commandNames)
            {
                ICommandInvoker nextInvoker = CreateNewCommandInvoker();
                nextInvoker.SetCommand(commandName);
                invoker.SetNextInvoker(nextInvoker);
                invoker = nextInvoker;
            }

            return firstInvoker;
        }

        private IEnumerable<string> GetCommandNames(SafeDictionary<string> parameters)
        {
            string commands = GetCommandsString(parameters);
            char[] delimiters = GetCommandsDelimiters(parameters);

            if (string.IsNullOrWhiteSpace(commands) || delimiters == null || !delimiters.Any())
            {
                return new List<string>();
            }

            return commands.Split(delimiters, StringSplitOptions.RemoveEmptyEntries);
        }

        protected virtual string GetCommandsString(SafeDictionary<string> parameters)
        {
            return parameters["commands"];
        }

        private char[] GetCommandsDelimiters(SafeDictionary<string> parameters)
        {
            string delimiters = GetDelimitersString(parameters);
            if (string.IsNullOrWhiteSpace(delimiters))
            {
                return new char[] { };
            }

            return GetDelimitersString(parameters).ToCharArray();
        }

        protected virtual string GetDelimitersString(SafeDictionary<string> parameters)
        {
            return parameters["delimiters"];
        }

        protected virtual SafeDictionary<string> GetParameters()
        {
            XmlNode xmlNode = Factory.GetConfigNode(string.Format("commands/command[@name='{0}']", Name));
            string parametersValue = GetAttributeValue(xmlNode, "parameters");
            if (string.IsNullOrWhiteSpace(parametersValue))
            {
                return new SafeDictionary<string>();
            }

            return WebUtil.ParseQueryString(xmlNode.Attributes["parameters"].Value);
        }

        private string GetAttributeValue(XmlNode xmlNode, string attributeName)
        {
            if (xmlNode == null || xmlNode.Attributes[attributeName] == null || string.IsNullOrWhiteSpace(xmlNode.Attributes[attributeName].Value))
            {
                return string.Empty;
            }

            return xmlNode.Attributes[attributeName].Value;
        }

        protected static ICommandInvoker CreateNewCommandInvoker()
        {
            ICommandInvoker commandInvoker = Factory.CreateObject("commandInvokers/defaultCommandInvoker", true) as ICommandInvoker;
            Assert.IsNotNull(commandInvoker, "commandInvoker", "commandInvoker must be set correctly in configuration!");
            return commandInvoker;
        }
    }
}

The Command above reads the list of commands to chain together from Sitecore configuration — this is coming from an attribute on the Command’s configuration element which you will see in the configuration file below — and builds up a linked list of ICommandInvoker instances via the GetCommandInvoker() method.

The QueryState() method simply checks to see if the linked list of ICommandInvoker instances can be invoked, and the Execute() — which also performs the same check as is done in the QueryState() method — ultimately calls the Invoke() method on the first ICommandInvoker instance — this will cascade throughout the entire linked list.

I then wired everything up in the following Sitecore configuration file:

<?xml version="1.0" encoding="utf-8" ?>
<configuration xmlns:patch="http://www.sitecore.net/xmlconfig/">
  <sitecore>
    <commands>
      <command name="item:MoveRenamePublish" parameters="commands=item:moveto|item:rename|item:publish&amp;delimiters=|"  type="Sitecore.Sandbox.Shell.Framework.Commands.ChainOfResponsibilityCommand, Sitecore.Sandbox"/>
      <command name="item:MoveLastPublish" parameters="commands=item:movelast|item:publish&amp;delimiters=|"  type="Sitecore.Sandbox.Shell.Framework.Commands.ChainOfResponsibilityCommand, Sitecore.Sandbox"/>
    </commands>
    <commandInvokers>
      <defaultCommandInvoker type="Sitecore.Sandbox.Invokers.Commands.CommandInvoker, Sitecore.Sandbox" singleInstance="false" />
      <nullCommandInvoker type="Sitecore.Sandbox.Invokers.Commands.NullCommandInvoker, Sitecore.Sandbox" singleInstance="false" />
    </commandInvokers>
  </sitecore>
</configuration>

I defined two different commands in the above configuration file to test whether the ChainOfResponsibilityCommand class can be reused for multiple Sheer UI commands.

I then set up two different buttons in the ribbon for the two command elements in the configuration file above:

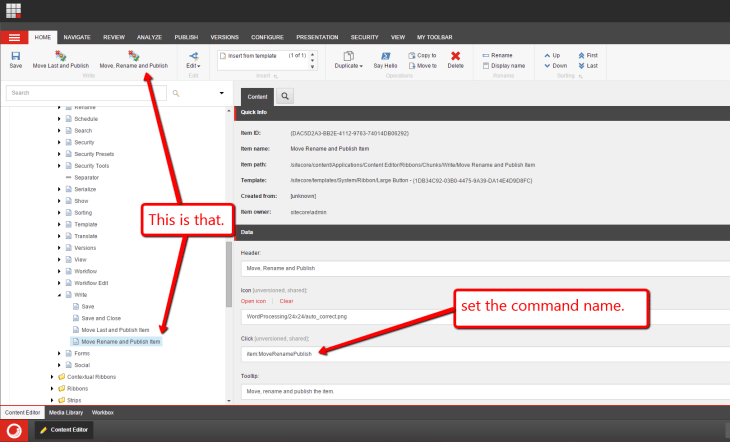

item:MoveRenamePublish:

move-rename-publish-ribbon-core

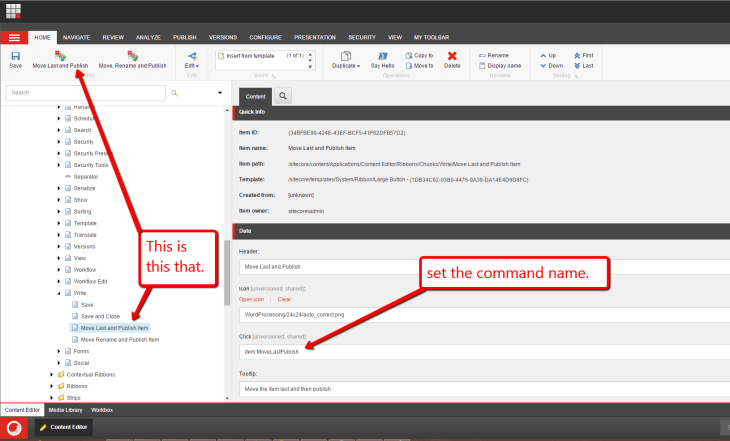

item:MoveLastPublish:

move-last-publish-ribbon-core

Let’s take this for a spin.

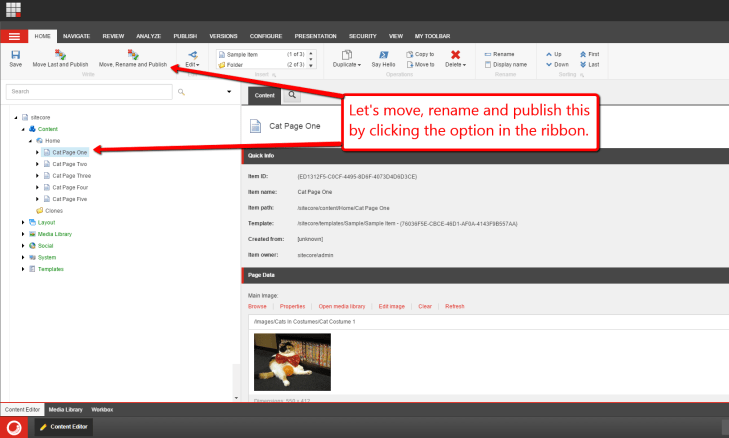

Let’s move, rename and publish the following Sitecore Item:

cat-page-one-move-rename-publish-1

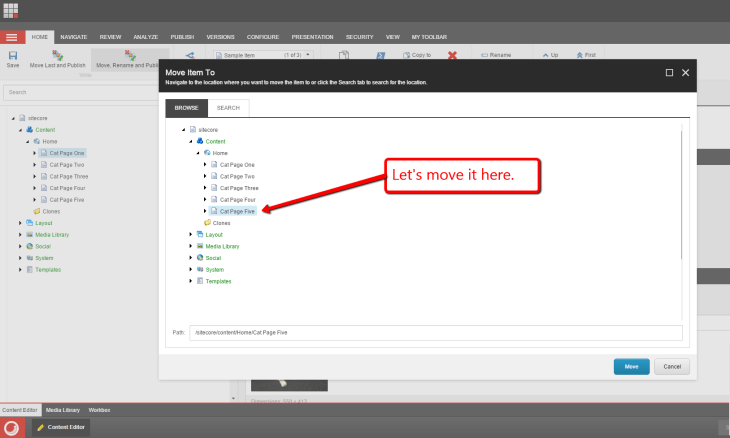

I clicked the button, and was presented with this dialog:

cat-page-one-move-rename-publish-2

I was then prompted with this dialog after the Item was moved to the selected destination:

cat-page-one-move-rename-publish-3

I renamed the Item, and was prompted with the publishing dialog:

cat-page-one-move-rename-publish-4

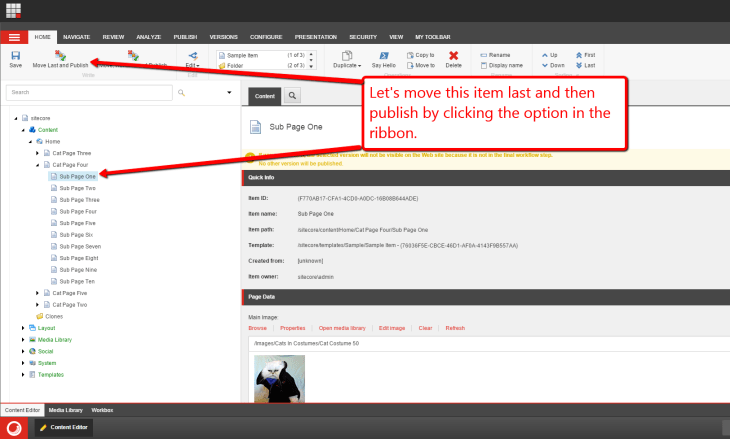

Ok, that appears to be working. Let’s try out the other Ribbon button. Let’s try it on this Item:

sub-page-one-move-last-publish-1

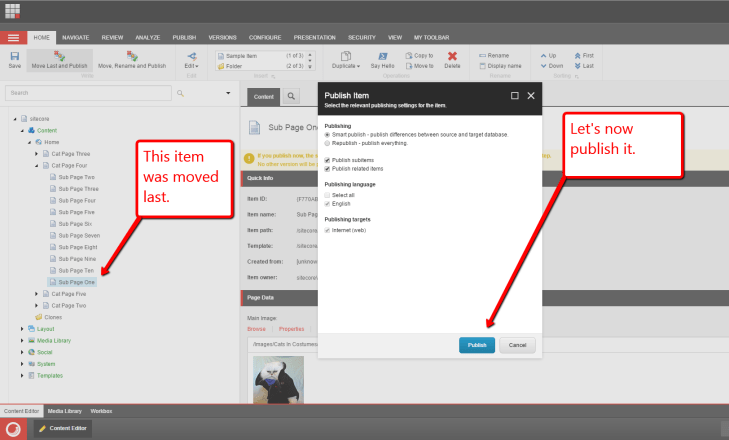

After the Item was moved, I was prompted with the publishing dialog:

sub-page-one-move-last-publish-2

As you can see, this worked as well.

I will say that although I had fun implementing this solution, it is way more complex than the solution I had built over two years ago in my older post.

This brings up an important point I want to make regarding design patterns: don’t use a design pattern because it may seem like a cool thing to do, or because your crazy developer cousin who always carries around a copy of the Gang Of Four book on design patterns says all solutions should implement them always.

Use them wisely.

if you see an opportunity to use one where it will save time when introducing new features moving forward, or it makes it easy to swap-in/out features, then by all means go for it. Otherwise, the KISS principle is a better “rule of thumb” to follow.

If you have any thoughts on this, please drop a comment.
