Have a Field Day With Custom Sitecore Fields

Sitecore Technology MVP 2016
Sitecore MVP 2015
Sitecore MVP 2014

Enter your email address to follow this blog and receive notifications of new posts by email.

Tweets

This week, I’ve been off from work, and have been spending most of my downtime experimenting with Sitecore-ry development things — no, not you Mike — primarily poking around the core database to find things I can override or extend — for a thought provoking article about whether to override or extend things in Sitecore, check out John West’s blog post on this topic — and decided get my hands dirty by creating a custom Sitecore field.

This is something I feel isn’t being done enough by developers out in the wild — myself included — so I decided to take a stab at it, and share how you could go about accomplishing this.

The first field I created was a custom Single-Line Text field with a clear button. Since the jQuery library is available in the Sitecore client, I utilized a jQuery plugin to help me with this. It’s not a very robust plugin — I did have to make a couple of changes due to issues I encountered which I will omit from this article — albeit the purpose of me creating this field was to see how difficult it truly is.

As you can see below, creating a custom Single-Line Text isn’t difficult at all. All one has to do is subclass Sitecore.Shell.Applications.ContentEditor.Text in Sitecore.Kernel.dll, and ultimately override the DoRender() method:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web.UI;
using System.Web;

namespace Sitecore.Sandbox.Shell.Applications.ContentEditor
{
    public class ClearableSingleLineText : Sitecore.Shell.Applications.ContentEditor.Text
    {
        protected override void DoRender(HtmlTextWriter output)
        {
            SetWidthAndHeightStyle();
            RenderMyHtml(output);
            RenderChildren(output);
            RenderAutoSizeJavascript(output);
        }

        private void RenderMyHtml(HtmlTextWriter output)
        {
            const string htmlFormat = "<input{0}/>";
            output.Write(string.Format(htmlFormat, ControlAttributes));
        }

        private void RenderAutoSizeJavascript(HtmlTextWriter output)
        {
			/* I'm calling the jQuery() function directly since $() is defined for prototype.js in the Sitecore client */
            const string jsFormat = "<script type=\"text/javascript\">jQuery('#{0}').clearable();</script>";
            output.Write(string.Format(jsFormat, ID));
        }
    }
}

I then added a script reference to the jQuery plugin above, and embedded some css in /sitecore/shell/Applications/Content Manager/Default.aspx:

<script type="text/javaScript" language="javascript" src="/sitecore/shell/Controls/Lib/jQuery/jquery.clearable.js"></script>

<style type="text/css">
/* Most of this css was provided by the jquery.clearable plugin author */
a.clearlink
{
	background: url("/img/close-button.png") no-repeat scroll 0 0 transparent;
	background-position: center center;
	cursor: pointer;
	display: -moz-inline-stack;
	display: inline-block;
	zoom:1;
	*display:inline;
	height: 12px;
	width: 12px;
	z-index: 2000;
	border: 0px solid;
	position: relative;
	top: -18px;
	left: -5px;
	float: right;
}

a.clearlink:hover
{
	background: url("/img/close-button.png") no-repeat scroll -12px 0 transparent;
	background-position: center center;
}
</style>

What I did above doesn’t sit well with me. If a future version of Sitecore makes any changes to this .aspx, these changes might be lost (well, hopefully you would keep a copy of this file in a source control system somewhere).

However, I could not think of a better way of adding this javascript and css. If you know of a better way, please leave a comment.

I then defined my library of controls for my custom fields — not much of a library, since I only defined one field so far 🙂 — in a new patch config file /App_Config/Include/CustomFields.config:

<?xml version="1.0" encoding="utf-8"?>
<configuration xmlns:patch="http://www.sitecore.net/xmlconfig/">
	<sitecore>
		<controlSources>
			<source mode="on" namespace="Sitecore.Sandbox.Shell.Applications.ContentEditor" assembly="Sitecore.Sandbox" prefix="contentcustom"/>
		</controlSources>
	  </sitecore>
</configuration>

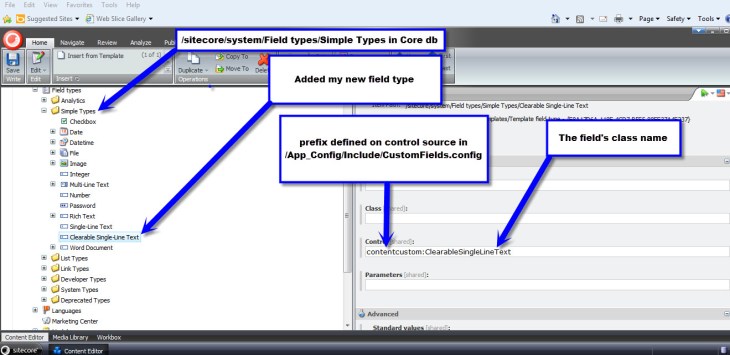

In the core database, I created a new field type for my custom Single-Line Text:

clearable single-line text field type

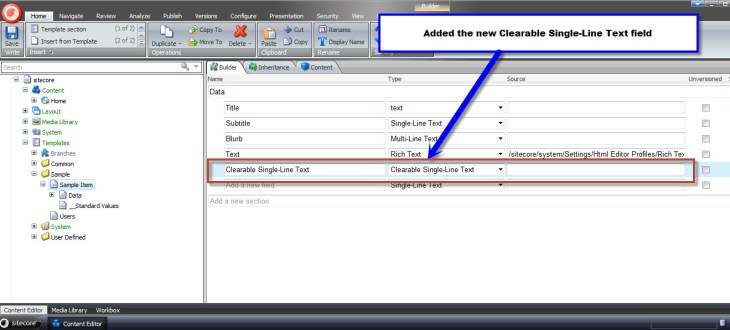

I then added a new field to my template using this new custom field definition in my master database:

added clearable single-line text field

Let’s see this new custom field in action.

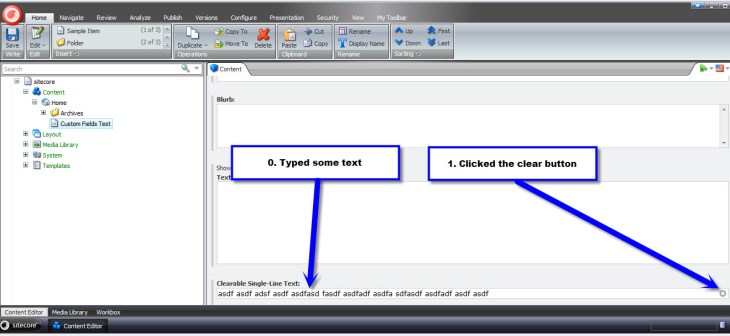

I typed in some text on my item, followed by clicking the clear button:

clearable single-line text field test 1

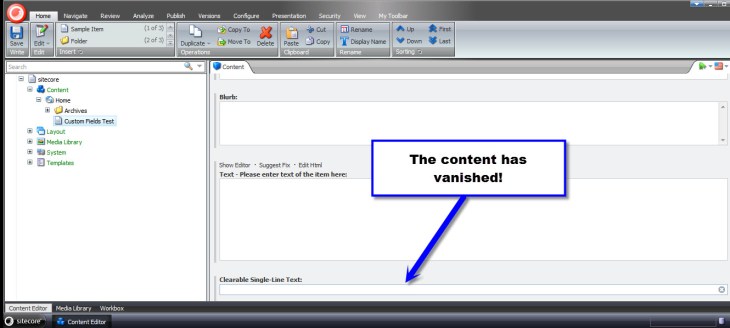

As expected, the text that I had typed was removed from the field:

clearable single-line text field test 2

After having done the above, I wanted to see if I could create a different type of custom field — creating a custom Text field was way too easy, and I wanted something more challenging. I figured creating a custom Multilist field might offer a challenge, so I decided to give it a go.

What I came up with was a custom Multilist field containing Sitecore users, instead of Items as options. I don’t know if there is any practicality in creating such a field, but I decided to go with it just for the purpose of creating a custom Multilist field.

First, I created a class to delegate responsibility for getting selected/unselected users in my field — I creating this class just in case I ever wanted to reuse this in a future custom field that should also contain Sitecore users.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;

using Sitecore.Security.Accounts;

namespace Sitecore.Sandbox.Shell.Applications.ContentEditor.Base
{
    public interface IUsersField
    {
        IEnumerable<User> GetSelectedUsers();

        IEnumerable<User> GetUnselectedUsers();

        string GetProviderUserKey(User user);
    }
}
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Web.Security;

using Sitecore.Configuration;
using Sitecore.Diagnostics;
using Sitecore.Security.Accounts;
using Sitecore.Text;

using Sitecore.Sandbox.Shell.Applications.ContentEditor.Base;

namespace Sitecore.Sandbox.Shell.Applications.ContentEditor
{
    public class UsersField : IUsersField
    {
        private static readonly string DomainParameterName = Settings.GetSetting("UsersField.DomainParameterName");

        private ListString _SelectedUsers;
        private ListString SelectedUsers
        {
            get
            {
                if (_SelectedUsers == null)
                {
                    _SelectedUsers = new ListString(Value);
                }

                return _SelectedUsers;
            }
        }

        private IEnumerable<User> _UsersInDomain;
        private IEnumerable<User> UsersInDomain
        {
            get
            {
                if (_UsersInDomain == null)
                {
                    _UsersInDomain = GetUsersInDomain();
                }

                return _UsersInDomain;
            }
        }

        private IEnumerable<User> _Users;
        private IEnumerable<User> Users
        {
            get
            {
                if(_Users == null)
                {
                    _Users = GetUsers();
                }

                return _Users;
            }
        }

        private string _Domain;
        private string Domain
        {
            get
            {
                if (string.IsNullOrEmpty(_Domain))
                {
                    _Domain = FieldSettings[DomainParameterName];
                }

                return _Domain;
            }
        }

        private UrlString _FieldSettings;
        private UrlString FieldSettings
        {
            get
            {
                if (_FieldSettings == null)
                {
                    _FieldSettings = GetFieldSettings();
                }

                return _FieldSettings;
            }
        }

        private string Source { get; set; }
        private string Value { get; set; }

        private UsersField(string source, string value)
        {
            SetSource(source);
            SetValue(value);
        }

        private void SetSource(string source)
        {
            Source = source;
        }

        private void SetValue(string value)
        {
            Value = value;
        }

        private IEnumerable<User> GetUsersInDomain()
        {
            if (!string.IsNullOrEmpty(Domain))
            {
                return Users.Where(user => IsUserInDomain(user, Domain));
            }

            return Users;
        }

        private static IEnumerable<User> GetUsers()
        {
            IEnumerable<User> users = UserManager.GetUsers();

            if (users != null)
            {
                return users;
            }

            return new List<User>();
        }

        private static bool IsUserInDomain(User user, string domain)
        {
            Assert.ArgumentNotNull(user, "user");
            Assert.ArgumentNotNullOrEmpty(domain, "domain");

            string userNameLowerCase = user.Profile.UserName.ToLower();
            string domainLowerCase = domain.ToLower();

            return userNameLowerCase.StartsWith(domainLowerCase);
        }

        private UrlString GetFieldSettings()
        {
            try
            {
                if (!string.IsNullOrEmpty(Source))
                {
                    return new UrlString(Source);
                }
            }
            catch (Exception ex)
            {
                Log.Error(this.ToString(), ex, this);
            }

            return new UrlString();
        }

        public IEnumerable<User> GetSelectedUsers()
        {
            IList<User> selectedUsers = new List<User>();

            foreach (string providerUserKey in SelectedUsers)
            {
                User selectedUser = UsersInDomain.Where(user => GetProviderUserKey(user) == providerUserKey).FirstOrDefault();
                if (selectedUser != null)
                {
                    selectedUsers.Add(selectedUser);
                }
            }

            return selectedUsers;
        }

        public IEnumerable<User> GetUnselectedUsers()
        {
            IList<User> unselectedUsers = new List<User>();

            foreach (User user in UsersInDomain)
            {
                if (!IsUserSelected(user))
                {
                    unselectedUsers.Add(user);
                }
            }

            return unselectedUsers;
        }

        private bool IsUserSelected(User user)
        {
            string providerUserKey = GetProviderUserKey(user);
            return IsUserSelected(providerUserKey);
        }

        private bool IsUserSelected(string providerUserKey)
        {
            return SelectedUsers.IndexOf(providerUserKey) > -1;
        }

        public string GetProviderUserKey(User user)
        {
            Assert.ArgumentNotNull(user, "user");
            MembershipUser membershipUser = Membership.GetUser(user.Profile.UserName);
            return membershipUser.ProviderUserKey.ToString();
        }

        public static IUsersField CreateNewUsersField(string source, string value)
        {
            return new UsersField(source, value);
        }
    }
}

I then modified my patch config file defined above (/App_Config/Include/CustomFields.config) with a new setting — a setting that specifies the parameter name for filtering on users’ Sitecore domain:

<?xml version="1.0" encoding="utf-8"?>
<configuration xmlns:patch="http://www.sitecore.net/xmlconfig/">
	<sitecore>
		<controlSources>
			<source mode="on" namespace="Sitecore.Sandbox.Shell.Applications.ContentEditor" assembly="Sitecore.Sandbox" prefix="contentcustom"/>
		</controlSources>
		<settings>
			<!-- Parameter name for users' Sitecore domain -->
			<setting name="UsersField.DomainParameterName" value="Domain" />
		</settings>
	  </sitecore>
</configuration>

I then created a new subclass of Sitecore.Shell.Applications.ContentEditor.MultilistEx — I ascertained this to be the class used by the Multilist field in Sitecore by looking at /sitecore/system/Field types/List Types/Multilist field type in the core database:

using System;
using System.Collections;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Web.Security;
using System.Web.UI;

using Sitecore.Configuration;
using Sitecore.Diagnostics;
using Sitecore.Globalization;
using Sitecore.Resources;
using Sitecore.Security.Accounts;
using Sitecore.Shell.Applications.ContentEditor;
using Sitecore.Text;

using Sitecore.Sandbox.Shell.Applications.ContentEditor.Base;

namespace Sitecore.Sandbox.Shell.Applications.ContentEditor
{
    public class UsersMultilist : MultilistEx
    {
        private IUsersField _UsersField;
        private IUsersField UsersField
        {
            get
            {
                if (_UsersField == null)
                {
                    _UsersField = CreateNewUsersField();
                }

                return _UsersField;
            }
        }

        public UsersMultilist()
        {
        }

        protected override void DoRender(HtmlTextWriter output)
        {
            Assert.ArgumentNotNull(output, "output");

            SetIDProperty();
            string disabledAttribute = string.Empty;

            if (ReadOnly)
            {
                disabledAttribute = " disabled=\"disabled\"";
            }

            output.Write(string.Format("<input id=\"{0}_Value\" type=\"hidden\" value=\"{1}\" />", ID, StringUtil.EscapeQuote(Value)));
            output.Write(string.Format("<table{0}>", GetControlAttributes()));
            output.Write("<tr>");
            output.Write(string.Format("<td class=\"scContentControlMultilistCaption\" width=\"50%\">{0}</td>", GetAllLabel()));
            output.Write(string.Format("<td width=\"20\">{0}</td>", Images.GetSpacer(20, 1)));
            output.Write(string.Format("<td class=\"scContentControlMultilistCaption\" width=\"50%\">{0}</td>", GetSelectedLabel()));
            output.Write(string.Format("<td width=\"20\">{0}</td>", Images.GetSpacer(20, 1), "</td>"));
            output.Write("</tr>");
            output.Write("<tr>");
            output.Write("<td valign=\"top\" height=\"100%\">");
            output.Write(string.Format("<select id=\"{0}_unselected\" class=\"scContentControlMultilistBox\" multiple=\"multiple\"{1} size=\"10\" ondblclick=\"javascript:scContent.multilistMoveRight('{2}')\" onchange=\"javascript:document.getElementById('{3}_all_help').innerHTML=this.selectedIndex>=0?this.options[this.selectedIndex].innerHTML:''\">", ID, disabledAttribute, ID, ID));

            IEnumerable<User> unselectedUsers = GetUnselectedUsers();
            foreach (User unselectedUser in unselectedUsers)
            {
                output.Write(string.Format("<option value=\"{0}\">{1}</option>", GetProviderUserKey(unselectedUser), unselectedUser.Profile.UserName));
            }

            output.Write("</select>");
            output.Write("</td>");
            output.Write("<td valign=\"top\">");
            RenderButton(output, "Core/16x16/arrow_blue_right.png", string.Format("javascript:scContent.multilistMoveRight('{0}')", ID));
            output.Write("<br />");
            RenderButton(output, "Core/16x16/arrow_blue_left.png", string.Format("javascript:scContent.multilistMoveLeft('{0}')", ID));
            output.Write("</td>");
            output.Write("<td valign=\"top\" height=\"100%\">");
            output.Write(string.Format("<select id=\"{0}_selected\" class=\"scContentControlMultilistBox\" multiple=\"multiple\"{1} size=\"10\" ondblclick=\"javascript:scContent.multilistMoveLeft('{2}')\" onchange=\"javascript:document.getElementById('{3}_selected_help').innerHTML=this.selectedIndex>=0?this.options[this.selectedIndex].innerHTML:''\">", ID, disabledAttribute, ID, ID));

            IEnumerable<User> selectedUsers = GetSelectedUsers();
            foreach (User selectedUser in selectedUsers)
            {
                output.Write(string.Format("<option value=\"{0}\">{1}</option>", GetProviderUserKey(selectedUser), selectedUser.Profile.UserName));
            }

            output.Write("</select>");
            output.Write("</td>");
            output.Write("<td valign=\"top\">");
            RenderButton(output, "Core/16x16/arrow_blue_up.png", string.Format("javascript:scContent.multilistMoveUp('{0}')", ID));
            output.Write("<br />");
            RenderButton(output, "Core/16x16/arrow_blue_down.png", string.Format("javascript:scContent.multilistMoveDown('{0}')", ID));
            output.Write("</td>");
            output.Write("</tr>");
            output.Write("<tr>");
            output.Write("<td valign=\"top\">");
            output.Write(string.Format("<div style=\"border:1px solid #999999;font:8pt tahoma;padding:2px;margin:4px 0px 4px 0px;height:14px\" id=\"{0}_all_help\"></div>", ID));
            output.Write("</td>");
            output.Write("<td></td>");
            output.Write("<td valign=\"top\">");
            output.Write(string.Format("<div style=\"border:1px solid #999999;font:8pt tahoma;padding:2px;margin:4px 0px 4px 0px;height:14px\" id=\"{0}_selected_help\"></div>", ID));
            output.Write("</td>");
            output.Write("<td></td>");
            output.Write("</tr>");
            output.Write("</table>");
        }

        protected void SetIDProperty()
        {
            ServerProperties["ID"] = ID;
        }

        protected static string GetAllLabel()
        {
            return GetLabel("All");
        }

        protected static string GetSelectedLabel()
        {
            return GetLabel("Selected");
        }

        protected static string GetLabel(string key)
        {
            return Translate.Text(key);
        }

        protected IEnumerable<User> GetSelectedUsers()
        {
            return UsersField.GetSelectedUsers();
        }

        protected IEnumerable<User> GetUnselectedUsers()
        {
            return UsersField.GetUnselectedUsers();
        }

        protected string GetProviderUserKey(User user)
        {
            return UsersField.GetProviderUserKey(user);
        }

        // Method "borrowed" from MultilistEx control
        protected void RenderButton(HtmlTextWriter output, string icon, string click)
        {
            Assert.ArgumentNotNull(output, "output");
            Assert.ArgumentNotNull(icon, "icon");
            Assert.ArgumentNotNull(click, "click");
            ImageBuilder builder = new ImageBuilder
            {
                Src = icon,
                Width = 0x10,
                Height = 0x10,
                Margin = "2px"
            };
            if (!ReadOnly)
            {
                builder.OnClick = click;
            }
            output.Write(builder.ToString());
        }

        private IUsersField CreateNewUsersField()
        {
            return ContentEditor.UsersField.CreateNewUsersField(Source, Value);
        }
    }
}

Overriding the DoRender() method paved the way for me to insert my custom Multilist options — options containg Sitecore users. Selected users will be saved as a pipe delimitered list of ASP.NET Membership UserIDs.

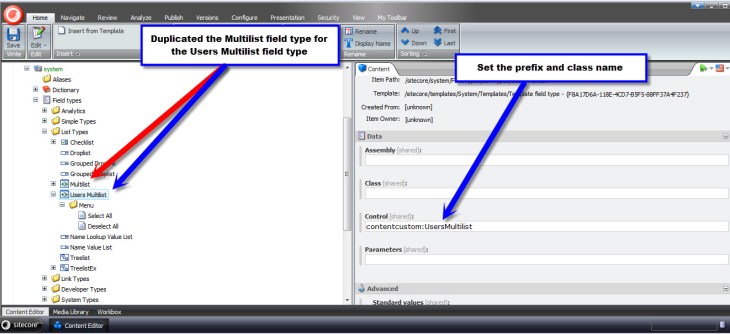

As I had done for my custom Single-Line Text above, I defined my custom Multilist field in the core database:

Users Multilist field type

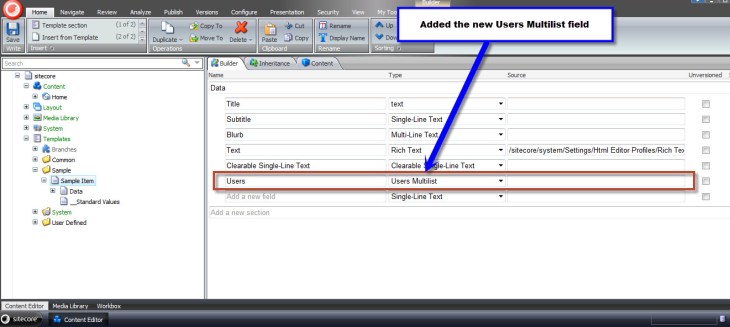

In the master database, I added a new field to my template using this new field type:

added users multilist field

Now, let’s take this custom field for a test drive.

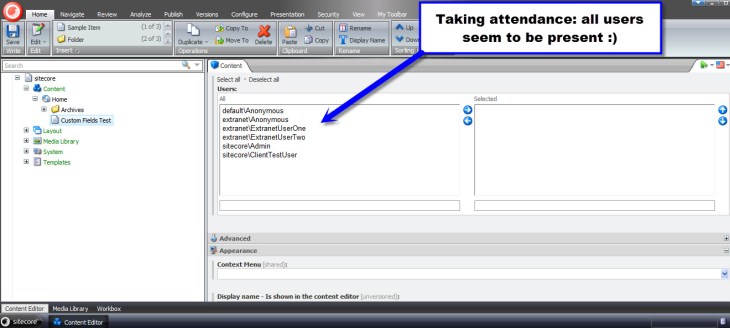

I went back to my item and saw that all Sitecore users were available for selection in my new field:

users multilist field test 1

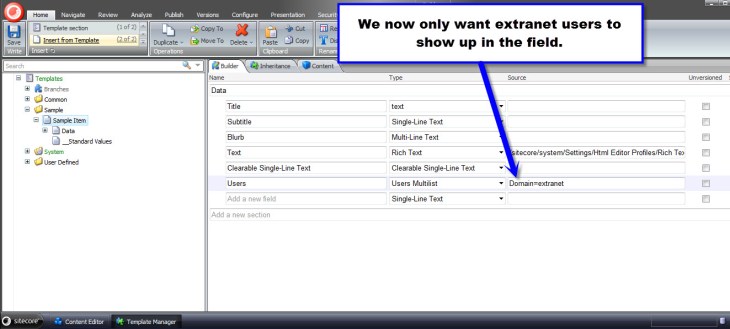

Facetiously imagine that a project manager has just run up to you anxiously lamenting — while breathing rapidly and sweating copiously — we cannot show users in the sitecore domain in our field, only those within the extranet domain — to do so will taint our credibility with our clients as Sitecore experts :). You then put on your superhero cape and proudly proclaim “rest assured, we’ve already baked this domain filtering functionality into our custom Multilist field!”:

users multilist field test 2

I saved my template and navigated back to my item:

users multilist field test 3

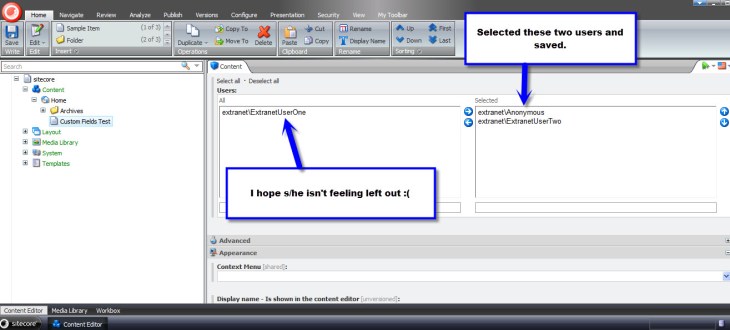

I selected a couple of users and saved:

users multilist field test 4

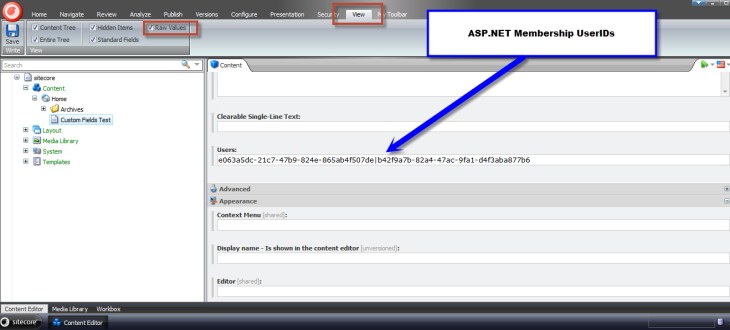

I see their Membership UserIDs are being saved as designed:

users multilist field test 5

My intent on creating the above custom fields was to showcase that the option to create your own fields exists in Sitecore. Why not have yourself a field day by creating your own? 🙂

Advertisements

1 Comment

  1. […] Multilist of Sitecore Users – A blog post by Mike Reynolds showing an example of how to create a custom multilist field. His example shows how to create a multilist field of users that can be filtered by domain (As well as a simple example of customizing the single-line text field). […]

Comment

Fill in your details below or click an icon to log in:

WordPress.com Logo

You are commenting using your WordPress.com account. Log Out / Change )

Twitter picture

You are commenting using your Twitter account. Log Out / Change )

Facebook photo

You are commenting using your Facebook account. Log Out / Change )

Google+ photo

You are commenting using your Google+ account. Log Out / Change )

Connecting to %s

%d bloggers like this:
