Utilize the Strategy Design Pattern for Content Editor Warnings in Sitecore

Sitecore Technology MVP 2016
Sitecore MVP 2015
Sitecore MVP 2014

Enter your email address to follow this blog and receive notifications of new posts by email.

This post is a continuation of a series of posts I’m putting together around using design patterns in Sitecore implementations, and will show a “proof of concept” around using the Strategy pattern — a pattern where a family of “algorithms” (for simplicity you can think of these as classes that implement the same interface) which should be interchangeable when used by client code, and such holds true even when each do something completely different than others within the same family.

The Strategy pattern can serve as an alternative to the Template method pattern — a pattern where classes have an abstract base class that defines most of an “algorithm” for how classes that inherit from it work but provides method stubs (abstract methods) and method hooks (virtual methods) for subclasses to implement or override — and will prove this in this post by providing an alternative solution to the one I had shown in my previous post on the Template method pattern.

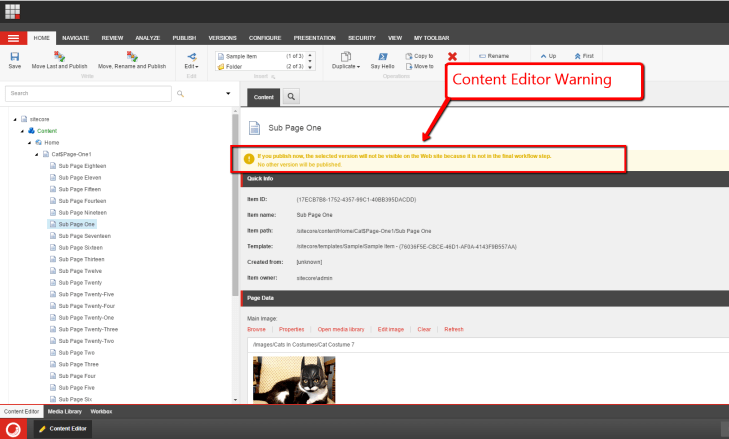

In this “proof of concept”, I will be adding a processor to the <getContentEditorWarnings> pipeline in order to add custom content editor warnings for Items — if you are unfamiliar with content editor warnings in Sitecore, the following screenshot illustrates an “out of the box” content editor warning around publishing and workflow state:

content-editor-warning-example

To start, I am reusing the following interface and classes from my previous post on the Template method pattern:

using System.Collections.Generic;

namespace Sitecore.Sandbox.Pipelines.GetContentEditorWarnings
{
    public interface IWarning
    {
        string Title { get; set; }

        string Message { get; set; }

        List<CommandLink> Links { get; set; }

        bool HasContent();

        IWarning Clone();
    }
}

Warnings will have a title, an error message for display, and a list of Sheer UI command links — the CommandLink class is defined further down in this post — to be displayed and invoked when clicked.

You might be asking why I am defining this when I can just use what’s available in the Sitecore API? Well, I want to inject these values via the Sitecore Configuration Factory, and hopefully this will become clear once you have a look at the Sitecore configuration file further down in this post.

Next, we have a class that implements the interface above:

using System.Collections.Generic;

namespace Sitecore.Sandbox.Pipelines.GetContentEditorWarnings
{
    public class Warning : IWarning
    {
        public string Title { get; set; }

        public string Message { get; set; }

        public List<CommandLink> Links { get; set; }

        public Warning()
        {
            Links = new List<CommandLink>();
        }

        public bool HasContent()
        {
            return !string.IsNullOrWhiteSpace(Title)
                    || !string.IsNullOrWhiteSpace(Title)
                    || !string.IsNullOrWhiteSpace(Message);
        }

        public IWarning Clone()
        {
            IWarning clone = new Warning { Title = Title, Message = Message };
            foreach (CommandLink link in Links)
            {
                clone.Links.Add(new CommandLink { Text = link.Text, Command = link.Command });
            }

            return clone;
        }
    }
}

The HasContent() method just returns “true” if the instance has any content to display though this does not include CommandLinks — what’s the point in displaying these if there is no warning content to be displayed with them?

The Clone() method makes a new instance of the Warning class, and copies values into it — this is useful when defining tokens in strings that must be expanded before being displayed. If we expand them on the instance that is injected via the Sitecore Configuration Factory, the changed strings will persistent in memory until the application pool is recycled for the Sitecore instance.

The following class represents a Sheer UI command link to be displayed in the content editor warning so content editors/authors can take action on the warning:


namespace Sitecore.Sandbox.Pipelines.GetContentEditorWarnings
{
    public class CommandLink
    {
        public string Text { get; set; }

        public string Command { get; set; }
    }
}

The Strategy pattern calls for a family of “algorithms” which can be interchangeably used. In order for us to achieve this, we need to define an interface for this family of “algorithms”:

using System.Collections.Generic;

using Sitecore.Data.Items;

namespace Sitecore.Sandbox.Pipelines.GetContentEditorWarnings.Strategy_Pattern
{
    public interface IWarningsGenerator
    {
        Item Item { get; set; }

        IEnumerable<IWarning> Generate();
    }
}

Next, I created the following class that implements the interface above to ascertain whether a supplied Item has too many child Items:

using System.Collections.Generic;

using Sitecore.Data.Items;
using Sitecore.Diagnostics;

namespace Sitecore.Sandbox.Pipelines.GetContentEditorWarnings.Strategy_Pattern
{
    public class TooManyChildItemsWarningsGenerator : IWarningsGenerator
    {
        private int MaxNumberOfChildItems { get; set; }

        private IWarning Warning { get; set; }

        public Item Item { get; set; }

        public IEnumerable<IWarning> Generate()
        {
            AssertProperties();
            if (Item.Children.Count <= MaxNumberOfChildItems)
            {
                return new List<IWarning>();
            }

            return new[] { Warning };
        }

        private void AssertProperties()
        {
            Assert.ArgumentCondition(MaxNumberOfChildItems > 0, "MaxNumberOfChildItems", "MaxNumberOfChildItems must be set correctly in configuration!");
            Assert.IsNotNull(Warning, "Warning", "Warning must be set in configuration!");
            Assert.ArgumentCondition(Warning.HasContent(), "Warning", "Warning should have some fields populated from configuration!");
            Assert.IsNotNull(Item, "Item", "Item must be set!");
        }
    }
}

The “maximum number of child items allowed” value — this is stored in the MaxNumberOfChildItems integer property of the class — is passed to the class instance via the Sitecore Configuration Factory (you’ll see this defined in the Sitecore configuration file further down in this post).

The IWarning instance that is injected into the instance of this class will give content authors/editors the ability to convert the Item into an Item Bucket when it has too many child Items.

I then defined another class that implements the interface above — a class whose instances determine whether Items have invalid characters in their names:

using System.Collections.Generic;
using System.Linq;

using Sitecore.Data.Items;
using Sitecore.Diagnostics;

namespace Sitecore.Sandbox.Pipelines.GetContentEditorWarnings.Strategy_Pattern
{
    public class HasInvalidCharacetersInNameWarningsGenerator : IWarningsGenerator
    {
        private string CharacterSeparator { get; set; }

        private string Conjunction { get; set; }

        private List<string> InvalidCharacters { get; set; }

        private IWarning Warning { get; set; }

        public Item Item { get; set; }

        public HasInvalidCharacetersInNameWarningsGenerator()
        {
            InvalidCharacters = new List<string>();
        }

        public IEnumerable<IWarning> Generate()
        {
            AssertProperties();
            HashSet<string> charactersFound = new HashSet<string>();
            foreach (string character in InvalidCharacters)
            {
                if (Item.Name.Contains(character))
                {
                    charactersFound.Add(character.ToString());
                }
            }

            if(!charactersFound.Any())
            {
                return new List<IWarning>();
            }

            IWarning warning = Warning.Clone();
            string charactersFoundString = string.Join(CharacterSeparator, charactersFound);
            int lastSeparator = charactersFoundString.LastIndexOf(CharacterSeparator);
            if (lastSeparator < 0)
            {
                warning.Message = ReplaceInvalidCharactersToken(warning.Message, charactersFoundString);
                return new[] { warning };
            }

            warning.Message = ReplaceInvalidCharactersToken(warning.Message, Splice(charactersFoundString, lastSeparator, CharacterSeparator.Length, Conjunction));
            return new[] { warning };
        }

        private void AssertProperties()
        {
            Assert.IsNotNullOrEmpty(CharacterSeparator, "CharacterSeparator", "CharacterSeparator must be set in configuration!");
            Assert.ArgumentCondition(InvalidCharacters != null && InvalidCharacters.Any(), "InvalidCharacters", "InvalidCharacters must be set in configuration!");
            Assert.IsNotNull(Warning, "Warning", "Warning must be set in configuration!");
            Assert.ArgumentCondition(Warning.HasContent(), "Warning", "Warning should have some fields populated from configuration!");
            Assert.IsNotNull(Item, "Item", "Item must be set!");
        }

        private static string Splice(string value, int startIndex, int length, string replacement)
        {
            if(string.IsNullOrWhiteSpace(value))
            {
                return value;
            }

            return string.Concat(value.Substring(0, startIndex), replacement, value.Substring(startIndex + length));
        }

        private static string ReplaceInvalidCharactersToken(string value, string replacement)
        {
            return value.Replace("$invalidCharacters", replacement);
        }
    }
}

The above class will return an IWarning instance when an Item has invalid characters in its name — these invalid characters are defined in Sitecore configuration.

The Generate() method iterates over all invalid characters passed from Sitecore configuration and determines if they exist in the Item name. If they do, they are added to a HashSet<string> instance — I’m using a HashSet<string> to ensure the same character isn’t added more than once to the collection — which is used for constructing the warning message to be displayed to the content author/editor.

Once the Generate() method has iterated through all invalid characters, a string is built using the HashSet<string> instance, and is put in place wherever the $invalidCharacters token is defined in the Message property of the IWarning instance.

Now that we have our family of “algorithms” defined, we need a class to encapsulate and invoke these. I defined the following interface for classes that perform this role:

using System.Collections.Generic;

using Sitecore.Data.Items;

namespace Sitecore.Sandbox.Pipelines.GetContentEditorWarnings.Strategy_Pattern
{
    public interface IWarningsGeneratorContext
    {
        IWarningsGenerator Generator { get; set; }

        IEnumerable<IWarning> GetWarnings(Item item);
    }
}

I then defined the following class which implements the interface above:

using System.Collections.Generic;

using Sitecore.Data.Items;
using Sitecore.Diagnostics;

namespace Sitecore.Sandbox.Pipelines.GetContentEditorWarnings.Strategy_Pattern
{
    public class WarningsGeneratorContext : IWarningsGeneratorContext
    {
        public IWarningsGenerator Generator { get; set; }

        public IEnumerable<IWarning> GetWarnings(Item item)
        {
            Assert.IsNotNull(Generator, "Generator", "Generator must be set!");
            Assert.ArgumentNotNull(item, "item");
            Generator.Item = item;
            return Generator.Generate();
        }
    }
}

Instances of the class above take in an instance of IWarningsGenerator via its Generator property — in a sense, we are “lock and loading” WarningsGeneratorContext instances to get them ready. Instances then pass a supplied Item instance to the IWarningsGenerator instance, and invoke its GetWarnings() method. This method returns a collection of IWarning instances.

In a way, the IWarningsGeneratorContext instances are really adapters for IWarningsGenerator instances — IWarningsGeneratorContext instances provide a bridge for client code to use IWarningsGenerator instances via its own little API.

Now that we have all of the stuff above — yes, I know, there is a lot of code in this post, and we’ll reflect on this at the end of the post — we need a class whose instance will serve as a <getContentEditorWarnings> pipeline processor:

using System.Collections.Generic;
using System.Linq;

using Sitecore.Data.Items;
using Sitecore.Diagnostics;
using Sitecore.Globalization;
using Sitecore.Pipelines.GetContentEditorWarnings;

namespace Sitecore.Sandbox.Pipelines.GetContentEditorWarnings.Strategy_Pattern
{
    public class ContentEditorWarnings
    {
        private List<IWarningsGenerator> WarningsGenerators { get; set; }

        private IWarningsGeneratorContext WarningsGeneratorContext { get; set; }

        public ContentEditorWarnings()
        {
            WarningsGenerators = new List<IWarningsGenerator>();
        }

        public void Process(GetContentEditorWarningsArgs args)
        {
            AssertProperties();
            Assert.ArgumentNotNull(args, "args");
            Assert.ArgumentNotNull(args.Item, "args.Item");

            IEnumerable<IWarning> warnings = GetWarnings(args.Item);
            if(warnings == null || !warnings.Any())
            {
                return;
            }

            foreach(IWarning warning in warnings)
            {
                AddWarning(args, warning);
            }
        }

        private IEnumerable<IWarning> GetWarnings(Item item)
        {
            List<IWarning> warnings = new List<IWarning>();
            foreach(IWarningsGenerator generator in WarningsGenerators)
            {
                IEnumerable<IWarning> generatorWarnings = GetWarnings(generator, item);
                if(generatorWarnings != null && generatorWarnings.Any())
                {
                    warnings.AddRange(generatorWarnings);
                }
            }

            return warnings;
        }

        private IEnumerable<IWarning> GetWarnings(IWarningsGenerator generator, Item item)
        {
            WarningsGeneratorContext.Generator = generator;
            return WarningsGeneratorContext.GetWarnings(item);
        }

        private void AddWarning(GetContentEditorWarningsArgs args, IWarning warning)
        {
            if(!warning.HasContent())
            {
                return;
            }

            GetContentEditorWarningsArgs.ContentEditorWarning editorWarning = args.Add();
            if(!string.IsNullOrWhiteSpace(warning.Title))
            {
                editorWarning.Title = TranslateText(warning.Title);
            }

            if(!string.IsNullOrWhiteSpace(warning.Message))
            {
                editorWarning.Text = TranslateText(warning.Message);
            }

            if (!warning.Links.Any())
            {
                return;
            }

            foreach(CommandLink link in warning.Links)
            {
                editorWarning.AddOption(TranslateText(link.Text), link.Command);
            }
        }

        private string TranslateText(string text)
        {
            if(string.IsNullOrWhiteSpace(text))
            {
                return text;
            }

            return Translate.Text(text);
        }

        private void AssertProperties()
        {
            Assert.IsNotNull(WarningsGeneratorContext, "WarningsGeneratorContext", "WarningsGeneratorContext must be set in configuration!");
            Assert.ArgumentCondition(WarningsGenerators != null && WarningsGenerators.Any(), "WarningsGenerators", "At least one WarningsGenerator must be set in configuration!");
        }
    }
}

The Process() method is the main entry into the pipeline processor. The method delegates to the GetWarnings() method to get a collection of IWarning instances from all IWarningGenerator instances that were injected into the class instance via the Sitecore Configuration Factory.

The GetWarnings() method iterates over all IWarningsGenerator instances, and passes each to the other GetWarnings() method overload which basically sets the IWarningGenerator on the IWarningsGeneratorContext instance, and invokes its GetWarnings() method with the supplied Item instance.

Once all IWarning instances have been collected, the Process() method iterates over the IWarning collection, and adds them to the GetContentEditorWarningsArgs instance via the AddWarning() method.

I then registered everything above in Sitecore using the following Sitecore patch configuration file:

<?xml version="1.0" encoding="utf-8" ?>
<configuration xmlns:patch="http://www.sitecore.net/xmlconfig/">
  <sitecore>
    <pipelines>
      <getContentEditorWarnings>
        <processor type="Sitecore.Sandbox.Pipelines.GetContentEditorWarnings.Strategy_Pattern.ContentEditorWarnings, Sitecore.Sandbox">
          <WarningsGenerators hint="list">
            <WarningsGenerator type="Sitecore.Sandbox.Pipelines.GetContentEditorWarnings.Strategy_Pattern.TooManyChildItemsWarningsGenerator, Sitecore.Sandbox">
              <MaxNumberOfChildItems>20</MaxNumberOfChildItems>
              <Warning type="Sitecore.Sandbox.Pipelines.GetContentEditorWarnings.Warning, Sitecore.Sandbox">
                <Title>This Item has too many child items!</Title>
                <Message>Please consider converting this Item into an Item Bucket.</Message>
                <Links hint="list">
                  <Link type="Sitecore.Sandbox.Pipelines.GetContentEditorWarnings.CommandLink">
                    <Text>Convert to Item Bucket</Text>
                    <Command>item:bucket</Command>
                  </Link>
                </Links>
              </Warning>
            </WarningsGenerator>
            <WarningsGenerator type="Sitecore.Sandbox.Pipelines.GetContentEditorWarnings.Strategy_Pattern.HasInvalidCharacetersInNameWarningsGenerator, Sitecore.Sandbox">
              <CharacterSeparator>,&amp;nbsp;</CharacterSeparator>
              <Conjunction>&amp;nbsp;and&amp;nbsp;</Conjunction>
              <InvalidCharacters hint="list">
                <Character>-</Character>
                <Character>$</Character>
                <Character>1</Character>
              </InvalidCharacters>
              <Warning type="Sitecore.Sandbox.Pipelines.GetContentEditorWarnings.Warning, Sitecore.Sandbox">
                <Title>The name of this Item has invalid characters!</Title>
                <Message>The name of this Item contains $invalidCharacters. Please consider renaming the Item.</Message>
                <Links hint="list">
                  <Link type="Sitecore.Sandbox.Pipelines.GetContentEditorWarnings.CommandLink">
                    <Text>Rename Item</Text>
                    <Command>item:rename</Command>
                  </Link>
                </Links>
              </Warning>
            </WarningsGenerator>
          </WarningsGenerators>
          <WarningsGeneratorContext type="Sitecore.Sandbox.Pipelines.GetContentEditorWarnings.Strategy_Pattern.WarningsGeneratorContext, Sitecore.Sandbox" />
        </processor>
      </getContentEditorWarnings>
    </pipelines>
  </sitecore>
</configuration>

Let’s test this out.

I set up an Item with more than 20 child Items, and gave it a name that includes -, $ and 1 — these are defined as invalid in the configuration file above:

strategy-1

As you can see, both warnings appear on the Item in the content editor.

Let’s convert the Item into an Item Bucket:

strategy-2

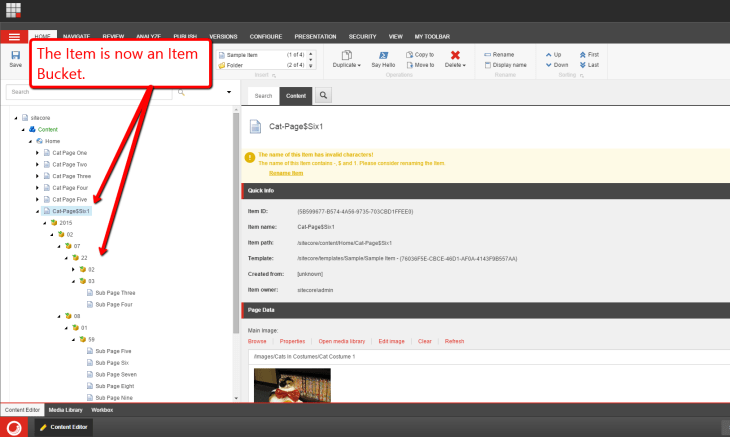

As you can see the Item is now an Item Bucket:

strategy-3

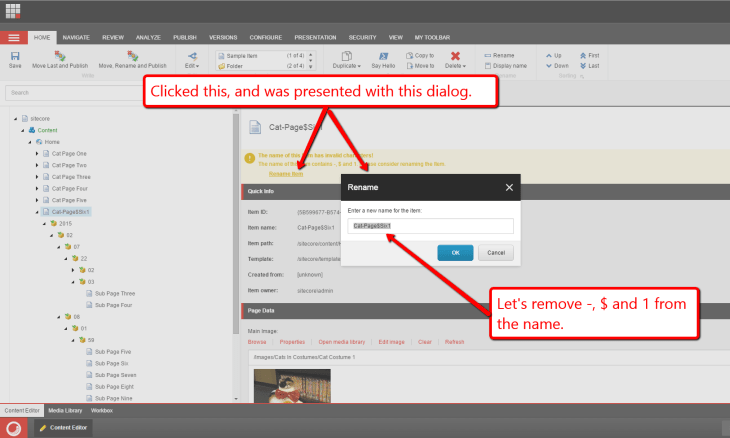

Let’s fix the Item’s name:

strategy-4

The Item’s name is now fixed, and there are no more content editor warnings:

strategy-5

You might be thinking “Mike, that is a lot of code — a significant amount over what you had shown in your previous post where you used the Template method pattern — so why bother with the Strategy pattern?”

Yes, there is more code here, and definitely more moving parts to the Strategy pattern over the Template method pattern.

So, what’s the benefit here?

Well, in the Template method pattern, subclasses are tightly coupled to their abstract base class. A change to the parent class could potentially break code in the subclasses, and this will require code in all subclasses to be changed. This could be quite a task if subclasses are defined in multiple projects that don’t reside in the same solution as the parent class.

The Strategy pattern forces loose coupling among all instances within the pattern thus reducing the likelihood that changes in one class will adversely affect others.

However, with that said, it does add complexity by introducing more code, so you should consider the pros and cons of using the Strategy pattern over the Template method pattern, or perhaps even decide if you should use a pattern to begin with.

Remember, the KISS principle should be followed wherever/whenever possible when designing and developing software.

If you have any thoughts on this, please drop a comment.

Advertisements

1 Comment

  1. […] Strategy Design Pattern: similar to the previous one, it allows you to select the behavior of your classes at runtime. Meaning, this pattern captures the abstraction of your implementation in an interface and make it separate (independent) from clients using it by making the implementation details in the inherited classes. More can be found here. […]

Comment

Fill in your details below or click an icon to log in:

WordPress.com Logo

You are commenting using your WordPress.com account. Log Out / Change )

Twitter picture

You are commenting using your Twitter account. Log Out / Change )

Facebook photo

You are commenting using your Facebook account. Log Out / Change )

Google+ photo

You are commenting using your Google+ account. Log Out / Change )

Connecting to %s

%d bloggers like this:
